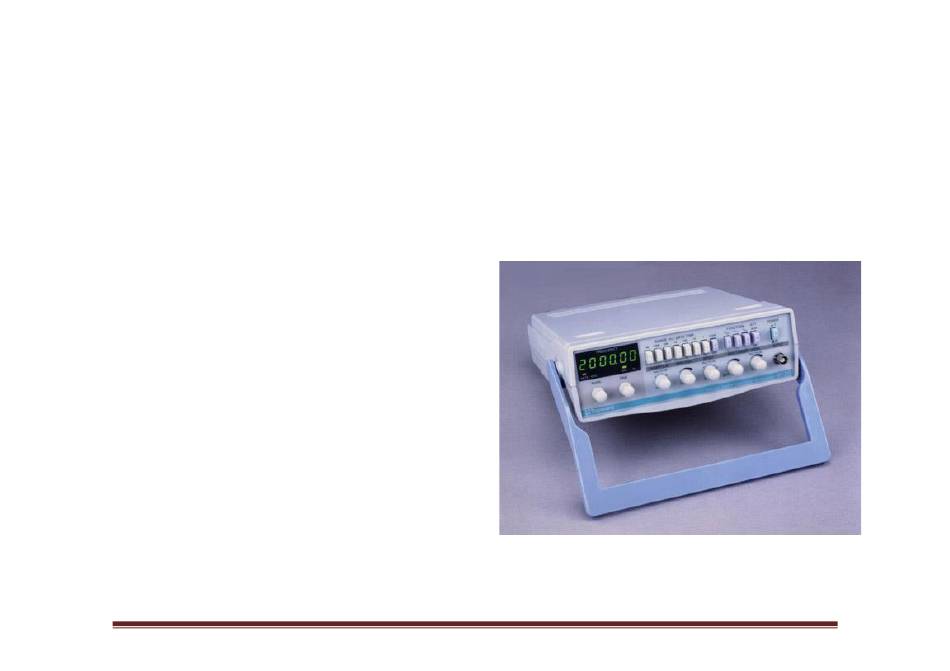

Page 1 PU4ASL Topward 8120 FUNCTION GENERATOR Operation Manual Topward 8120 Página 1...
Page 2: Function Generator
PU4ASL Topward 8120 FUNCTION GENERATOR Copyright Copyright © 1996 by this company. All rights reserved. No part of this publication may be reproduced in any form or by any means without the written permission of this company. Disclaimer This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchant ability or fitness for any particular purpose.
Page 3: Table Of Contents
Voltage Control Frequency ..................10 Frequency Counter ....................10 Sweep ........................10 Operation Cautions ......................14 Maintenance........................15 Cleanness ....................... 15 Changing the Fuse....................15 Changing the Voltage ..................... 16 Environment ......................17 Specifications ........................18 Topward 8120 Página 3...
Page 4: Safety Instruction
Before operating this product, please check the voltage requirements and specifications as described in this operating manual. Proper grounding refers to the proper connection from the grounding point of the power source to the grounding terminal of this product. Topward 8120 Página 4...
Page 5: Safety Symbols
When operating this product, please place it in a well-ventilated environment. Do not place this product in an area that is directly exposed to sunlight or under high humidity. When you need to clean the outer surface of the product, use a clean and dry cloth. Topward 8120 Página 5...
Page 6: Overview
PU4ASL 8120 FUNCTION GENERATOR Overview The 8120 is a portable, bench type mufti-purpose digital function generator / counter capable of producing 6 different waveforms. These are Sine, Square, Triangle, Pulse, Ramp and Sweep. Introduction The 8120 has the following features: Frequency adjustable from 0.1Hz to 2MHz in 7 ranges.
Page 7: Unpacking And Checking
FUNCTION GENERATOR Unpacking and Checking Your 8120 is packed in polyfoam to protect it during shipment. You should keep this material ,as well as the shipping box, in case the unit must be moved or shipped again. The box should include the following items:...
Page 8: Front And Rear Panels
The following is an explanation of the function of each of the front and rear panel controls and connectors. You should refer to Figure 1 & Figure 2 for the location of each control / connector. Front Panel Figure 1 Front Panel Topward 8120 Página 8...
Page 9: Rear Panel
PU4ASL 8120 FUNCTION GENERATOR Rear Panel Figure 2 Rear Panel Topward 8120 Página 9...
Page 10 / ramp waveforms. When the knob is pushed in, the duty cycle is fixed at 50%. When pulled out, the duty cycle is adjustable between 20% and 80%, and the output frequency is unchanged. 6. ATTENUATION Topward 8120 Página 10...
Page 11: Sweep Width
10.1 Sweep width can be controlled from 1 to 1000 times. 10.2 When this knob is pushed in, the sweep is in LINEAR mode. When pulled out, the sweep is in LOG mode. 11. SWEEP RATE Topward 8120 Página 11...
Page 12: Frequency Display
15. SYNC OUT This connector supplies a TTL compatible signal. The output is unaffected by either the FUNCTION (2) or AMPLITUDE (1) controls. The output frequency is the same as the of OUTPUT signal (8). 16. V.C.F. IN Topward 8120 Página 12...
Page 13: Operation
SWEEP WIDTH (10). 19. POWER VOLTAGE SETTING SWITCH There are two power voltages 115V and 230V can be selected. Before applying power to your 8120, make sure that this switch is correctly set for your power source. 20. POWER SOCKET WITH FUSE HOLDER There are two fuses put inside the FUSE HOLDER.
Page 14: Instrument Turn-On
FUNCTION GENERATOR Instrument Turn-on WARNING Before applying power to your 8120, make sure that the POWER VOLTAGE SETTING SWITCH (19) is correctly set for your power source. Main Generator A. Select the desired waveform using the FUNCTION switch (2). To generate a ramp or pulse output, pull out the RAMP / PULSE knob (5) and set to the desired duty cycle.
Page 15: Voltage Control Frequency
The set frequency is the upper frequency of the sweep output. Turn on the SWEEP RATE switch (11) to start the sweep mode. Adjust the sweep rate from 10mS to 5S. Adjust the SWEEP WIDTH switch (10) to set the lower frequency of the sweep output. Topward 8120 Página 15...
Page 16 SWEEP OUT (18) and adjust the SWEEP RATE (11) to meet 500mS. 3. Pull out or push in the SWEEP WIDTH switch (10) to select LOG mode or LINEAR mode. 4. Adjust the SWEEP WIDTH switch (10) to let the waveform sweep from 100Hz to 100KHz. Topward 8120 Página 16...
Page 17 PU4ASL 8120 FUNCTION GENERATOR Sweep Waveform Sweep Out Sweep Time 500mS Topward 8120 Página 17...
Page 18 PU4ASL 8120 FUNCTION GENERATOR Topward 8120 Página 18...
Page 19: Operation Cautions
PU4ASL 8120 FUNCTION GENERATOR Please observe the following when operating your 8120 Function Generator: To assure operation within the published specifications, allow the unit to warm up and stabilize for least 20 minutes. Failure to observe the operating procedure listed below will result in damage to the unit and oid your warranty.
Page 20: Maintenance
In any case, replace the fuse with one of the same rating. Refer to Table 1 for the type of fuse used for different input voltage. NOTE : Unplug the power cord before you change the fuse. Topward 8120 Página 20...
Page 21: Changing The Voltage
Refer to the correct fuse rating on Table 1. Use a flathead screwdriver to open the cover of POWER SOCKET WITH FUSE HOLDER (14) and change the correct fuse. Model Fuse Time-Delay Type 5x20mm 115V 230V 8120 T160mA/250V T125mA/250V Table 1 Fuse Specification Topward 8120 Página 21...
Page 22: Environment
Storage moisture : under 80 We here declare the functional specification for EMS Verification (IEC 801-3) of our 8120 signal generator and 8120 optional counter unsuitable IEC801-3 and EN55011 standards. It should be considered insignificant and acceptable that some disturbance of frequency shift, less than 5% or crosstalk may happen, but self-recoverable.
Page 23: Specifications
80:20 to 20:80 Continuously Variable with 50:50 calibrated switch (Frequency unchanged) Frequency Accuracy Counter accuracy Distortion <1%, 10Hz100KHz Rise / Fall Time <100nS V.C.F. 0 to +5V Control frequency to 1000:1 Safety Requirements Meets IEC-1010-1 (EN 61010-1) EMC Requirements SYNC OUTPUT Rise Time <25nS Topward 8120 Página 23...
Page 24: Sweep Output
Time Base 10MHz 10ppm (23 Resolution 0.1Hz, 1Hz, 10Hz, 100Hz, 1KHz Gate Time 10S, 1S, 0.1S, 0.01S Range 10Hz to 100MHz Sensitivity 25mVrms (10Hz to 10MHz),50mVrms (10MHz to 100MHz) Maximum Input 150Vrms Ë Input Impedance // 100pF Topward 8120 Página 24...
Page 25 FUNCTION GENERATOR POWER ACV 115 / 230, ,60 / 50 Hz DIMENSION Machine (mm) 262(W)x85(H)x260(D) Package (mm) 387(W)x192(H)x347(D) Gross Weight 2.85Kg Net Weight 2.0Kg Accessories ACS-003 BNC to alligator clip cable x 1, Operation manual x 1 Topward 8120 Página 25...
Page 26 PU4ASL Topward 8120 Página 26...
Page 27 PU4ASL Topward 8120 Página 27...
Page 28: Painel Frontal
6 - Chave Atenuadora ( ATT) Quando este botão está desligado, o sinal é passado para a saída inalterado. Se o interruptor for pressionado, o sinal de saída é atenuado em -30dB. 0 dbs -30 dbs Topward 8120 Página 28...
Page 29 LOG. ✓ Botão com a função PULL TO LOG ( ao puxar o botão para fora ativa a função de ajuste) ✓ Ao empurrar o botão para dentro, memoriza a função ajustada Topward 8120 Página 29...
Page 30: Painel Traseiro
19 - Chave seletora de Tensão 115/220V Existem duas tensões de alimentação 115V e 230V que podem ser selecionadas. Antes de aplicar energia ao seu 8120, certifique-se de que esta chave esteja configurada corretamente para sua fonte de energia. 15 - Conector SYNC OUT Este conector fornece um sinal compatível com TTL.
Page 31  50mVrms (10Hz to 100MHz) Sensitivity Frequency Counter 150Vrms Maximum Input Frequency Counter 1MW//100pF Input Impedance Power Requirement 115/230 Vac; 50/60Hz single phase Accessories Supplied Power cord, hook-up leads, intruction manual Dimension 10.2"(W) x 3.3"(H) x 10.1"(D) Weight 4.4 Pounds Topward 8120 Página 31...
