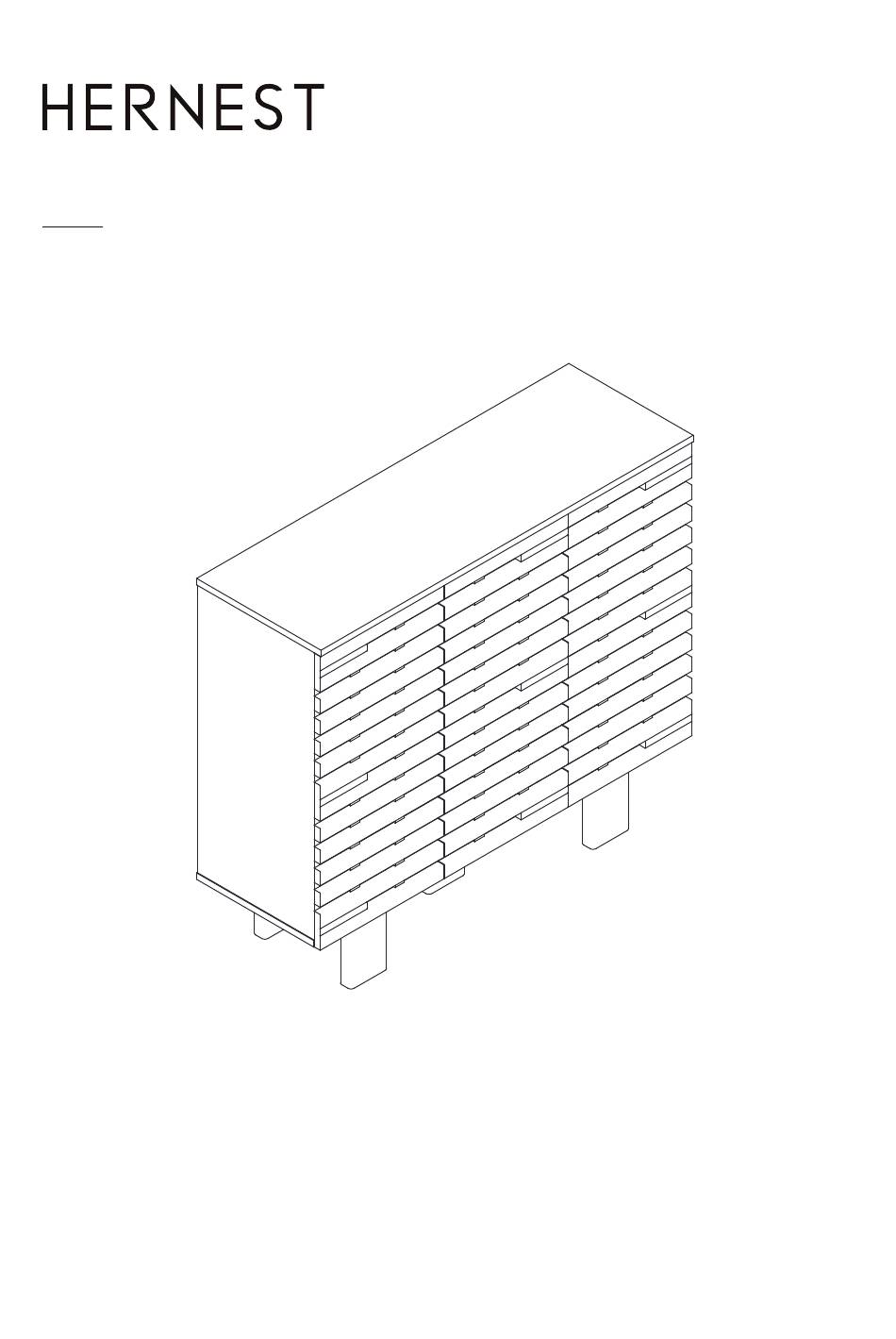

- Page 1 HEFTCT-8027 GZWH Assembly Instructions & Care Guide Illustrations in this guide are for reference only and may differ slightly from the actual product.
-
Page 2: Table Of Contents
CONTENT Before You Start Overview Caution Material Specifications Installation Guide Exploded Views Component Parts Hardware Assembly Directions 05-12 Troubleshoot 13-15 Usage and Maintenance Use and Care Other Help Center... -
Page 3: Before You Start
4. Place all hardware on a soft surface for easy identification. 5. The seller is not responsible for any damage or injury caused by improper assembly or use. 6. If you need further assistance, please contact us through service@hernest.com Caution 1. -
Page 4: Installation Guide
3. Pay attention to tightening the screw rod 4. Installation plate 5. Align the arrow of the eccentric 6. Pay attention to aligning the component with the screw rod arrow of the eccentric part with the screw rod HERNEST I 02... -
Page 5: Component Parts
Component Parts HERNEST I 03... -
Page 6: Hardware
Do not over-tighten screws or use power tools, as this may damage the product. Tools You May Need Persons and Time Needed For Assembly *You might need a screwdriver (+/-) to complete this assembly. People Time Difficulty 2 hours HERNEST I 04... -
Page 7: Assembly Directions
Assembly Directions Step 1 A x4 I x1 Step 2 B x4 HERNEST I 05... - Page 8 Step 3 A x4 B x4 Step 4 A x13 HERNEST I 06...
- Page 9 Step 5 B x4 Step 6 C x20 F x10 K x1 HERNEST I 07...
- Page 10 Step 7 D x16 B x9 Step 8 D x16 HERNEST I 08...
- Page 11 Step 9 A x13 E x6 L x3 Step 10 B x13 HERNEST I 09...
- Page 12 Step 11 E x18 H x9 M x3 N x6 Step 12 E x24 HERNEST I 10...
- Page 13 Step 13 E x12 Step 14 G x4 HERNEST I 11...
- Page 14 Finished! Fantastic, we're nearly there! Please carry out the following checks: 1. Have you tightened all the screws? 2. Are the levelers aligned with and making contact with the ground? 3. Have you installed the anti-tipping kit? HERNEST I 12...
-
Page 15: Troubleshoot
Please sightly loosen all screws and adjust the bards. Because the diameter of the holes on the pipes 23 mm lager than that of bots, the position of the boards can be adjusted. If it is still doesn't work after adjustment, please contact us for more solutions. HERNEST I 13... - Page 16 The hinges shown in the image. The door panel can be moved door panel can be moved door panel can be moved front-back. up-down. left-right. Adjustment range: 4mm Adjustment range: 4mm Adjustment range: 3mm HERNEST I 14...
- Page 17 Adjust the panel Finished door hinges Door Side panel panel The door panels are not coplanar Adjust the Finished door hinges Door panel Door Side panel panel The two door panels are not at the same height HERNEST I 15...
-
Page 18: Usage And Maintenance
Please educate children to stay away from the glass sharp corners of the furniture. When opening and closing doors or drawers, handle them gently and check the screws regularly to tighten them. Use a soft dry cloth to dust, a slightly damp cloth to clean the surface, avoid abrasive cleaners. HERNEST I 16... -
Page 19: Help Center
Treat your furniture with care and follow the maintenance guidelines. In return, your furniture will provide you with lasting comfort and support. For any additional inquiries or assistance, please do not hesitate to contact us at https://www.hernest.com/ help Inquiry Assembly issue Missing parts Returns&Refunds...
