Page 2

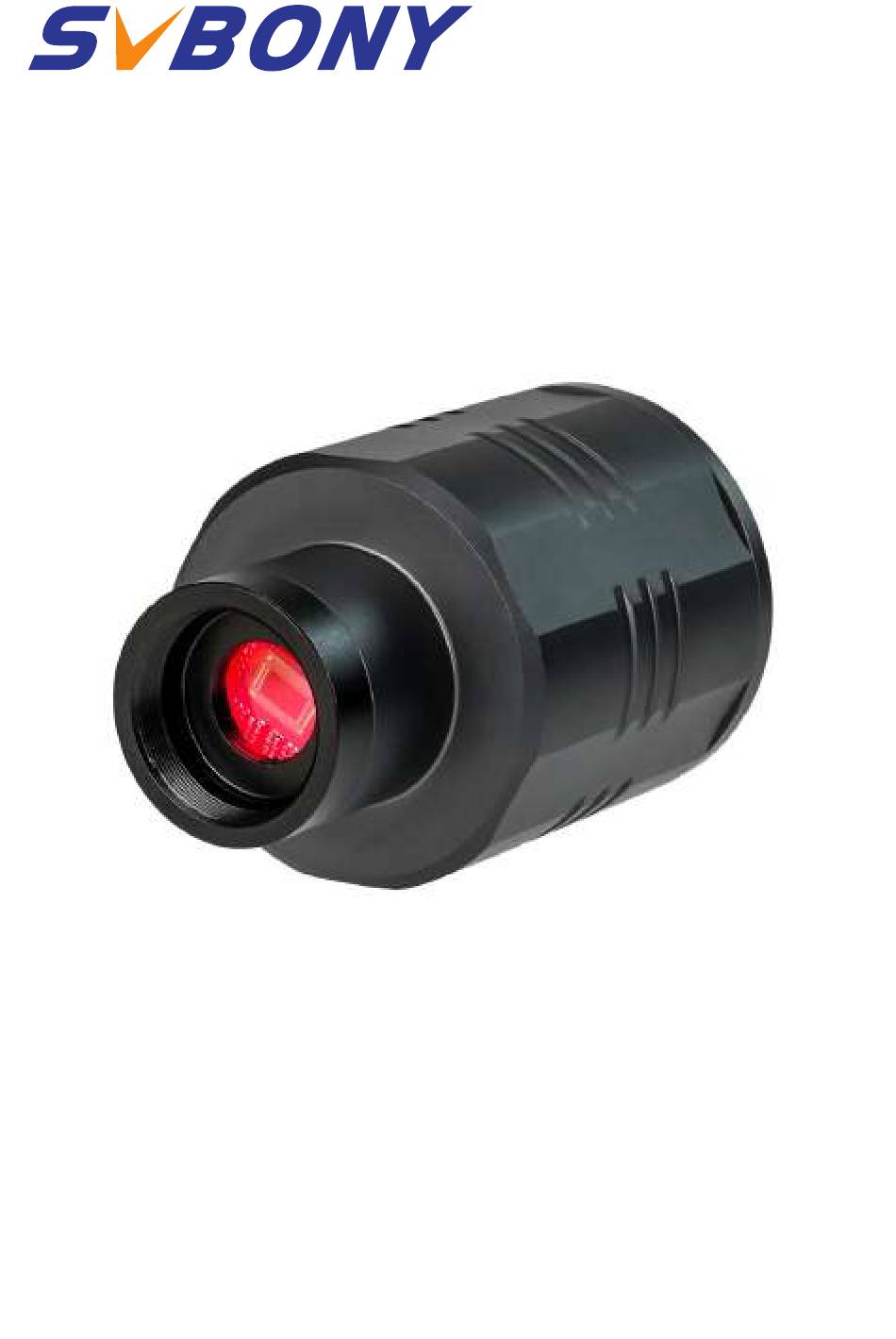

Thanks for purchasing your new SVBONY astronomy camera! This manual will give you a brief introduction of the SC311 camera. Please read this manual completely before using it. If you have any questions, please feel free to contact us: Facebook: www.facebook.com/svbony...
Contents ----------------------------------------------01 Appearance Introduction ---------------------------------------------------02 Dimensions Display -------------------------------------------------03 Camera Specification Product parameters ------------------------------------------------03 Feature ----------------------------------------------------------04 ----------------------------------------------------04 Package details ------------------------------------------05 How to Use Astronomy Camera ------------------------------05 Download APP and usage introduction -----------------------------05 Introduction to APP interface connection Precautions for use ---------------------------------------------------07 -----------------------------------------------------08 Camera Cleaning -----------------------------------------------------09...
Appearance Introduction ⑥ ⑤ ④ ③ ⑦ ② ① ① TF card slot ② Blue light ③ Red light ④ Power button ⑤ Reset button ⑥ Type-C interface ⑦ Antenna ⑧ CS-C Adapter ⑧...
Camera Specification Product parameters Model SC311 Sensor Model Sensor Model 2.1 Mega Pixels Total Pixels 6.44mm Diagonal Max Resolution 1920×1080 2.9μm X 2.9μm Pixel Size 5.6mm×3.2mm Chip Size Exposure Range 0.02ms-5s ≈91% QE Peak 12 bit Adapter 1.25″/CS/C Protective Window...
Feature Using the IMX662 high-sensitivity sensor, it offers low readout noise, high well capacity, and no blooming. With WiFi wireless connectivity, you can free yourself from the limitation of wires and enjoy the freedom in usage. It can simultaneously connect up to 4 smartphones or tablets for sharing the joy of astronomy.
-iOSsystem:Enter app store to search SvbonyAstro and click download, Install it according to default steps. -Android/Harmony OS system:Enter app store to search SvbonyAstro and click download, Install it according to default steps (Or download the svbony Android/HarmonyOS installation package from the official website https://www.svbony.com/Support/SoftWare-Driver/) Introduction to APP interface connection Open APP“...
Page 9
of each device) in the Wi-Fi list. When prompted, enter the password "12345678" and click "Enter". Once your iPhone shows that it is connected to the SC311_XXXXXX network (it may display “no Internet access” which is normal), it means that the device has been successfully connected.
When using a mobile device to connect with this product and operate the APP, please note the following: -If you are using an purchased TF card with this product SC311 for the first time, please enter the settings option to format the TF card firstly(The TF card provided with this product has been formatted before leaving the factory) to prepare for later video shooting or photo storage.。...
Blue light flickers Video shooting Camera Cleaning Svbony SC311 camera comes with an optical protection window-UV/IR CUT glass, which could protect the sensor from dust and humidity. And the inside of the image sensor is dry and sealed. We don’t recommend customer to disassemble the camera and clean it.
Quality Assurance The SC311 camera warranty time is one year. Within warranty period, if the camera fails to function, we will provide free after-sales maintenance service. Besides the warranty days, we provide life-long maintenance services and charge only the parts that need repair or replacement. The buyer will pay for the postage of returning camera to factory to be repaired.
Page 13
-Consult the dealer or an experienced radio/TV technician for help. •(Simple EU declaration of conformity) Hong Kong Svbony Technology Co.,Ltd declares that the equipment type is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU, EMC Directive 2014/30/EU, the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU;...
Page 14
The power delivered by the charger must be between min 5Watts and max 10 Watts required by the radio equipment in order to achieve the maximum charging speed. Authorized Accessories List Antenna: 3. dBi, 50Ω This device meets the regulatory standards when used with the Svbony accessories supplied or designated for the product.
Page 15
FCC Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Guarantee Model Number: Serial Number: Purchasing Date: Dealer: Telephone: User’s Name: Telephone: Country: Address: Post Code: Email: Remarks: 1.This guarantee card should be kept by the user, no replacement if lost. 2.Most new products carry a two-year manufacturer’s warranty from the date of purchase. Further details, pls read http://www.retevis.com/after-sale/ 3.The user can get warranty and after-sales service as below:...
Page 17
À DÉPOSER Cet appareil et EN MAGASIN EN DÉCHÈTERIE ses accessoires se recyclent Hong Kong Svbony Technology Co.,Ltd Add: Unit B, 5th Floor, Gallo Commercial Building, 114-118 Lockhart Road, Wanchai, Hong Kong Facebook: facebook.com/svbony E-mail: info@svbony.com Web: www.svbony.com MADE IN CHINA...
