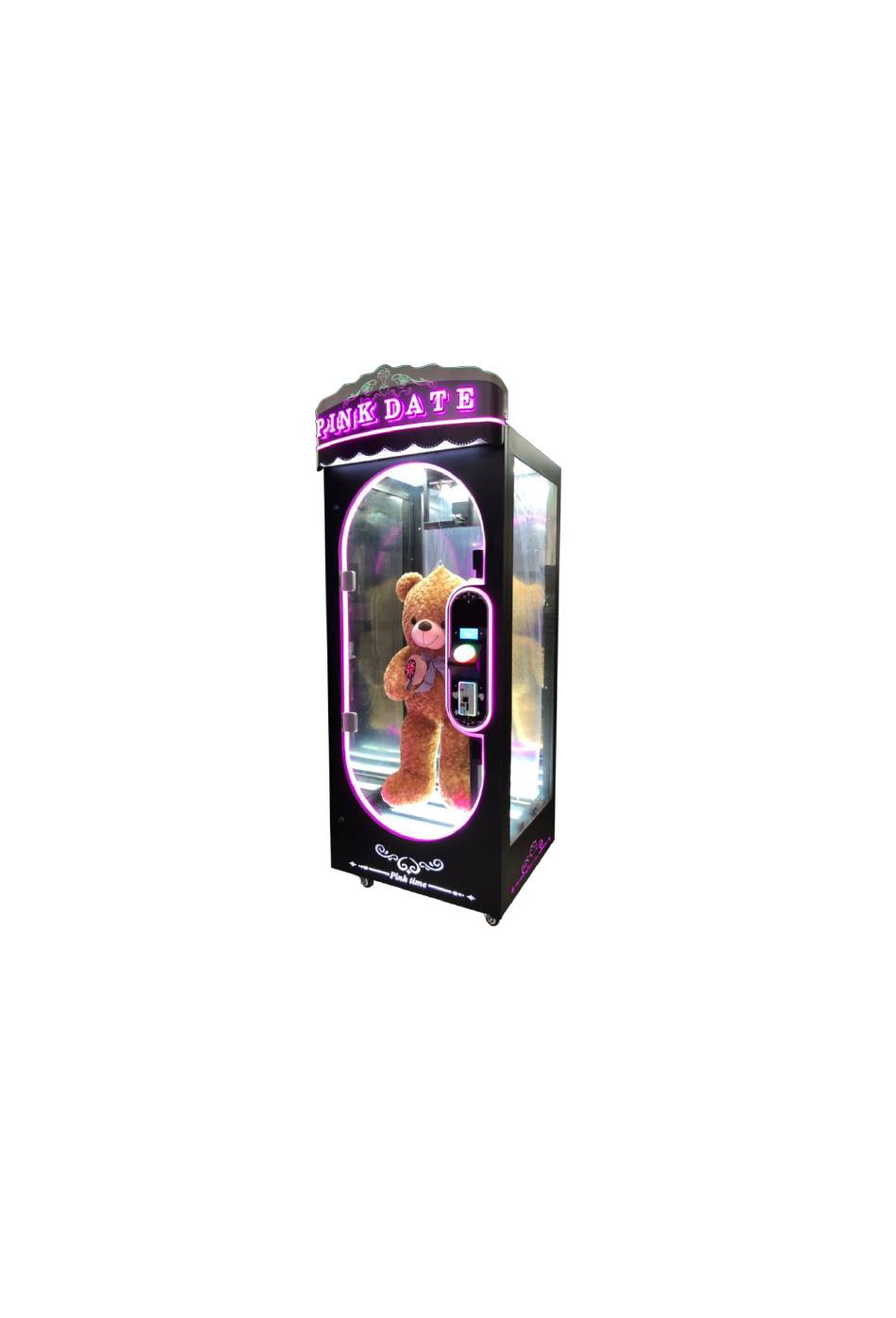

WIK Pink Date Instruction Manual

Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Pink Date
Instruction Manual
Please read this instruction carefully before installation and use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pink Date and is the answer not in the manual?

Questions and answers

Related Manuals for WIK Pink Date

Summary of Contents for WIK Pink Date

  • Page 1 Pink Date Instruction Manual Please read this instruction carefully before installation and use...
  • Page 2 Category Specifications and Technical Parameters....................1 1. Gameplay ............................... 2 2. Supplement of prize..........................2 3. Parameter settings ..........................2 (1) Basic setting ..........................2 ①Demo music ..........................2 ②Coin keep..........................2 ③Test mode ..........................2 ④Free play mode ........................2 ⑤IO test ............................

  • Page 3: Specifications And Technical Parameters

    Specifications and Technical Parameters Operating Voltage: AC 220V - 240V, 50/60 Hz or AC110V±5%, 50/60 Hz Minimum Power: 120W Maximum Power: 180W Dimensions: W800 × D930 × H 2100 (mm) Weight: 150Kgs...

  • Page 4: Parameter Settings

    1. Gameplay Insert coin to start the game, press and hold button to move the mechanism. Within limited time, release button to cut the rope. If you cut off the rope, collect the prize. 2. Supplement of prize When there is no prize, press and hold the button for 5 seconds, the door will open automatically then you can put the prize inside.

  • Page 5: Function Setting

    (2) Function setting ①Coin&play: How many coins for 1 game ②Game time The play time per game ③Open Door Press to open the front door ④Door Open Mode ON-When the prize is won, the door will be opened automatically OFF-When the prize is won, the door will not open automatically ⑤Payout setting How many games per prize, ranging from 2 to 999 rounds, the default is 10 rounds.

  • Page 6: Error Code And Solution

    ②Break distance The default setting is 16, do not change! The lower the value, the better game experience but sometimes the payout rate is not quite correct as the set amount! ③Position test To test the winning position and see if the rope is in the middle of the blade. 4.

  • Page 7: Wiring Instructions

    5. Wiring instructions...
