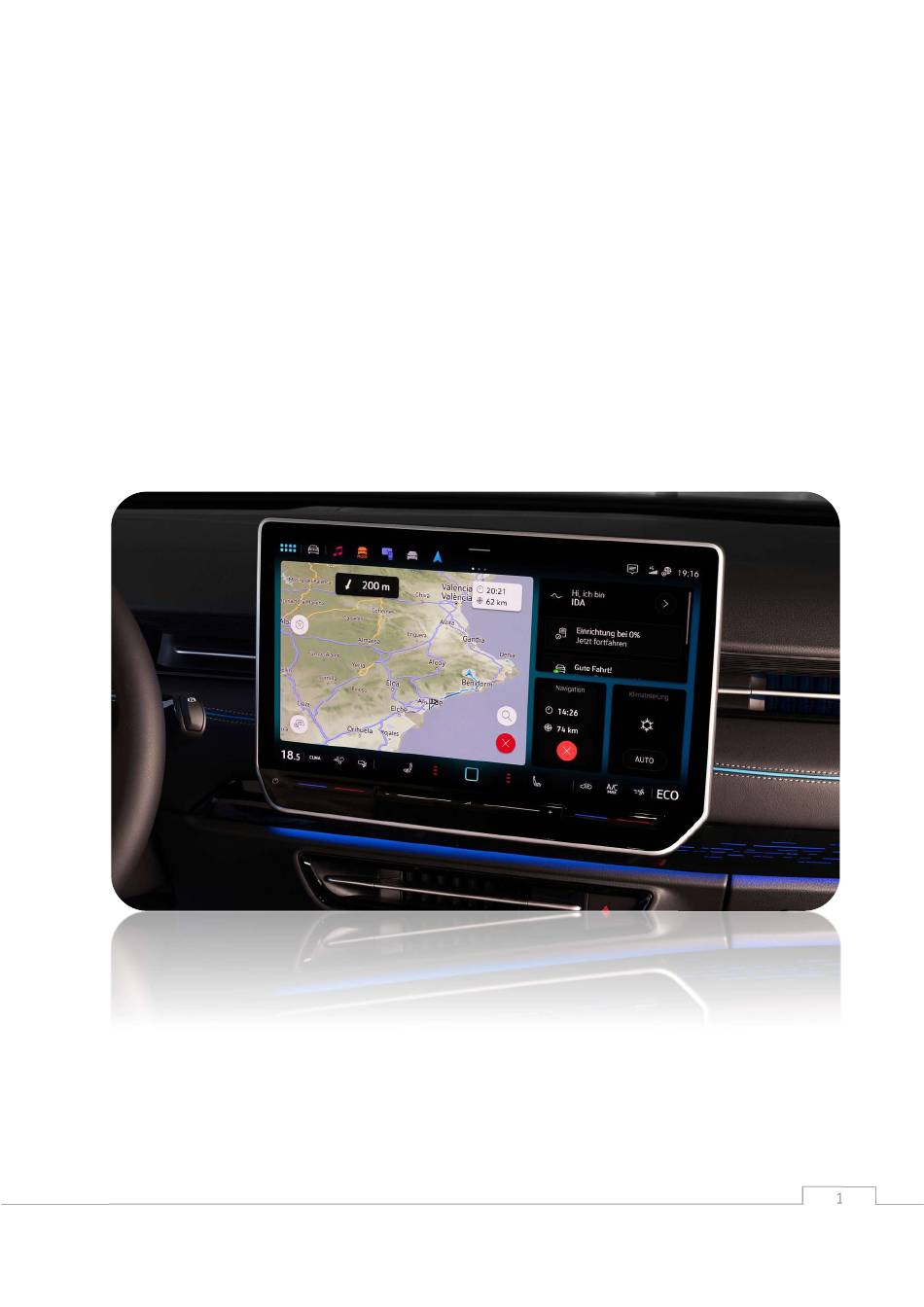

Audi, VW , Skoda , Seat, Ford, MAN
MIB-3
AHD / CVBS
Camera Video interface
Art. 300 329
Compatible with 8.8", 10.x", 11.6", 12.9" , 13" inch screens
4 Video Inputs for after-market device (
Rear + Front + Left + Right camera inputs)
AHD/CVBS compatible
(PAL, NTSC, 720P NTSC, 720P PAL, 960P NTSC, 960P PAL,1080P NTSC,1080P PAL)
Installation behind the radio/navi head unit.
Parking guidelines + PDC for rear camera (CANbus dependent)
1
Advertisement
Summary of Contents for HighTech+ 300 329
- Page 1 Audi, VW , Skoda , Seat, Ford, MAN MIB-3 AHD / CVBS Camera Video interface Art. 300 329 Compatible with 8.8”, 10.x”, 11.6”, 12.9” , 13” inch screens 4 Video Inputs for after-market device ( Rear + Front + Left + Right camera inputs) ...
- Page 2 1. Connection: Keep display connections original!
- Page 3 Dip Settings 8-DIPS [Black]: DIP1 ON = V1 (Left CAM) DIP2 ON = V2 (Right CAM) DIP3 ON = V3 Front CAM 10S after reverse (adjustable in menu) DIP4 ON = V4 Reverse CAM DIP5 OFF + DIP6 OFF DIP7 OFF + DIP8 OFF = OEM PDC position RIGHT DIP7 OFF + DIP8 ON = OEM PDC position CENTER DIP7 ON + DIP8 OFF = OEM PDC position LEFT TOP 4-DIPS [Black]:...
- Page 4 Trigger wires: Trig-Rear*: insert +12/24V reverse light signal to activate the rear camera (signal must be stable, not LED) Trig-Right: insert +12/24V to activate the video image of V2 Trig-Front: insert +12/24V to activate the Front camera (optional). Front camera also switches on automatically after reverse, and also by short-press switch button (included).
- Page 5 MENU settings: - Activate a camera/video channel and press and hold the MENU button (3 sec.) to show the menu settings. - Use UP / DOWN to change a setting - Use MENU to jump to the next option REAR CAM (V4) settings: Brightness: adjust the brightness of the picture Contrast:...
- Page 6 Dynamic guidelines: Choose between 6 types of dynamic patterns! Fixed guidelines: Choose between 6 types of fixed patterns!
- Page 7 FRONT CAM (V3) settings: Trigger: select the desired time to show the Front cam picture automatically after reversing. InputSource: AutoDetect: interface detects the inserted video signal automatically. Other fixed video system settings are: PAL, NTSC, 720P PAL, 720P NTSC, 960P PAL, 960P NTSC, 1080P PAL, 1080P NTSC.
