Summary of Contents for KT SOLAR KT70703

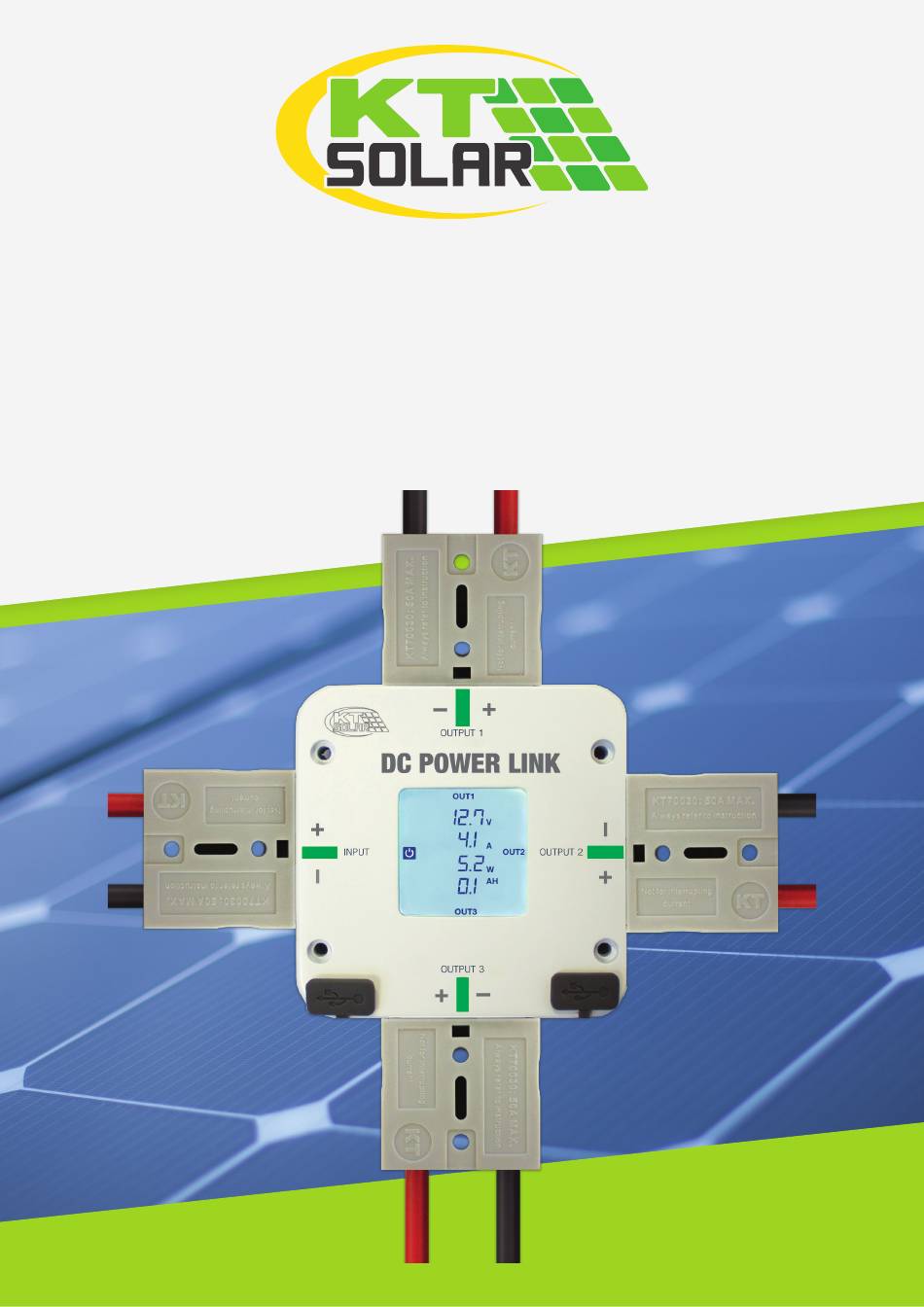

- Page 1 DC POWER LINK 30A 12-24V Model No. KT70703 USER MANUAL IS569 Issue 1 06.09.2023...
- Page 2 USER MANUAL Please refer to this user manual before using or installing this product. FEATURES 1. Dustproof Cover 2. 50A Heavy Duty Connector Input 3. 50A Heavy Duty Connector Output (30A Total Output) 4. LCD Screen 5. Mounting Holes 6. Live Readings (Volts, Amps, Watts, Amp Hour/Battery Percentage) 7.
- Page 3 USER MANUAL 66mm between mounting points 18mm 80mm width 21mm 85mm width with dust covers OPERATION INSTRUCTIONS Turn On/Off the DC Power Link • Remove the dustproof cover from ‘Input’ and connect battery source via 50A Heavy Duty Connector. (Max Input 30A Draw). •...
- Page 4 USER MANUAL Activate or Deactivate a Circuit (Turn On/Off a Connected Device): • To activate a circuit after the device has been connected, hold your finger on the corresponding ‘OUT’ Icon on screen for three seconds. Your connected device will activate, readings will be live immediately and viewable for a ten second cycle.
