DUAL/SINGLE CHANNEL
WIRELESS AIR CONTROL SYSTEMS
90 Series Air Control Kits (with & without Remote)
325 Series Air Control Kits (with & without Remote)
425 Series Air Control Kits (with & without Remote)
+
Non-Air Tank compatible kits.
* See application guide for proper fitment.
+
+
+
L6636_REV1_05.20.2025
Advertisement
Summary of Contents for Pacbrake 90 Series

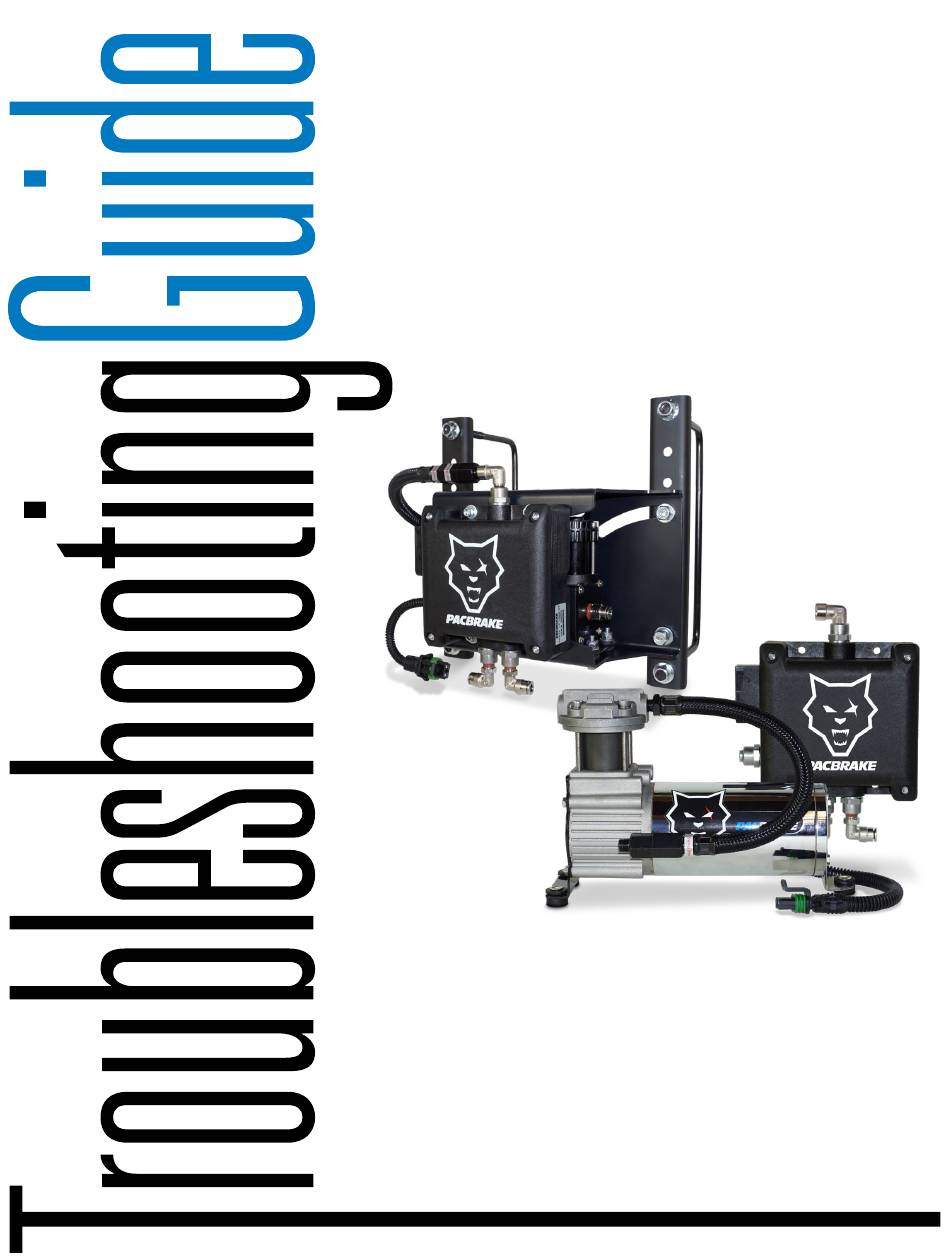

- Page 1 DUAL/SINGLE CHANNEL WIRELESS AIR CONTROL SYSTEMS 90 Series Air Control Kits (with & without Remote) 325 Series Air Control Kits (with & without Remote) 425 Series Air Control Kits (with & without Remote) Non-Air Tank compatible kits. * See application guide for proper fitment.
- Page 2 Troubleshoot ng: Dual/Single Channel Wireless Air Control Systems L6636 Thank you for the purchase of a Wireless Air Controls kit. While our kits are designed to be tough as nails, there are rare occurance that it may not function the way it was intended and need some finesse to get it running at the peak condition is was intended.
-
Page 3: Air Compressor
Troubleshoot ng: Dual/Single Channel Wireless Air Control Systems L6636 1 AIR COMPRESSOR 1.1 Air compressor is slow/not building pressure CAUSE SOLUTION Insufficient power applied to compressor Ensure battery voltage is not less than 9 VDC (12 VDC system) and ► replace / charge battery if necessary. - Page 4 Troubleshoot ng: Dual/Single Channel Wireless Air Control Systems L6636 AIR COMPRESSOR Continued 1.3 Air Compressor is not activating CAUSE SOLUTION Insufficient power applied to compressor Ensure battery voltage is not less than 9 VDC (12 VDC system) and ► replace / charge battery if necessary. Ensure voltage at ignition power source is not less than 9 VDC and ►...
- Page 5 3.1 Wireless Remote SOLUTION CAUSE Questions or Issues? Reference the Wireless Remote User Manual at: ► www.pacbrake.com/mm5/pdfs/L6616.pdf 4 WIRELESS APP (PHONE / REMOTE) 4.1 App is showing incorrect pressure readings CAUSE SOLUTION Pressure sensor is out of calibration Ensure all pressure is released from the system and recalibrate ►...
- Page 6 Troubleshoot ng: Dual/Single Channel Wireless Air Control Systems L6636 WIRELESS APP (PHONE / REMOTE) Continued 4.2 Cannot connect to controller from the Wireless Air Controls application CAUSE SOLUTION Incorrect/ unsupported device or operating Ensure the device operates on Android™ 7.1 or newer. ►...
- Page 7 Troubleshoot ng: Dual/Single Channel Wireless Air Control Systems L6636 WIRELESS APP (PHONE / REMOTE) Continued CAUSE SOLUTION Turn off other wireless communication modes on mobile device ► (Continued from previous page) (Wi-Fi, NFC, etc.). Communication issue between controller and phone Some devices may have difficulty connecting due to signal •...
