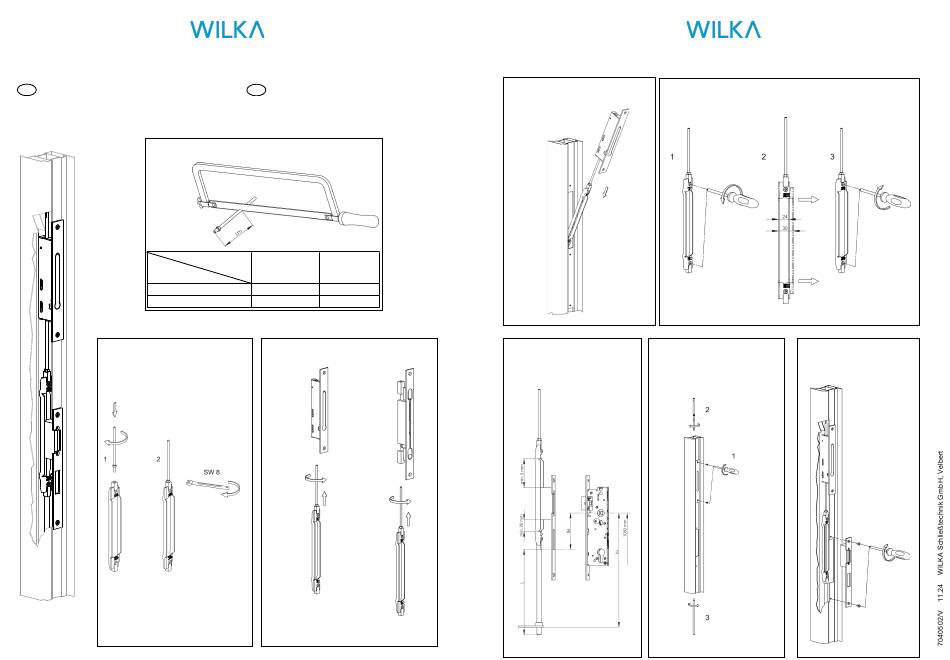

Montage Umlenkung
D
GB
Art.Nr. 9692
F
I
1. Stange kürzen / Shortening bolt
Art.Nr. / Art.No.
1670
6672
2. Stange eindrehen / Turn in bolt
2-987016 (9692)
Leistungserklärung und Zertifikate unter: www.wilka.de
Installation redirection
D
GB
Art.No. 9692
F
I
Position Stulp
Stulp mittig auf
Kasten mittig auf
Forend position
1500mm
1500mm
Forend centred at
Case centred at
1500mm
1500mm
Lm = 185mm
Lm = 185mm
Lm = 185mm
Lm = 220mm
3. Umlenkung eindrehen /
Turn in redirection
2-987455,
2-987456 (4671)
2-987453,
2-987454 (1670)
Performance description and certificates: www.wilka.de
4. Schloss mit Umlenkung einsetzen /
5. Umlenkung lösen / Dismantling redirection
Fit in lock with redirection
6. Positionierung Umlenkung /
7. Schloss festschrauben, Stangen
Positioning redirection
eindrehen / Tighten lock, turn in bolts
2-987007 (9647)
L = Lu - 68mm
8. E-Öffner montieren /
Install E-opener
