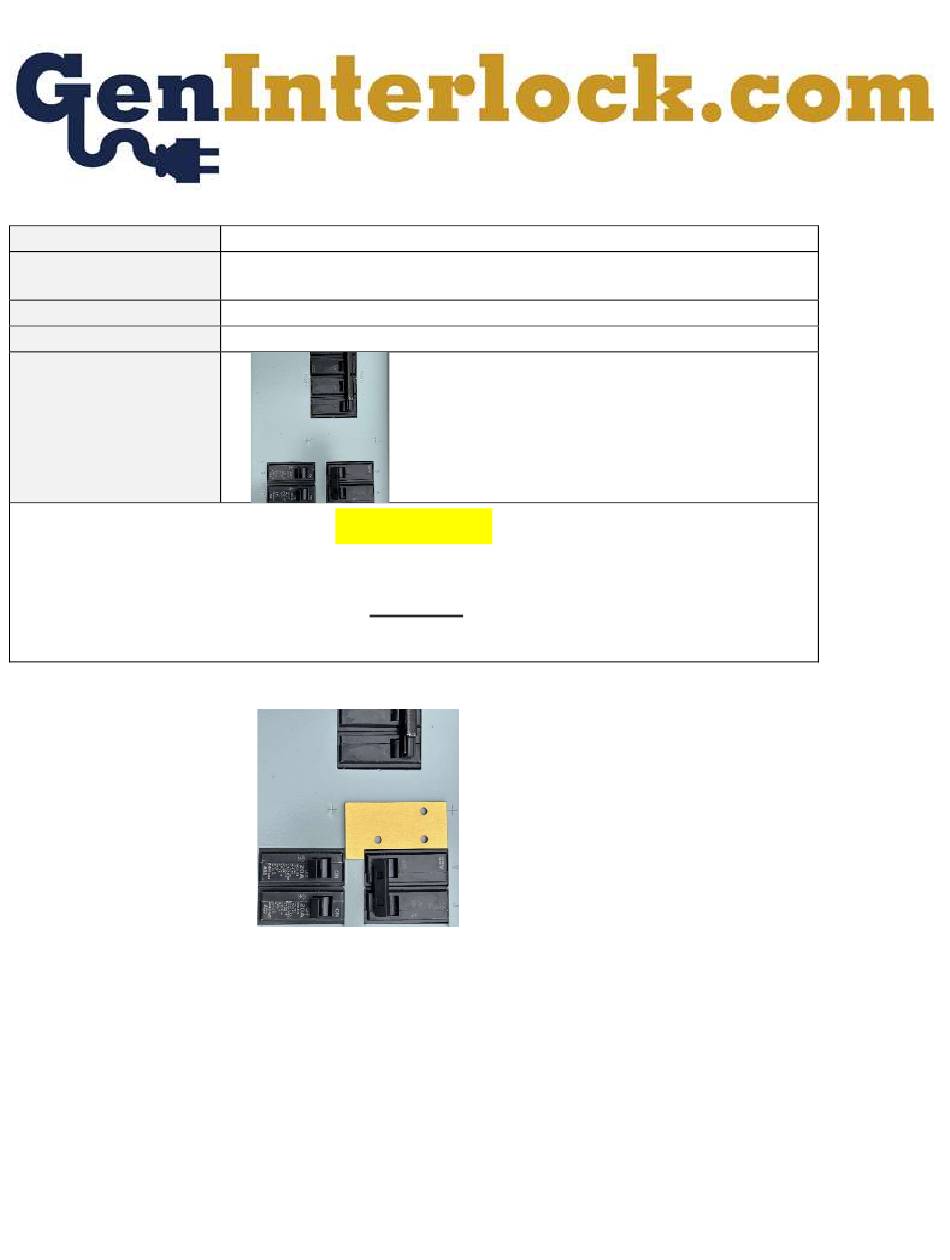

GenInterlock GE-N2 Quick Start Manual

Model
Description
Main Breaker
Generator Breaker
Only qualified personnel should be working on the panel box
An amateur should NEVER open the panel box
Please follow all rules and regulations of the National Electric Code
Step 1: Disassemble the interlock. Place the bottom plate (holes only) above the top right breaker and mark
holes. The plate is parallel to top right breaker.
Step 2: Turn off the main breaker and remove panel cover.
Step 3: Drill holes as marked on panel cover with supplied 3/16 drill bit and remove all burs from drilling cover.
Step 4: Insert screws from rear of cover, install bottom plate, and install top plate (slotted) install thread lock to
screws and install retaining nuts. Ensure proper movement.
Step 5: Install 2 pole Generator breaker on top right side and place Generator Warning Sticker on Generator
breaker.
Step 6: Combine the zip ties to make a loop and install zip ties around top set of breakers in panel as shown in
picture below. Pull on ends to make tight around breakers. Trim zip ties as needed and install Warning
label next to release tab on zip tie at generator breaker
GE-N2
Generator Interlock Kit General Electric GE or ABB 150 and 200
Amp Panels with 1 ¼ - 2 1/8 spacing
Horizontal throw left (off) to right (on)
Top right side 2 positions
WARNING
.
