GF-858C Dual-Channel
Arbitrary Waveform Generator
User Manual
0 MI2240

Advertisement

loading
Need help?

Need help?

Do you have a question about the GF-858C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Promax GF-858C

Summary of Contents for Promax GF-858C

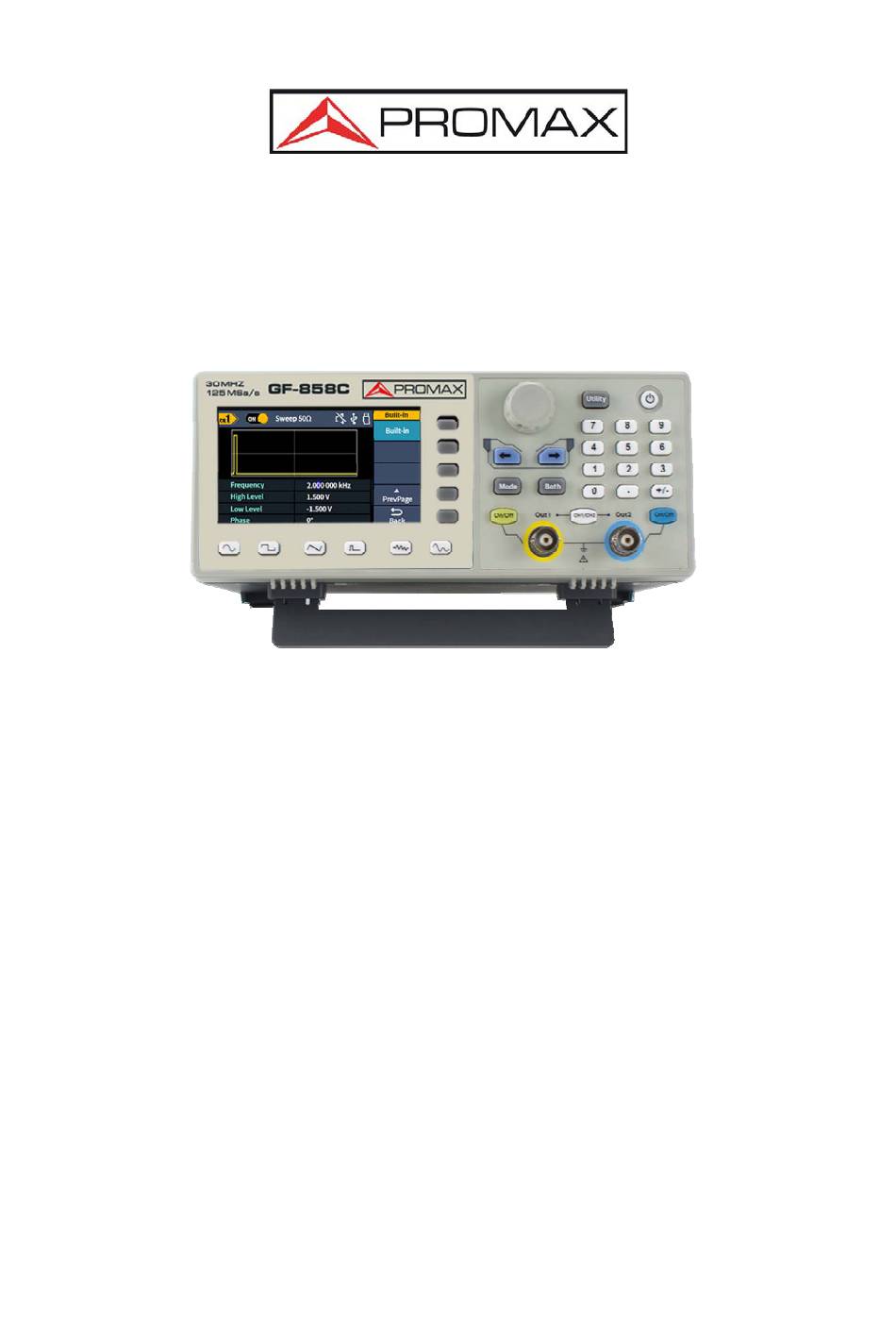

  • Page 1 GF-858C Dual-Channel Arbitrary Waveform Generator User Manual 0 MI2240...
