Model 3200 & 4200
Installation Manual
Please Read And Save These Instructions
4200
CAUTION!
!
This symbol and the word "CAUTION" indicates:
IMPORTANT INSTRUCTIONS!
Failure to heed
Inside The Box
• Humidifier (Model 3200 M/A or 4200 M/A)
• GA10 Vapor Pad
(GFI #7905 For 3200 Models)
®
• GA35 Vapor Pad
®
(GFI #7902 For 4200 Models)
• Solenoid Valve Assembly
• Push-to-Connect Tee Valve
• Manual (M Models); Automatic Humidistat (A Models)
• 24V Transformer
• Hardware Kit
Not Included (Contractor Supplied):
• 1/4" Diameter plastic supply tubing for cold water applications, or 1/4"
copper supply tubing required for hot water applications
• 6" Diameter rigid or flexible by-pass duct
• Wire nuts
WARNING:
Do not install where ambient temperatures fall below 32°F / 0°C or where plenum temperatures exceed 200°F / 93°C.
!
Form No. 3200-18 USA REV D
3200
!
!
CAUTION! or
WARNING! can result in serious injury or death.
General Filters, Inc.
43800 Grand River Avenue
Novi, Michigan 48375
Toll Free: (866) 476-5101
www.generalaire.com
Evaporative Humidifiers
Manual GFI #5800 & #5950
Automatic GFI #5801 & #5951

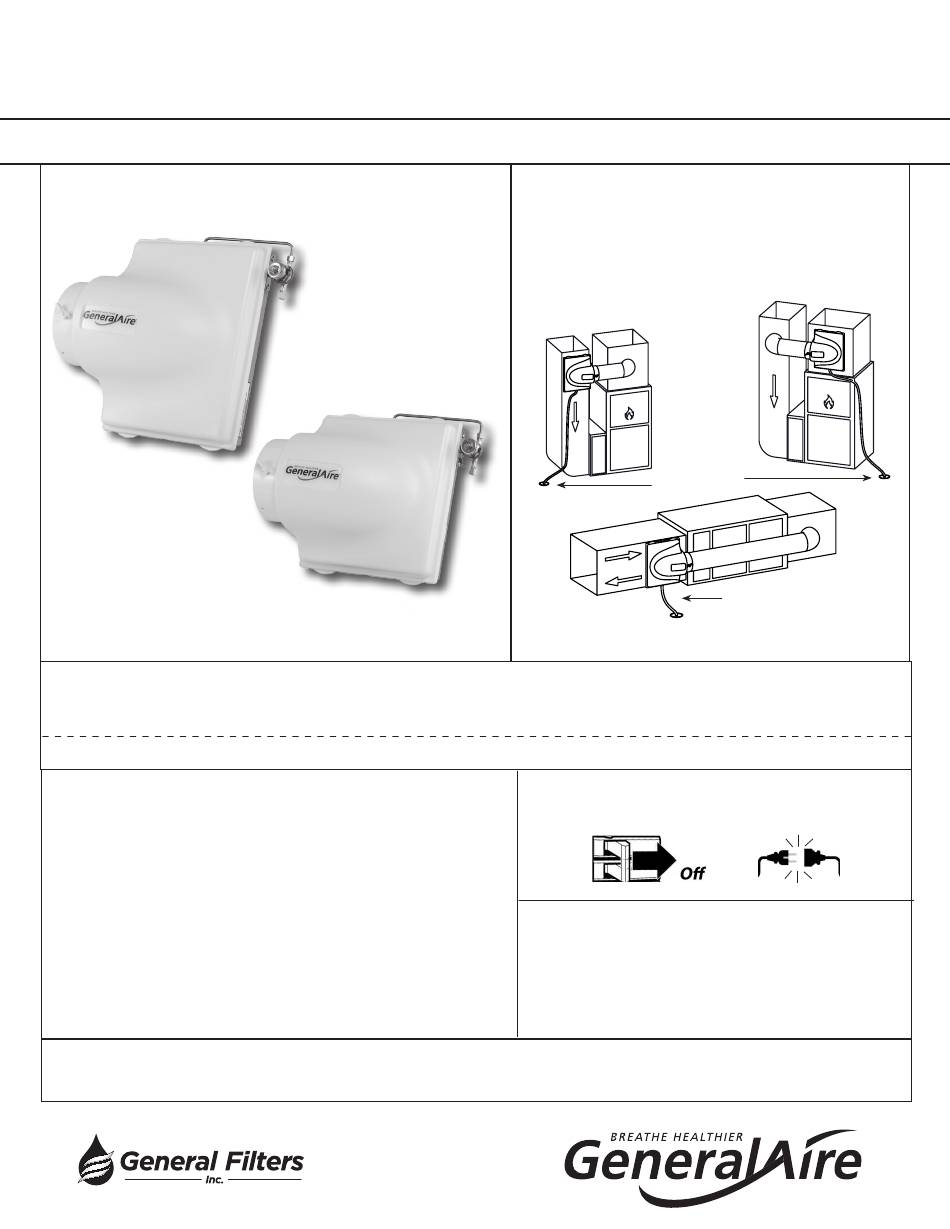

Plenum Installation Location:
Models 3200 & 4200 humidifiers may be
installed on either the return or supply plenum of a forced air handling system.
The humidifier's bypass panel is reversible and can be mounted on the right or
left side of the humidifier. Select a location for the humidifier that allows for
service and maintenance. For maximum evaporative capacity, install this
humidifier on the warm air supply plenum.
Supply
Return
Vertical
Installation
Options
Drain Line
WARNING!
!
This symbol and the word "WARNING" indicates:
IMPORTANT INSTRUCTIONS!
• WARNING:
DISCONNECT ELECTRICAL POWER
!
BEFORE BEGINNING INSTALLATION.
IMPORTANT:
To ensure your safety and the
longevity of your unit, we recommend:
•
Contacting a licensed contractor to perform
maintenance or repairs.
•
Changing your Vapor Pad
heating season.
Return
Supply
Drain Line
Horizontal Installation
at the start of each
®
®
®
Advertisement
Related Manuals for General Filters GeneralAire 3200
Summary of Contents for General Filters GeneralAire 3200
- Page 1 Do not install where ambient temperatures fall below 32°F / 0°C or where plenum temperatures exceed 200°F / 93°C. Form No. 3200-18 USA REV D ® General Filters, Inc. ® 43800 Grand River Avenue Novi, Michigan 48375 Toll Free: (866) 476-5101...
- Page 2 Model 3200 & 4200 Humidifier Installation Manual INSTALLATION Return Supply CUT HUMIDIFIER AND BYPASS HOLES IN DUCT Using the supplied template, cut the rectangular opening 9.13" in the Return or Supply (shown) duct. Cut the 6” round hole in the opposite duct. Locate it 10” to 15” from side of the 6"...
- Page 3 INSTALLATION INSTALL THE PUSH-TO-CONNECT VALVE I. Select desired valve location. II. Remove 0.6" (15mm) of pipe to account for valve width (Fig. E). Fig. E Make sure both pipe ends are square, deburred and clean. III. Mark both pipes at the insertion depth 0.95" (24mm) (Fig. F). Fig.
- Page 4 Model 3200 & 4200 Humidifier Installation Manual INSTALLATION INSTALL THE (DUCT OR WALL MOUNT) MANUAL HUMIDISTAT Humidistat I. Mount the included humidistat on the duct (Fig. H) or on the wall. II. Wire the humidifier and humidistat as shown. (Fig. I) 6"...
