Summary of Contents for Made DETECT LINE LDS

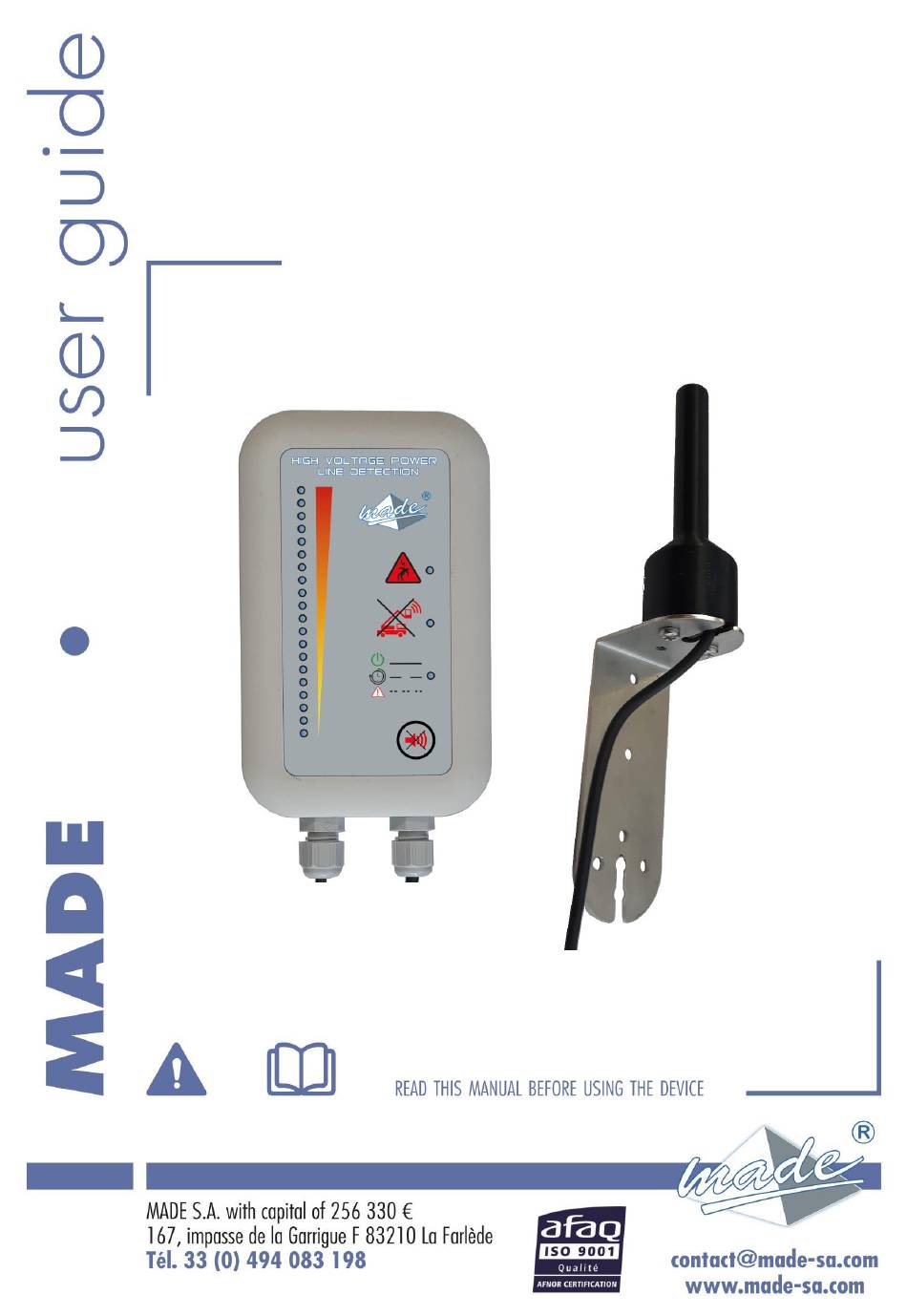

- Page 1 High voltage detection system DETECT LINE LDS M A D E 167, Impasse de la garrigue F 83210 LA FARLEDE Phone. : +33 (0) 494 083 198 E-mail : contact@made-sa.com - Web : www.made-sa.com FQ 47B-EN - V1.12 - 14/10/2020 FQ_47B-FR-V2_00.docx...
- Page 2 M O D I F I C A T I O N ’ S D I R E C T O R Y Rév. Subject of Amendments Date Author 1.00 Creation 24/07/24 O Goeury 1.02 modify paragraph use 29/07/24 O Goeury 1.10 page layout 31/07/24...
-
Page 3: Table Of Contents
S U M M A R Y SAFETY INFORMATION ................5 1.1. Safety recommendations ..............5 1.2. Following the safety recommendations ..........5 1.3. Warning labels ..................6 1.4. Information ..................7 OVERVIEW ....................8 2.1. Working Principle ................8 2.2. - Page 4 MAINTENANCE, WARRANTY AND COPYRIGHT ........23 8.1. Maintenance ..................23 8.2. Warranty..................... 23 8.3. Copyright ................... 23 APPENDIX ....................24 4 / 24...
-
Page 5: Safety Information
This document is the DETECT LINE LDS User's Guide. It describes the implementation of the device, as well as the different modes of operation to facilitate its use. 1. SAFETY INFORMATION 1.1.Safety recommendations Please read this guide carefully before unpacking, configuring or using this equipment. -
Page 6: Warning Labels
1.3.Warning labels Read all labels and wordings shown on the instrument. Injuries or equipment damage could occur if these instructions are not respected. Symbol requiring reference to the instruction manual for instructions concerning operation or safety recommendations. Dangerous Voltage Ac current IP standard –... -
Page 7: Information
1.4.Information DEVICE FOR DRIVING ASSISTANCE . Detection Overhead Power Lines AC Voltage from 10,000 volts Warning : The system is inoperative on : - Overhead power lines Low Voltage (380V) - Overhead power lines Medium Voltage Direct Current (tram power, railways in general ..) The VIGILANCE and the operator must remain CAUTION maximum to approach energized electrical lines. -
Page 8: Overview
2. OVERVIEW 2.1.Working Principle DLDS warns the user with an audible alarm when the lifting device enters a hazardous area. The sensor is constantly interrogated by the processing module, in order to check that they are in good working order, and to avoid any failure of the system, which would be dangerous for the work of the personnel (sound and light signaling a failure of the sensor). -
Page 9: Composition
2.2.Composition Composition for DLDS bracket fixed Sensor : Fixed on the rooftop always in « free area » suction cup holder Alarm activation* Central unit : Power supply after For optimal operation, Fixed on dashboard ignition Fuse the sensor must be in or near command or the equipment is a free field on the... -
Page 10: Central Unit
2.2.1.Central unit Sensor management and control unit, generation of audible and visual alarms, management of machine movement blocking (optional). 10 / 24... -
Page 11: Sensor
2.2.2.Sensor The sensor is attached using the bracket. The position of the sensor must be chosen so that it is in an open field. 11 / 24... -
Page 12: Implementation
3. IMPLEMENTATION 3.1.Start system The system will connect to 24V after switching on the PTO or key ignition. Commissioning is automatic, no adjustments are required for the user. 3.2. Operation A powered DLDS 2 beeps and then interrogates its sensors. At startup, all visual and audible alarms are activated 2 times. -
Page 13: The "Unlock Mode
After the "unlock mode" delay (20 minutes), the system returns to position alarm. IMPORTANT: In practical, the electric field is not exactly spherical, it doesn’t have a definitive shape, as it depends on weather conditions, and other parameters. In addition, for all the announced detection distances, other parameters must be taken into account, such as, but not limited to, the speed of approach of the arm, the angle of approach, the weather conditions, and other parameters that do not allow the application of a mathematical... -
Page 14: Summary Of Operational Conditions
3.4.Summary of operational conditions DLDS works on 11KV cables from 20 meters; the alarm distance is measured in free field (unobstructed). DLDS does not work on power lines less than 11 kV. DLDS does not work on insulated cables and the cables 380V (3+ 1 wires). -
Page 15: Installation
System in working Electric field present Breakdown order - Lamp "On work" off: power off Lamp "Audible - Lamp "Audible alarm" alarm" off flashing*. - Lamp "Movement - slow flash: - Lamp "Movement cut" cut" off system waiting for light on steady* alarm activation - flashing fast: -Lamp "Visual alarm"... -
Page 16: Fixing The Sensor
4.2.Fixing the sensor Positioning sensors on the media: The sensor is set in open space around the arm to handle or on the vehicle roof. To be operational, the sensor must be installed in front of any surface, 4.3.Installation procedure Power supply, Cut-off and alarm activation connection: Connect the central unit by plugging the M12 5Pts. - Page 17 Alarm activation Power supply after Pto Fuse or machine start cut movement* Alarm activation: factory configuration in + 12 / 24V 17 / 24...
-
Page 18: Technical Features
5. TECHNICAL FEATURES sensor specifications Product range HV Line Detector Range name liveline defender Sensor type HV line proximity detector Sensor name DLDS_CAP_110 Electrical connection M8 cable, 3-pin Cable length mounting aluminum bracket with reverse polarity Supply voltage protection Operating range 10-30 m Operating ambient... - Page 19 central unit specifications Product range HV Line Detector Range name liveline defender Sensor type HV line proximity detector Sensor name DLDS_UCE_110 Electrical connection M12 cable, 5-pin Cable length mounting suction cup or aluminum bracket 12/24V DC with reverse polarity Supply voltage protection visual and audible warning LED indicator and buzzer 87 dbA...
-
Page 20: Optional Devices
DETECT LINE LIVELINE DEFENDER (external version) DLDS_AIM_110 DETECT LINE LDS Support aimanté pour capteur DLDS_ALI_110 DETECT LINE LDS Allume cigare précablé DLDS_ALI_111 DETECT LINE LDS Prise allume cigare à câbler DLDS_BUZ_110 DETECT LINE LDS Buzzer extérieur DLDS_CAP_110 DETECT LINE LDS Capteur avec support équerre DLDS_RAL_110... -
Page 21: Cigar Lighter Socket Power Supply
6.1.12V cigar lighter socket power supply Operation Sick overmolded connector cable Power 0V Brown Power Blue Black 12/24V Grey White Connected 21 / 24... -
Page 22: Operating Restriction
In this case, extra precautions are necessary. MADE declines all responsibility in the event of use of the material not in accordance with the manufacturer's specifications. MADE cannot be held responsible for an accident due to contact with power lines, given the multitude of special cases encountered in the field. -
Page 23: Maintenance
Never use solvent, or a solvent-based product, to clean the system and / or its accessories. For cleaning and maintenance of DETECT LINE LDS, it is sufficient to: Check that the sensors are clean: wipe off with a dry cloth ❑... - Page 24 9. APPENDIX 24 / 24...
