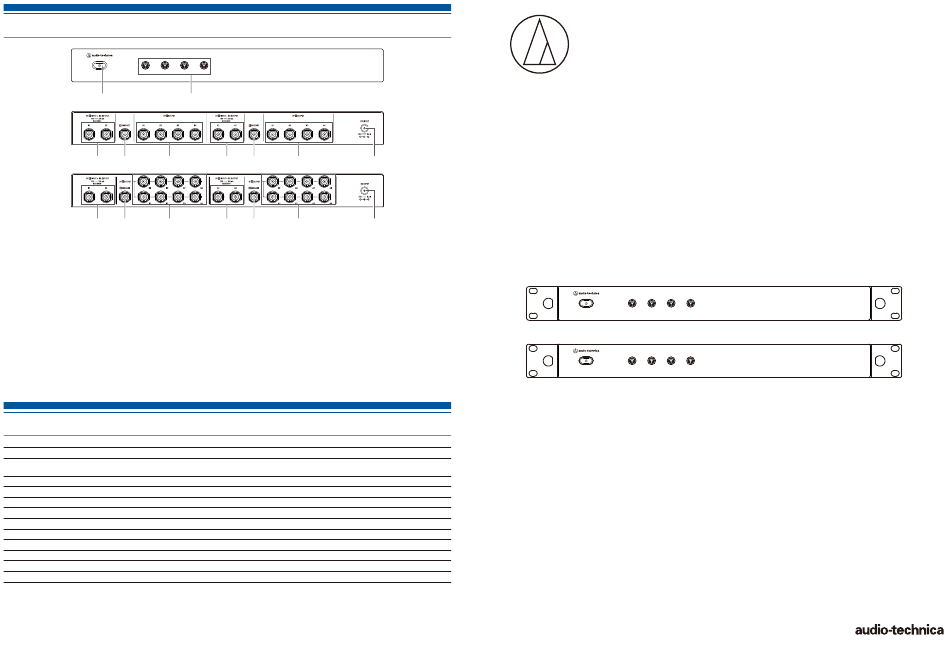

Part names and functions
A1 A2
ANTENNA BOOSTER POWER
①
③ ④ ⑤
③ ④ ⑤
①
Power button
Press to turn the power ON/OFF.
An indicator lights up when the power is ON.
②
Antenna power switch with indicator
By turning the antenna power switch ON.
12V DC can be supplied to the antenna input jacks
while the switch lights up.
③
Antenna B input jack
These are two antenna combination jacks for Channel B.
12V DC can be supplied from the antenna jacks.
④
Antenna B cascade output jack
This is a Channel B cascade output jack.
The signal with insertion loss compensation it can be
supplied to the antenna input jack of another
ATW-DA2214 or ATW-DA2218.
Specifications
Frequency range 470 to 990 MHz
Input/output ATW-DA2214 : 2 × 2 combination input, 2 × 4 distribution output, 2 × 1 cascade output
ATW-DA2218 : 2 × 2 combination input, 2 × 8 distribution output, 2 × 1 cascade output
Input/output jack BNC
OIP3 +23dBm (Δf = 10MHz)
RF output gain +1.0 dB ± 2.0 dB
Input/output gain +1.0 dB ± 2.0 dB
Antenna input power supply 12 V DC, maximum 300 mA × 4
Power supply 100 to 240 V AC (50/60 Hz) to 18V DC 3.3 A (center positive) switched mode external power supply
Operating temperature range -5°C to 45°C (23°F to 113°F)
Dimensions 402 mm (15.83")×44.5 mm (1.75")×232 mm (9.13") (W×H×D) (excluding protrusions)
Weight ATW-DA2214 : 3.5 kg (7.7 lbs) / ATW-DA2218 : 4.2 kg (9.3 lbs)
Accessories Rack-mount kit (rack-mount × 2, mounting screw × 6), BNC cable × 10(ATW-DA2214) / 18(ATW-DA2218), AC adapter
