MODEL 79324 / 79335 / 79345 3 TON CAPACITY ROLLING LIFT BRIDGE
SETUP • OPERATING • MAINTENANCE INSTRUCTIONS
Note: Revision letters (A, B, C, D etc.) after model numbers have been omitted as they do not affect the setup,
operating and maintenance instructions of a particular jack unless otherwise noted.
IMPORTANT: READ THESE INSTRUCTIONS BEFORE OPERATING
BEFORE USING THIS DEVICE, READ THIS MANUAL
COMPLETELY AND THOROUGHLY,
OPERATING PROCEDURES,
MAINTENANCE REQUIREMENTS. FAILURE TO DO SO COULD
CAUSE ACCIDENTS RESULTING IN SERIOUS OR FATAL
PERSONAL INJURY AND/OR PROPERTY DAMAGE.
The use of rolling lift bridges is subject to certain hazards that cannot
be prevented by mechanical means, but only by the exercise of
intelligence, care, and common sense. It is therefore essential to
have owners and personnel involved in the use and operation of
equipment who are careful, competent, trained, and qualified in
the safe operation of the equipment and its proper use. Examples
of hazards are dropping, tipping, or slipping of the load caused
primarily by improper setups, overloading, off-centered loads, and
using equipment for a purpose for which it was not designed.
• Consult the vehicle manufacturer for proper lifting locations.
• Inspect the bridge before each use. Do not use the bridge if it is
damaged, altered, modified, in poor condition, leaking hydraulic
fluid, or unstable due to loose or missing hardware.
• Use the bridge only for its intended purpose.
• Do not use beyond rated capacity.
• Make sure vehicle is in park and the emergency brake is on
before attempting to raise a vehicle.
• The center saddle can only be used to lift one end of the
vehicle.
• Do not use the center saddle if the work to be performed can
cause the load to transfer resulting in an off balance condition.
1. Install the quick disconnect of your choice in the air valve at the
end of the air/hydraulic pump.
2. Back off the four allen socket set screws that secure the
mounting adapters to the bridge body. Lower the aboveground
or in-ground lift to its lowest position. Install the bridge on the lift
by extending the flat-end or hook-end mounting brackets. Make
sure the spring loaded rollers in the flat-end or hook-end mounting
brackets are resting on the appropriate surfaces on the lift. Consult
the lift manufacturer for the proper location of the bridge/s on the lift.

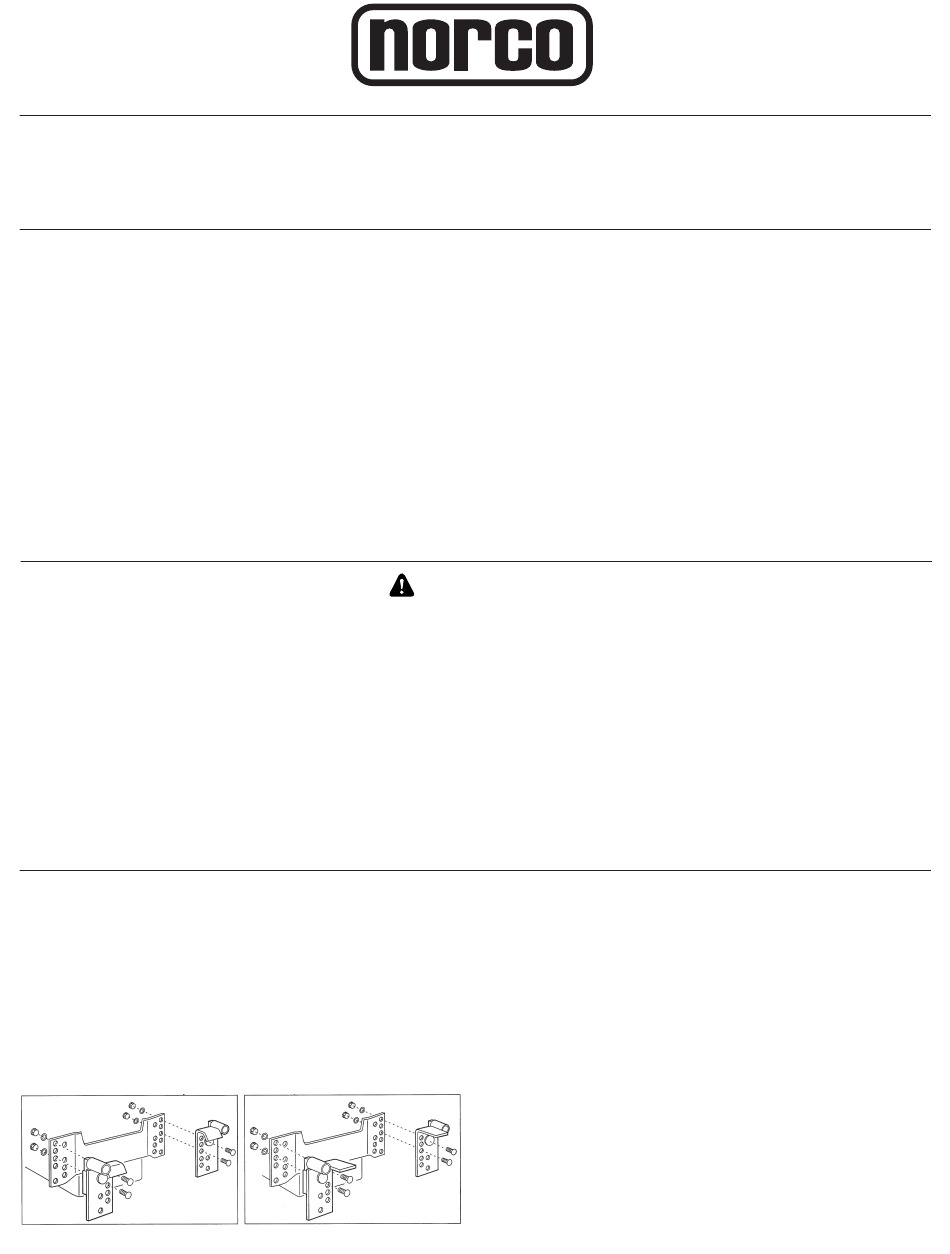

Proper orientation of mounting brackets
79327B
sold in kits
PROFESSIONAL LIFTING EQUIPMENT
UNDERSTAND
SAFETY WARNINGS AND
R
R
79326B
sold in kits
®
It is the responsibility of the owner to make sure all personnel read
ITS this manual prior to using this device. It is also the responsibility of
the device owner to keep this manual intact and in a convenient
location for all to see and read. If the manual is lost or not legible,
contact Norco Industries, Inc. for a free replacement. If the operator
is not fluent in English, the product and safety instructions shall be
read to and discussed with the operator in the operator's native
language by the purchaser/owner or his designee, making sure
that the operator comprehends its contents.
This product is covered by a Limited Lifetime Warranty. For details
see the back cover of Norco's product catalog.
WARNING
• Make sure the load is centered on saddle/s before lifting.
• Use proper saddle adjustments and optional adapters in order
to prevent over extension of the bridge's ram travel.
• Be sure setup is stable and secure before lifting.
• Allow for a minimum 10" head and body clearance when
releasing the load. Always position yourself well below the
bridge's saddles.
• Be careful of pinch points.
• Always lower load slowly and carefully.
• Use only Norco saddles and adapters.
• Do not alter or modify this bridge.
SETUP
NOTE: The bridge should not bottom out before the lift when the
lift is lowered all the way down.
3. Adjust the location of the bridge by making sure it is positioned
at an equal distance from both sides of the lift. Once located, tighten
the allen socket set screws that secure the mounting adapters to
the bridge body.
4. Connect the shop air line to the quick disconnect.
