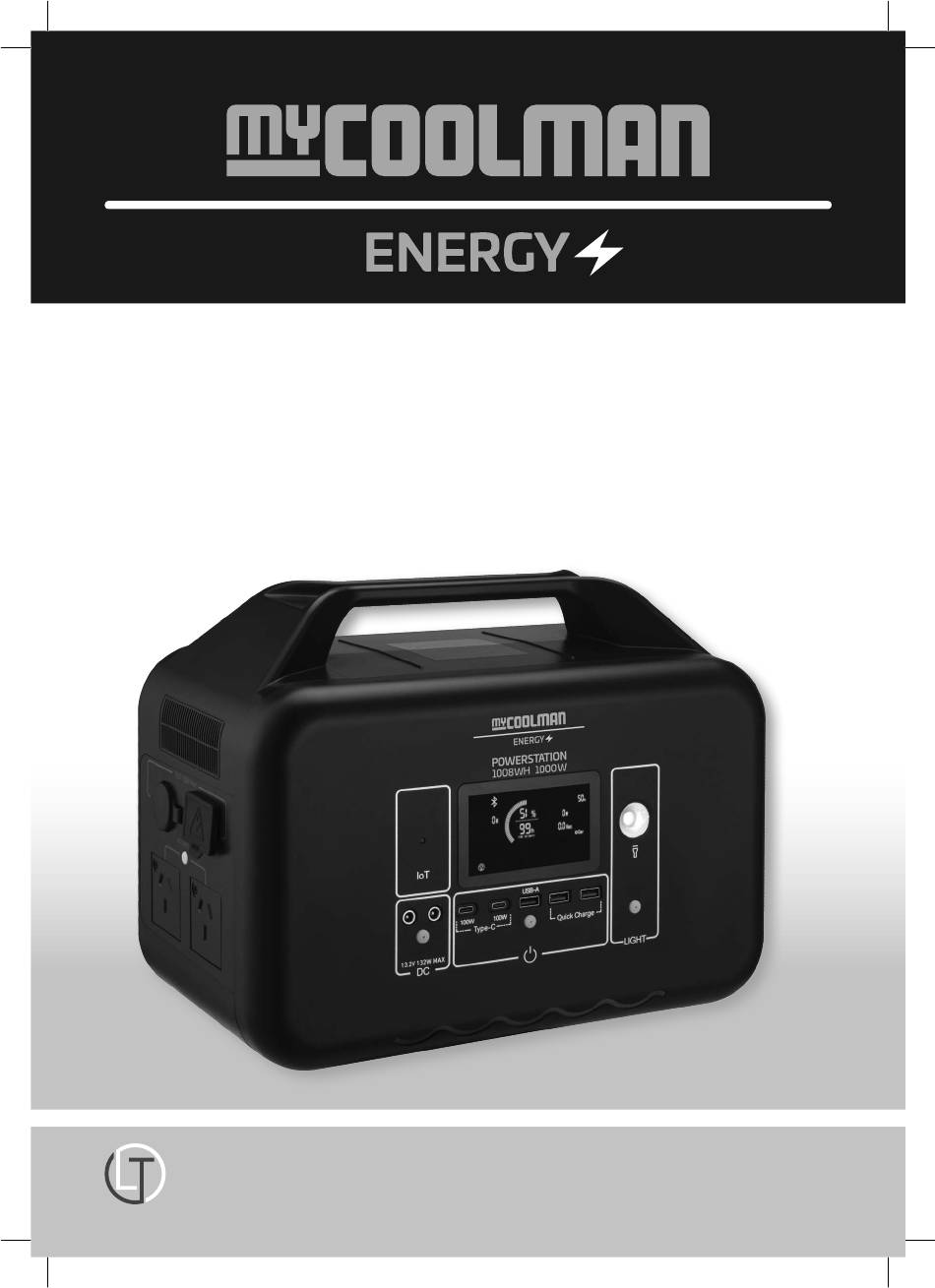

- Page 1 Operation Manual for PowerStation 1008WH 1000W www.mycoolman.com.au LEISURE-TEC Australia Pty Ltd...
-
Page 2: Table Of Contents
ENERGY POWER STATION Contents About This Document Page Preface Page Revision History Page 01 Safety Instructions Page 02 Transportation & Storage Page Maintenance Page 03 Product Disposal Page 04 Product Introduction Page 4.1 Package Contents Page 4.2 Product Details Page 4.3 The User Interface Page 05 Product Safety Guidelines... -
Page 3: About This Document
ENERGY POWER STATION Power Station 1000W User Manual (V2.1) About This Document Preface This portable power station is designed and tested in strict accordance with relevant safety regulations, but as an electronic device, users need to follow the safety instructions in this manual. Please read the complete user manual before operating, and familiarize yourself with the functions and features of the product before using it. -
Page 4: Transportation & Storage
ENERGY POWER STATION Power Station 1000W User Manual (V2.1) explosion. If a fire breaks out due to improper storage of the product, use fire extinguishing equipment in the recommended order: water or water mist, sand, fire blanket, dry powder, and carbon dioxide extinguisher. -
Page 5: Maintenance
ENERGY POWER STATION Power Station 1000W User Manual (V2.1) Maintenance Maintenance item Maintenance cycle Clean housing and output (including DC output/AC socket/USB Three months output port) with a clean, dust-free cloth It is recommended to charge and discharge this product once every three months. -
Page 6: Product Details
ENERGY POWER STATION Power Station 1000W User Manual (V2.1) 4.2 Product Details Page 6... -
Page 7: The User Interface
ENERGY POWER STATION Power Station 1000W User Manual (V2.1) 4.3 The User Interface Icons Description Battery power status bar. The status bar will vary with the charging and discharging of the battery. Displays the percentage of remaining power. Remaining rechargeable/discharge time. Determine the remaining charge/discharge time, accurate to minutes, based on the current power consumption of the product. -
Page 8: Product Safety Guidelines
Indicates that the cigarette lighter and DC output are working. This icon displays when the reading lamp is on. Output overload indication icon. ENERGY POWER STATION The icon indicates that the SmartDrive function is on. The device Power Station 1000W User Manual (V2.1) can power the AC loads that require higher power than the rated output power. -
Page 9: General Product Usage
triggered, and charging is prohibited. 4. The product can be charged in the temperature range (0°C ~ 40°C) and can be discharged in the temperature range (-15°C ~ 40°C). The battery life can be greatly extended in the ideal charging and discharging temperature range (15°C ~ 35°C). -
Page 10: Wireless Charging Function/12V Output
ENERGY POWER STATION Power Station 1000W User Manual (V2.1) Waking up display screen: When the display screen of the product is off (the screen is off, but the light of the main power switch is on), press the main power switch, and the screen lights up. 6.2 Wireless Charging Function/12V Output After the main power supply is turned on, press the DC output power switch to turn on the DC output and wireless charging. -
Page 11: Smartdrive Mode
Power Station 1000W User Manual (V2.1) ENERGY POWER STATION Note: When AC output is not used, please turn it off in time to avoid battery power loss. 6.5 SmartDrive Mode When the load power is greater than the rated output power, the SmartDrive mode will start! When the product recognizes that the required power of the load is greater than the rated output power, it can still supply power to the load. -
Page 12: Silent Charging
ENERGY POWER STATION Power Station 1000W User Manual (V2.1) 6.6 Silent Charging Turn on： Long press the AC output switch, and the screen will display the silent charging icon . When enabling the silent charging, the product will a slower charge rate - please only use this mode when fast charge is not required . - Page 13 ENERGY POWER STATION Note: Charging process equipment according to the temperature of the cell, battery capacity, and other factors to determine the size of the charging power to ensure that the battery is in the optimal state. Car Charging Car charging supports 12V/10A (Max) input. This product can be charged by using the cigarette lighter port on the car, and the connection mode is shown in the following figure.
-
Page 14: On/Off Grid Switching
ENERGY POWER STATION Power Station 1000W User Manual (V2.1) Schematic diagram of connection and parallel connection of two solar charging plates 6.8 On/Off Grid Switching This system has an On/Off Grid Switching function. When the AC socket is connected to the mains supply (in this case, the AC power comes from the grid, not from the battery), the grid can supply power to the load through the bypass relay and recharge its own battery at the same time. - Page 15 ENERGY POWER STATION Power Station 1000W User Manual (V2.1) Icons Status Fault analysis Solution Charging low Blink After the battery is properly warmed, the temperature together power supply can be restored. protection Discharge low Blink Place the battery in a warm place and restore temperature together the power supply after the battery warms up.
- Page 16 ENERGY POWER STATION Power Station 1000W User Manual (V2.1) Icons Status Fault analysis Solution The battery enters the undervoltage protection Battery Blink and all ports (including AC, DC, USB, and undervoltage together wireless charging) stop output. Charge the protection battery. Bright BMS failure Restart the machine can be restored.
- Page 17 ENERGY POWER STATION Power Station 1000W User Manual (V2.1) Icons Status Fault analysis Solution faulty. The inverter output Display overvoltage or over-frequency is faulty. The output voltage shows the fault icon: 1. Remove the AC load and wait for five AC load short minutes.
-
Page 18: Specifications
Power Station 1000W User Manual (V2.1) ENERGY POWER STATION 08 Specifications Product 1000W 11.7 kg Net weights 11.1 kg Dimensions 348*264*192 mm General Information Capacity 1008Wh Cycle life 2000 times (25 ℃, 1C discharge) AC charging 800W Maxi Super Fast Charge AC charging voltage range. -
Page 19: Notes
ENERGY POWER STATION Notes: Page 19... -
Page 20: Warranty Terms & Conditions
When you buy a myCOOLMAN Energy Accessory you have peace of mind knowing it is backed by a comprehen- sive 3 years warranty against defects in materials and workmanship. The myCOOLMAN warranty is provided in addition to any rights provided under Australian Consumer Law.
