Summary of Contents for MAXTRA 130007

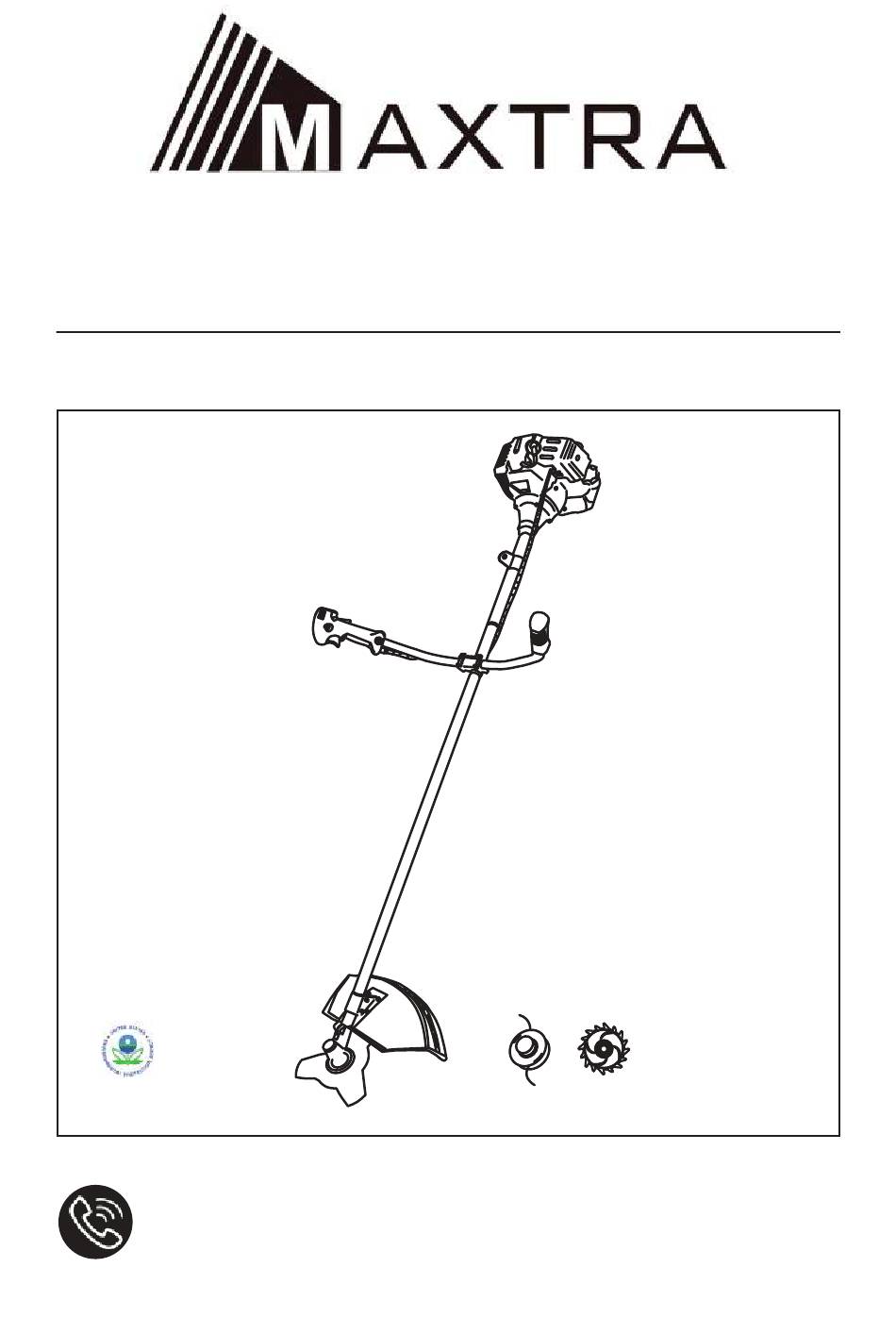

- Page 1 Instruction Manual 130007 42.7CC GRASS TRIMMER/BRUSH CUTTER CONTACT US AT: email： maxlead.us@gmail.com phone： 302 261 5366...
- Page 2 6. Harness hook 15. Blade 7. Handle 16. Nylon head 8. Handle bracket 17. Shoulder strap 9. Engine switch 18. Round cutter Model: 130007 Engine displacement: 42.7cm³ Power rating: 1.1KW Max speed: 7500RPM Spark plug : Replacement NGK BPMR7A or L8RTC Spark plug gap: 0.6- 0.7mm...
-
Page 3: Explanation Of Symbols And Safety Warnings
EXPLANATION OF SYMBOLS AND SAFETY WARNINGS Read operator’s instruction book before operating this machine. Warning! / Attention Wear head, eye and ear protection When blade or line trimmer is working , keep your feet away from the blade or trimmer line Keep all children, bystanders and helpers at least 15 meters away from the brush cutter The sound power level complies with the 2006/42/EC... -
Page 4: Safety Precautions
SAFETY PRECAUTIONS... - Page 5 RECOMMENDED CLOTHING AND EQUIPMENT WARNING HANDLING OF FUEL...
-
Page 6: Starting The Engine
THINGS TO CHECK BEFORE USING YOUR BRUSH CUTTER STARTING THE ENGINE KICKBACK SAFETY PRECAUTIONS Avoid kickback: observe the safety precaution below strictly. -
Page 7: Notes On Transportation
NOTES ON TRANSPORTATION OPERATING SAFETY PRECAUTIONS MAINTENANCE SAFETY PRECAUTION... -
Page 8: Parts List
PARTS LIST Part# Part Image Quantity... -
Page 9: Assemble The Handle
STEP ASSEMBLE THE HANDLE 2. Assemble another handle 1. Assemble the control handle 4. Overall effect 3. Tighten the handle with screws ASSEMBLE THE CUTTING HEAD 2. Assemble the string trimmer head on 1. Insert the hex key into the hole the connect pole 3. -
Page 10: Recommended Mixing Ratio
4. Assemble the round cutter IMPORTANT • Never use 4 stoke engine oil in a 2 stroke engine. It can cause spark plug touting, exhaust port blocking, or piston ring sticking. • Do not use fuels that have been left unused for a period of one month or more, It may clog the carburettor or result in the engine failing to operate property. -
Page 11: Stopping The Engine
STOPPING THE ENGINE Return the throttle lever to the idling position. Push the engine switch button. Trimmer/ Brush cutter Operating safety 1. THIS TRIMMER/BRUSHCUTTER CAN CAUSE SERIOUS INJURIES. Read the instructions carefully. Be familiar with all controls and the proper use of the Trimmer/ Brush cutter. 2. -
Page 12: Cutting Tips
CUTTING TIPS TRIMMING CUT-OFF BLADE Maintenance SPARK PLUG AIR FILTER NOTE: A 1 cover 2 upcap 3 cap 4 airfilter inner set 5 airfilter cover 6 coiler starter 7 carburetor FUEL FILTER STORAGE (1 MONTH OR LONGER) WARNING: -11-... -
Page 13: Manufacturer's Warranty Coverage
Ⅰ、SERVICE INFORMATION OF EPA Address: 501 W BROADWAY SUITE 2020 SAN DIEGO, CA 92101 Telephone number:1-888-876-3567 Email:warrantiessmallengines@gmail.com ISSION CONTROL WARRANTY STATEMENT Ⅱ、EM FEDERAL EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS FEDERAL EMISSION CONTROL WARRANTY STATEM The United States Environmental Protection Agency and Shandong Huasheng Zhongtian Machinery YOUR WARRANTY RIGHTS AND OBLIGATIONS Group Co., Ltd. - Page 14 (c) The warranty on emissions-related parts will be interpreted as follows: (1) Any warranted part that is not scheduled for replacement as required maintenance in DEFECTS WARRANTY REQUIR EMENTS the written instructions required by subsection (d) must be warranted for the warranty (a) Applicability.
