OWNER'S MANUAL

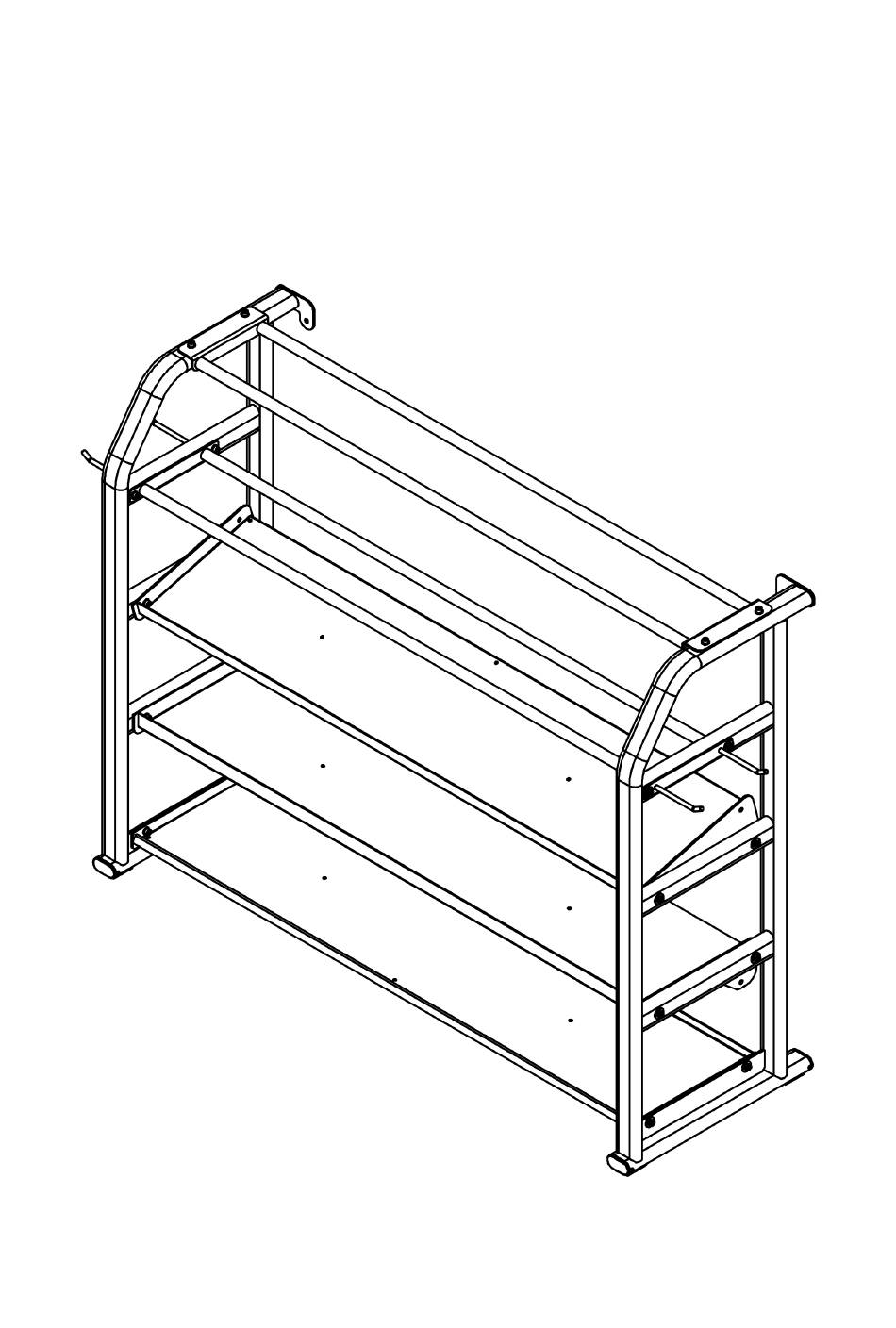

TYSON'S SUPER STORAGE CAGE

Need help?

Do you have a question about the TYSON'S SUPER STORAGE CAGE and is the answer not in the manual?

Page 1 OWNER’S MANUAL TYSON’S SUPER STORAGE CAGE...
Page 2: Assembly Steps
ASSEMBLY STEPS Step 1. NAME SPECIFICATION QUANTITY Left Upright Frame Right Upright Frame Bottom Tray Hex Bolt M10*25 Φ10.5*Φ30*2.5 Flat Washer Φ11*Φ20*2 Flat Washer Attach #6 to #1 and #2 using:  4 #16  4 #17  4 #18 ...
Page 3 Step 2. NAME SPECIFICATION QUANTITY Left Upright Frame Right Upright Frame Middle Tray Hex Bolt M10*60 Φ10.5*Φ30*2.5 Flat Washer Φ11*Φ20*2 Flat Washer Attach 2 #5 to #1 and #2 using:  8 #15  8 #17  8 #18  8 #19 Please don’t tighten all the bolts.
Page 4 Step 3. NAME SPECIFICATION QUANTITY Left Upright Frame Right Upright Frame Top Connection Plate Upper Connection Frame Mat Stand Hex Bolt M10*65 Hex Bolt M10*60 Φ10.5*Φ30*2.5 Flat Washer Φ11*Φ20*2 Flat Washer...
Page 5 1. Attach 2 #7 and #4 to #1 and #2 using:  4 #14  4 #17  4 #18  4 #19 Please don’t tighten all the bolts. 2. Attach #3 to #1 and #2 using:  4 #15 ...
