Yakima OverNOut 180 Manual

Yakima OverNOut 180 Manual

Hide thumbs

Advertisement

Table of Contents

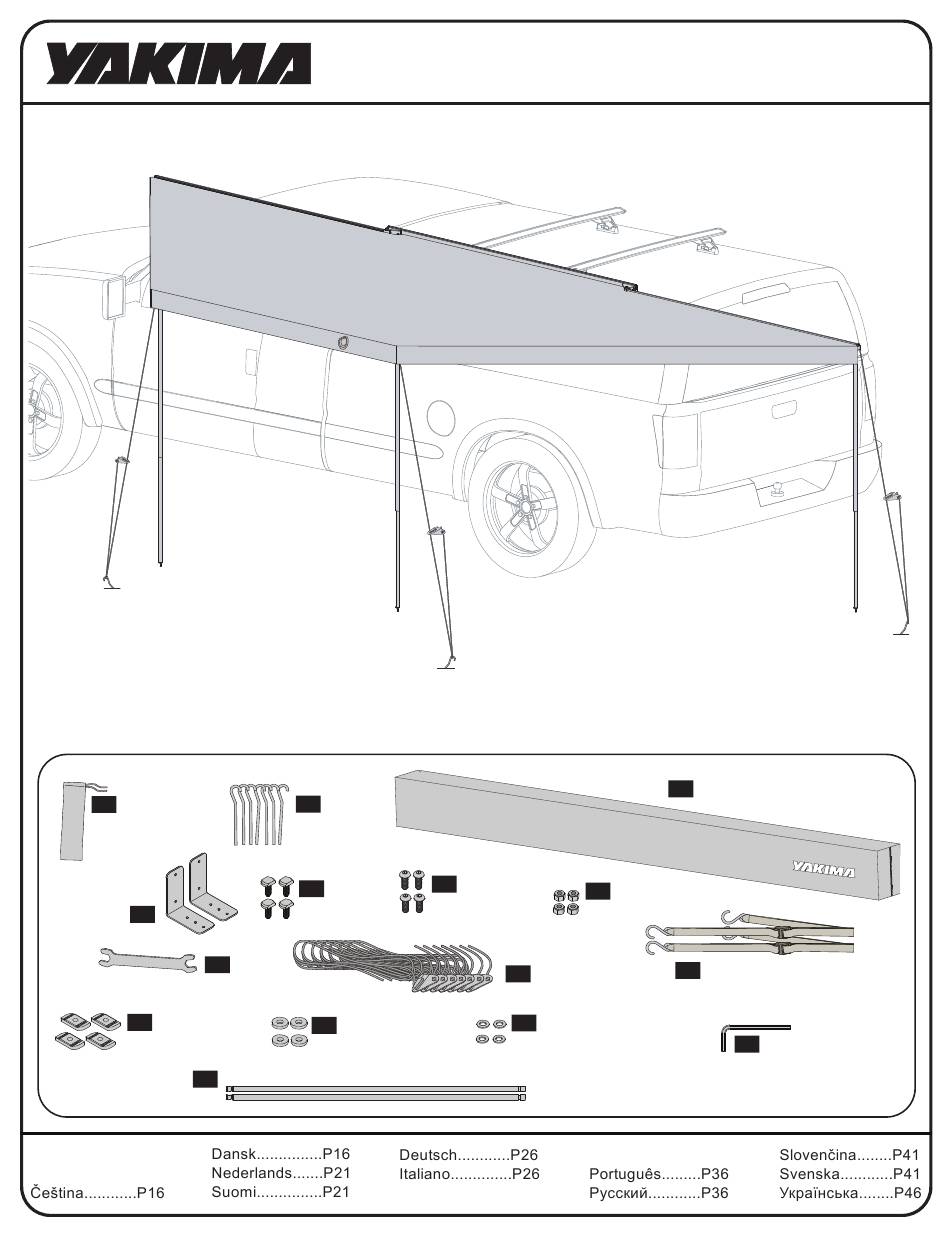

CONTENTS
1
stake sack (1X)
bracket (2X)
4
13 mm wrench (1X)
11
nut plate (4X)
15
support pole (2X)
Français..........P11
Español...........P11
Instruction # 21000159B - page 1 of 58
®
2
stake (7X)
5
bolt (4X)
9
12
thick washer (4X)
6
screw (4X)
guy rope (7X)
10
13
thin washer (4X)
Norsk................P31
OverNOut 180
NOTE: Left-hand side deploy option is
shown throughout this instruction.
3
OverNOut 180 (1X)
7
nut (4X)
8
taught line (2X)
5 mm hex wrench (1X)
14
Polski................P31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OverNOut 180 and is the answer not in the manual?

Questions and answers

Summary of Contents for Yakima OverNOut 180

  • Page 1 ® OverNOut 180 NOTE: Left-hand side deploy option is shown throughout this instruction. CONTENTS OverNOut 180 (1X) stake sack (1X) stake (7X) bracket (2X) screw (4X) nut (4X) bolt (4X) guy rope (7X) taught line (2X) 13 mm wrench (1X)
  • Page 2 Pour la pose sur la Plateforme Yakima, aller à la page 5 où l’on trouvera des instructions spéciales. Para la instalación en la Plataforma, vaya a la página 5 y consulte las instrucciones especiales sobre cómo fijar el soporte e introducir las...
  • Page 3 JETSTREAM INSTALLATION MEASURE THE DISTANCE LOOSELY INSTALL THE NUT PLATES. BETWEEN YOUR CROSSBARS. Using a 5 mm hex wrench, attach the nut Measure the distance plates using 2 screws, 2 thin washers, and, between tracks of your 2 thick washers as shown for each bracket. crossbars.
  • Page 4 POSITION THE BRACKETS. NOTE: It is recommended to make sure the pair of brackets are centered on the awning. Set the distance between the center of Tighten completely to 6 Nm (4.4 lb-ft). the brackets to your M4 measurement. NOTE: The maximum unsupported distance from the bracket to the end of awning must not exceed 50”...
  • Page 5 HD BAR INSTALLATION NOTE: The thick washers will sit on top of the HD bar so that the L-bracket does not contact the end cap of the HD bar. NOTE: The maximum unsupported distance thin from the bracket to the mince fina end of awning must not...

  • Page 6: Platform Installation

    PLATFORM INSTALLATION • For installation on Platform, loosely assemble the screws, washers, and nut plates in the order shown. thin • Have a friend help to lift and install the awning. mince • Slide the brackets to align with the opening on fina the slats.
  • Page 7 UNZIP AND FOLD BACK THE COVER. Unzip the cover slowly to avoid zipper snags. Then fold the cover back as shown. NOTE: When closing the awning, move the zippers to rear to reduce noise. RELEASE THE STRAPS. Release the hook and loop straps and allow the fabric of the...
  • Page 8 INSTALL THE TAUGHT LINES. A. Hook one end of the taught lines to the loop at each corner of the awning as shown. C. Pull the free end of the strap to B. Wrap the other end of the tighten it until it taught line around the crossbar is snug.
  • Page 9 ATTACH THE GUY ROPES. Drive a stake into the ground at a 45 degree angle about 12” (30 cm) from the base of each front support. Hook the looped end of guy ropes around the stakes, then slide the tensioner up until the rope is under tension as shown.
  • Page 10 • Be sure all hardware is secured according to instructions. Failure to perform safety checks before driving away can result in property damage, personal injury, or death. • Remove your awning and Yakima Rack before entering an automated car wash. • Do not use fuel burning, oxygen consuming devices under the awning. This includes: candles, gas lanterns, kerosene lamps, stoves, cooking and heating appliances.
  • Page 11 FRANÇAIS ESPAÑOL ¡LEA ESTAS ADVERTENCIAS! LIRE CES AVERTISSEMENTS ! Instruction # 21000159B - page 11 of 58...
  • Page 12 FRANÇAIS ESPAÑOL SOIN ET ENTRETIEN DE L’AUVENT CUIDADO Y MANTENIMIENTO DE LOS TOLDOS Instruction # 21000159B - page 12 of 58...
  • Page 13 FRANÇAIS ESPAÑOL REMARQUE : la version côté gauche est présentée tout au long de NOTA: En estas instrucciones se muestra la versión del lado izquierdo. ces instructions. CONTENIDO TABLE DES MATIÈRES NOTA: A lo largo de esta instrucción se muestra la opción que se REMARQUE : ces instructions montrent un montage du côté...
  • Page 14 POSE SUR LA PLATEFORME YAKIMA arandelas en el orden indicado. • Pour la pose sur la plateforme Yakima, assembler les vis, les • Vaya al paso 2 de la página 3 para medir la distancia M4. rondelles et les plaquettes filetées dans l’ordre illustré sans les •...
  • Page 15 FRANÇAIS ESPAÑOL DÉPLIER LES POTEAUX. EXTIENDA LAS PATAS DE APOYO. Coloque patas de soporte y cuerdas de amarre si existe la Déployez les béquilles et les haubans en cas de risque de posibilidad de que haya viento o ráfagas de viento. No coloque vent ou de rafales de vent.
  • Page 16 DANSK LÆS DISSE ADVARSLER! Instruction # 21000159B - page 16 of 58...
  • Page 17 DANSK Instruction # 21000159B - page 17 of 58...
  • Page 18 DANSK POZNÁMKA: BEMÆRK: OBSAH INDHOLD POZNÁMKA: BEMÆRK: POZNÁMKA: BEMÆRK: INSTALACE NA JETSTREAM MONTERING AF JETSTREAM POZNÁMKA: BEMÆRK: POZNÁMKA: BEMÆRK: POZNÁMKA: BEMÆRK: Instruction # 21000159B - page 18 of 58...
  • Page 19 DANSK MONTERING AF HD BAR INSTALACE NA HD BAR BEMÆRK: POZNÁMKA: BEMÆRK: POZNÁMKA: MONTERING AF TRIM HD BAR INSTALACE NA TRIM HD BAR BEMÆRK: POZNÁMKA: MONTERING AF PLATFORM INSTALACE NA PLATFORM TIP: BEMÆRK: POZNÁMKA: LYN OVERDÆKNINGEN OP, OG FOLD DEN BEMÆRK: POZNÁMKA: Instruction # 21000159B - page 19 of 58...
  • Page 20 DANSK Instruction # 21000159B - page 20 of 58...
  • Page 21 NEDERLANDS SUOMI LUE NÄMÄ VAROITUKSET! Instruction # 21000159B - page 21 of 58...
  • Page 22 NEDERLANDS SUOMI kokonaan. Instruction # 21000159B - page 22 of 58...
  • Page 23 NEDERLANDS SUOMI OPMERKING: OBSAH OPMERKING: sivuun. OPMERKING: INSTALLATIE OP DE JETSTREAM OPMERKING: OPMERKING: OPMERKING: Instruction # 21000159B - page 23 of 58...
  • Page 24 NEDERLANDS SUOMI INSTALLATION OP HD BAR OPMERKING: OPMERKING: paksu INSTALLATION OP TRIM HD BAR OPMERKING: paksu INSTALLATION OP HET PLATFORM paksu VINKKI: OPMERKING: OPMERKING: Instruction # 21000159B - page 24 of 58...
  • Page 25 NEDERLANDS SUOMI Instruction # 21000159B - page 25 of 58...
  • Page 26 ITALIANO Instruction # 21000159B - page 26 of 58...
  • Page 27 ITALIANO CURA E MANUTENZIONE DELLA TENDA DA SOLE Instruction # 21000159B - page 27 of 58...
  • Page 28 ITALIANO HINWEIS: NOTA: INHALT HINWEIS: NOTA: HINWEIS: NOTA: INSTALLAZIONE DI JETSTREAM INSTALLATION DES JETSTREAMS MESSEN DES ABSTANDS ZWISCHEN DEN NOTA: HINWEIS: NOTA: HINWEIS: NOTA: HINWEIS: Instruction # 21000159B - page 28 of 58...
  • Page 29 ITALIANO INSERIRE LE PIASTRE DEI DADI NEI CANALI INSTALLATION DER HD-STANGE INSTALLAZIONE DELLA HD BAR HINWEIS: NOTA: HINWEIS: NOTA: INSTALLATION DER TRIM-HD-STANGE INSTALLAZIONE DELLA TRIM HD BAR HINWEIS: NOTA: INSTALLATION DER PLATTFORM TIPP: NOTA: HINWEIS: APRIRE LA CERNIERA E RIPIEGARE LA NOTA: HINWEIS: Instruction # 21000159B - page 29 of 58...
  • Page 30 ITALIANO Instruction # 21000159B - page 30 of 58...
  • Page 31 NORSK POLSKI LES DISSE ADVARSLENE! Instruction # 21000159B - page 31 of 58...
  • Page 32 NORSK POLSKI Instruction # 21000159B - page 32 of 58...
  • Page 33 NORSK POLSKI MERK: INNHOLD MERK: MERK: JETSTREAM-INSTALLASJON MERK: MERK: MERK: Instruction # 21000159B - page 33 of 58...
  • Page 34 NORSK POLSKI INSTALLASJON AV HD-STANG MERK: MERK: INSTALLASJON AV TRIM HD BAR MERK: INSTALLASJON PÅ PLATTFORM MERK: MERK: Instruction # 21000159B - page 34 of 58...
  • Page 35 NORSK POLSKI Instruction # 21000159B - page 35 of 58...
  • Page 36 Instruction # 21000159B - page 36 of 58...
  • Page 37 CUIDADOS E MANUTENÇÃO DO TOLDO Instruction # 21000159B - page 37 of 58...
  • Page 38 NOTA: CONTEÚDO NOTA: NOTA: INSTALAÇÃO NO JETSTREAM MEDIR A DISTÂNCIA ENTRE AS BARRAS NOTA: NOTA: Instruction # 21000159B - page 38 of 58...
  • Page 39 FAÇA DESLIZAR AS PLACAS ROSCADAS NOS INSTALAÇÃO DE BARRA DE ALTA RESISTÊNCIA HD BAR NOTA: NOTA: INSTALAÇÃO DE BARRA DE ALTA RESISTÊNCIA TRIM HD BAR NOTA: INSTALAÇÃO DA PLATAFORMABAR NOTA: ABRIR O FECHO DE CORRER E VOLTAR A NOTA: Instruction # 21000159B - page 39 of 58...
  • Page 40 Instruction # 21000159B - page 40 of 58...
  • Page 41 SVENSKA Instruction # 21000159B - page 41 of 58...
  • Page 42 SVENSKA Instruction # 21000159B - page 42 of 58...
  • Page 43 SVENSKA POZNÁMKA: OBS: INNEHÅLL OBSAH OBS: POZNÁMKA: OBS: POZNÁMKA: JETSTREAM-INSTALLATION OBS: OBS: POZNÁMKA: POZNÁMKA: POZNÁMKA: Instruction # 21000159B - page 43 of 58...
  • Page 44 SVENSKA INSTALLATION AV HD-BAR OBS: POZNÁMKA: OBS: POZNÁMKA: TRIMMA HD BAR-INSTALLATIONEN OBS: POZNÁMKA: INSTALLATION AV PLATFORM TIPS: OBS: POZNÁMKA: OBS: POZNÁMKA: Instruction # 21000159B - page 44 of 58...
  • Page 45 SVENSKA Instruction # 21000159B - page 45 of 58...
  • Page 46 Instruction # 21000159B - page 46 of 58...
  • Page 47 Instruction # 21000159B - page 47 of 58...
  • Page 48 Instruction # 21000159B - page 48 of 58...

  • Page 49: Avertissements Importants

    AVERTISSEMENTS IMPORTANTS Instruction # 21000159B - page 49 of 58...

  • Page 50: Advertencias Importantes

    ADVERTENCIAS IMPORTANTES Instruction # 21000159B - page 50 of 58...
  • Page 51 • Før start på alle køreture. • Efter at have kørt en kort strækning efter montering af bagagebærer eller last. • Med jævne mellemrum på længere ture. • Hyppigere i ujævnt terræn. • Efter afbrydelse af en køretur, hvor køretøjet var uden opsyn (tjek for skader på...
  • Page 52 TÄRKEITÄ VAROITUKSIA AVERTISSEMENTS IMPORTANTS • Avant le début de tout trajet. • ennen ajon alkamista • Après avoir roulé sur une courte distance après l’installation d’une • ajettuasi lyhyen matkan telineen tai kuorman asennuksen jälkeen barre de toit ou d’une charge. •...

  • Page 53: Avvertenze Importanti

    AVVERTENZE IMPORTANTI • Vor dem Beginn einer Fahrt. • Nach einer kurzen Strecke nach der Installation des Regals oder der Ladung. • Auf längeren Stecken in regelmäßigen Abständen. • In unwegsamem Gelände öfter. • Nach einer Fahrtunterbrechung, bei der das Fahrzeug Instruction # 21000159B - page 53 of 58...
  • Page 54 Instruction # 21000159B - page 54 of 58...
  • Page 55 Instruction # 21000159B - page 55 of 58...
  • Page 56 ADVERTENCIAS IMPORTANTES Instruction # 21000159B - page 56 of 58...
  • Page 57 Instruction # 21000159B - page 57 of 58...
  • Page 58 YAKIMA PRODUCTS, INC. 4101 KRUSE WAY LAKE OSWEGO, OR 97035-2541 888.925.4621 yakima.com/support YAKIMA AUSTRALIA PTY. LTD 17 Hinkler Court Brendale QLD 4500 Australia 1800-143-548 www.yakima.com.au www.yakima.co.nz www.yakima.eu Instruction # 21000159B - page 58 of 58...
