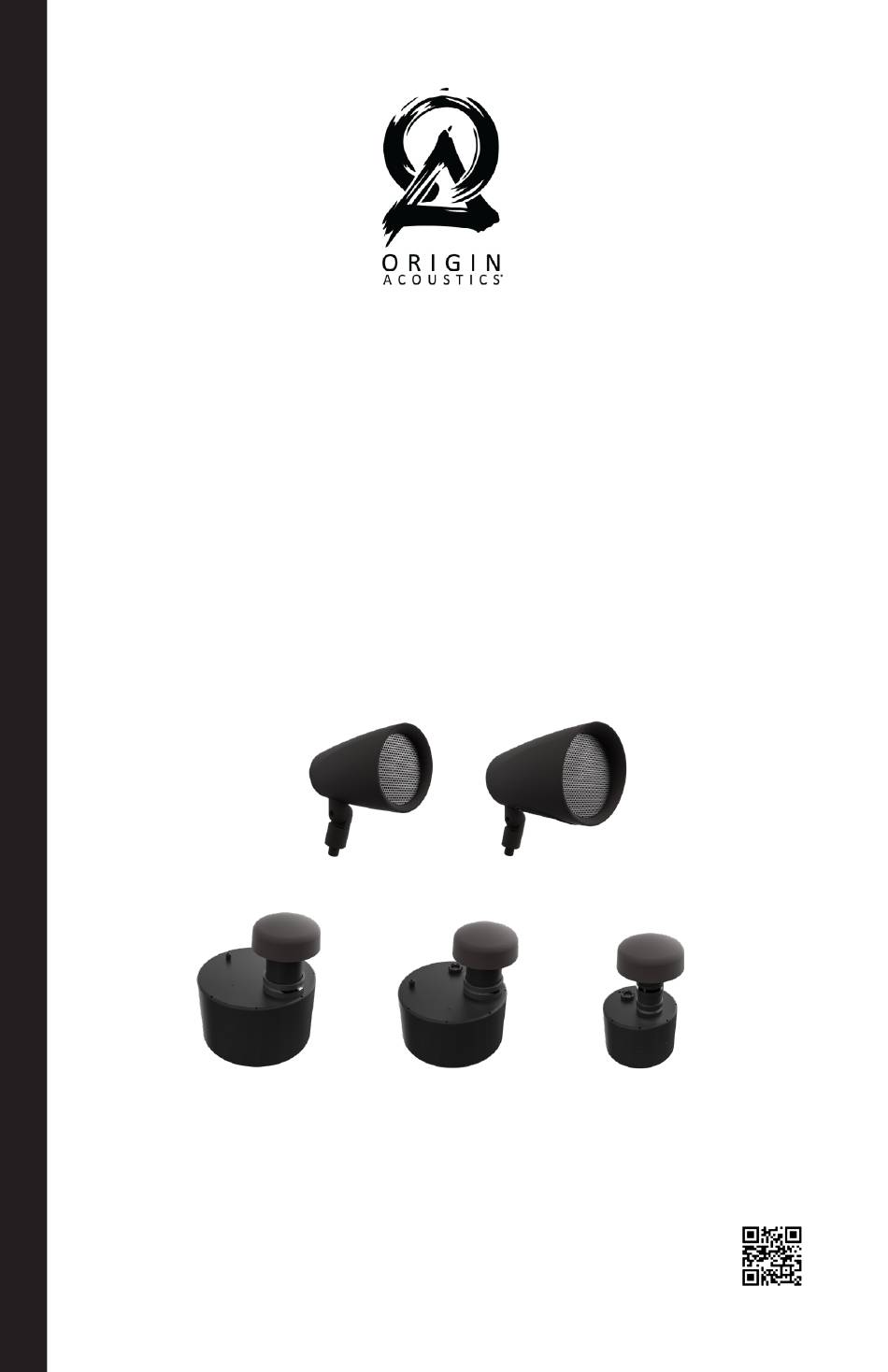

LANDSCAPE 70V
SATELLITES & SUBWOOFERS•INSTALLATION MANUAL
LS44
LS64
OSUB12
OSUB10
OSUB8
LS64 • LS44 • OSUB12 • OSUB10 • OSUB8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Landscape 70V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Origin Acoustics Landscape 70V

  • Page 1 LANDSCAPE 70V SATELLITES & SUBWOOFERS•INSTALLATION MANUAL LS44 LS64 OSUB12 OSUB10 OSUB8 LS64 • LS44 • OSUB12 • OSUB10 • OSUB8...
  • Page 2: Table Of Contents

    Table of Contents 1. Introduction 2. Specifications 3. Recommended Tools 4. Wire Recommendation 5. Speaker Wire Tips 6. System Planning 6a. Speaker Location 6b. Subwoofer Location 7. 70V Wiring & Setup 7a. 70V Installation Notes 7b. Mono or Stereo Setup 7c.
  • Page 3: Introduction

    Thank you for purchasing the Landscape LS64, LS44 Speaker and/or OSUB12, OSUB10, OSUB8 Subwoofer. At Origin Acoustics, we take pride in providing you with a high quality product. All of Origin Acoustics’ speakers are designed to have excellent sound quality, longevity, and a simple installation process.
  • Page 4: Specifications

    ø 12 13/ 3 2” x 21 3/ 1 6 H Dimensions (ø 451 x 597 H mm) (ø 400 x 546 H mm) (ø 315 x 538 H mm) Origin Acoustics Mission Inn Rotunda Origin Acoustics 3649 Mission Avenue, 1st Floor Riverside, CA 92501...
  • Page 5: Recommended Tools

    3. Recommended Tools • Direct Burial Wire • Wire Stripper • Shovel • Speaker Wire • Measuring Tape • Screwdrivers 4. Wire Recommendation The gauge of wire used can have an impact on the performance of your speakers. Use a multi-stranded wiring designed for amplifier to speaker connections. Which gauge to select depends on the length of wire to be used on any particular speaker.
  • Page 6: System Planning

    colors or patterns are used. You can choose whichever color of wire you want to be positive and negative as long as you remain consistent throughout the install. On both your amplifier and your speaker the connectors will be identified as red for positive and black for negative.
  • Page 7: 6A. Speaker Location

    6a. Speaker Location Satellite speakers should be fairly Subwoofer evenly spaced and aimed so they Speakers cover the listening area uniformly. One satellite speaker will provide sound to about 250 to 500 sq ft, depending on your loudness requirements. Origin makes mounting hardware available so that you can easily and securely locate satellite speakers on the...
  • Page 8: Wiring & Setup

    7. 70V Wiring & Setup • Use 1 SEPARATE wire run for: SUBWOOFERS • Use ANOTHER wire run for: LS SATELLITES 7a. 70V Installation Notes • THE SUBWOOFERS AND SATELLITES WILL BE RUN IN PARALLEL. This means the positive connection on the amplifier will be connected to the positive connection on speaker 1, 2, 3, etc.
  • Page 9: 7C. 70V Hi-Z Wiring Diagram

    70V Hi-Z Example Wiring Diagram 4 X LS64 + 1 X OSUB12 HI-Z WIRING WITH PROA250.2 AMP (SET TO HI-Z 70V OUTPUT MODE) 4 X SAT + 1 SUB HI-Z WIRING WITH PROA250.2 EXAMPLE (LS64 ARE USING 50W TAP SETTING, OSUB12 IS SET TO 70V SW) Amp Output mode set to Hi-Z -70V [Bridge mode] •...
  • Page 10: 7D. 70V System Notes

    7d. 70V System Notes 70 Volt systems are advantageous when the design calls for multiple speakers from the same amplifier and/or long-distance wire runs. These LS & OSUB Collection 8Ω / 70V Landscape Speakers feature multiple taps off the transformer, adjusted by a rotary switch on the back face of the speaker.
  • Page 11 WARNING: THE Ω POSITION CANNOT BE USED WITH A 70V AMPLIFIER AS IT WILL DAMAGE THE CROSSOVER & SPEAKER. Should you be uncomfortable designing or installing a 70V system, or if you have any questions, please contact our Technical Assistance Team at Origin Acoustics. See page 16 for Contact Information.
  • Page 12: 7E. Small System: Lo-Z Wiring Guidance

    Small System: Lo-Z Example Wiring Diagram For a smaller system if you are connecting a 4.1 system, then you will need to use a 4 ohm stable amplifier, and all speakers and subwoofer must be set to 8 ohm. If your system is a 2.1 system your standard AV amplifier will power the speakers and subwoofer set to 8 ohm.
  • Page 13: 8A. Satellites Installation & Tap Selection

    8a. Satellites Installation & Tap Selection Install the satellite speakers with their mounts. (Depending on the location and type of mount, you may want to connect the wires to the satellite speakers first.) To aim the satellite speaker up and down, loosen the screw on the pole until the satellite speaker can be aimed, and then tighten it when it’s facing the appropriate direction.
  • Page 14: 8B. Subwoofers Installation & Tap Selection

    8b. Subwoofers Installation & Tap Selection When you’ve decided on a subwoofer location, you’re ready to dig its hole. OSUB8: 14” diameter, 15” deep OSUB10: 20” diameter, 15” deep OSUB12: 22” diameter, 17” deep Use loose dirt to level the subwoofer. The subwoofer shouldn’t be in contact with large rocks or large empty holes.
  • Page 15: 8C. Optional Drain Plug

    8c. Optional Drain Plug The OSUB loudspeaker come with a drain plug inserted at the bottom of its sub- woofer enclosure. If there is water ingress for any unavoidable reason, removing the drain plug will allow for water to drain out. The drain plug is easily removable with a utility knife.
  • Page 16 OPTION 2: DRAIN PLUG IS REMOVED FROM THE SUB ENCLOSURE This option is recommended: • In applications with dry soil where occasional water may accidentally enter the enclosure. Use of gravel and sand will allow any water that gets into the sub enclosure to properly escape.
  • Page 17: Troubleshooting

    9. Troubleshooting If possible, it’s often good to try to isolate the problem first. For example, if you’re playing a DVD on a television and there’s no sound, try connecting an MP3 player to the system to see if that works. If it does work, then the problem is with the television, DVD player, or the cables connecting them.
  • Page 18: Technical Assistance

    If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return attempts. This way we can determine if the issue can be resolved without returning the product, or if needed we can provide instructions and support for the return process.
  • Page 19: Limited 5 Year Warranty

    If the product is determined to be defective, it will be repaired or replaced at Origin Acoustics’ discretion. If the product must be replaced yet it is no longer manufactured, it will be replaced with a model of equal to or greater value that is the most similar to the original.
  • Page 20: Return Process

    Before making any return attempts, it is required that you first contact Origin Acoustics customer support team. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging.
  • Page 21 07-18-24 • 6975 S Decatur BLVD, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461 ©2024 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
