OttLite CSY53CPC Manual

H

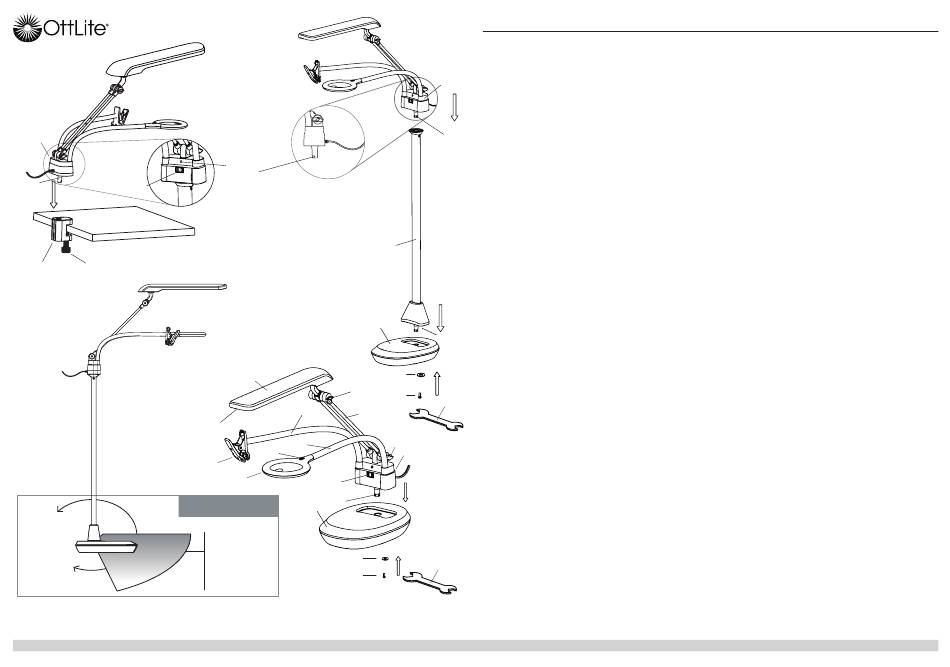

Figure 3
Figura 3
G
V
J W
FIGURE 1 / FIGURA 1
DO NOT USE SHADE
IN THIS AREA
NO UTILICE LA PANTALLA
EN ESTA AREA
NE PAS PLACER L'ABAT-
JOUR DANS CETTE ZONE.
Ultimate LED 3-in-1 Creative Station with Magnifier
CSY53CPC CSY53CPC-SHPR OTTCSY53CGC
INS250837
Figure 2
Figura 2
INDENT
L'ENCOCHE
L
MUESCA
G
B
A
K
M
U
O
P
R T
S
R
Q
V
G
A
Usable area for shade
Area útil para la
D
pantalla
Zone sécuritaire pour
E
l'abat-jour
ENGLISH
CONGRATULATIONS!
You've purchased the finest in natural lighting technology with your new OttLite
PRODUCT REGISTRATION FORM
Please complete the enclosed Product Registration Form and return it today by mail, or
register online by going to: www.OttLite.com/warranty.
H
WARNING: To prevent electric shock, make sure the lamp is not plugged in until all
assembly steps are complete.
CAUTION: TIP HAZARD
DO NOT MOVE SHADE OR ACCESSORIES outside of the shaded area as shown in
Figure 1. Shade and accessories must be kept within the shaded area and must align
in the same forward-facing direction as the base.
G
LAMP ASSEMBLY
Your Ultimate 3-in-1 Craft Lamp can be used as a Floor lamp, Table lamp or Clamp-On
lamp. For proper function of lamp see Operation.
FLOOR USE
1. Remove lamp from packing placing the base (A) on a flat steady surface (the floor).
2. Remove bolt (E), flat washer (D), and wrench (F) from plastic bag.
3. Firmly insert dowel (C) of pole (B) into the hole located in the base (A).
4. Insert the bolt (E) through flat washer (D) and finally into the recessed hole in the bottom
of the base (A), as indicated in the diagram.
5. Using the enclosed wrench (F), tighten the bolt (E) securely by turning in a clockwise
direction.
6. Assemble shade assembly (H) by inserting dowel (G) into the hole of upper pole (B).
IMPORTANT: To lock dowel (G) into upper pole (B) make sure indent located in the front
of dowel is "coupled" with inner "tab". The shade assembly (H) should be flush with
upper pole (B) and free to rotate. Dowel indention can be easily seen in Figure 2.
TABLE USE
1. Remove lamp from packing placing the base (A) on a flat steady surface (the table).
2. Remove bolt (E), flat washer (D), and wrench (F) from plastic bag.
3. Assemble shade assembly (H) by inserting dowel (G) into the hole of base (A).
4. Insert the bolt (E) through flat washer (D) and finally into the recessed hole in the
bottom of the base (A), as indicated in the diagram.
C 5. Using the enclosed wrench (F), tighten the bolt (E) securely by turning in a clockwise
direction.
CLAMP-ON USE
1. Attach clamp (J) to table, shelf or other strong, solid surface. Secure the clamp (J) by
turning screw (W) clockwise by hand until clamp is fastened tightly.
D
2. Assemble shade assembly (H) by inserting dowel (G) into the hole of the clamp (J). The
shade assembly (H) should be flush with clamp (J) and free to rotate.
E
F
OPERATION
1. To position shade (K), turn wingnut (M, N) counter-clockwise to loosen. Adjust shade (K)
to desired position and tighten wingnut (M, N) by turning clockwise.
DO NOT move arm (O) with wingnuts tightened and DO NOT overtighten wingnuts.
2. Shade (K) can be rotated side to side about its neck. DO NOT attempt to rotate shade
N 360 degrees.
H
3. This lamp includes an LED lighted magnifier (Q) and clip (R). Adjust position of magnifier
and clip by grasping flex-neck (T, U) and reposition.
4. To prevent tipping when using Table or Floor mount, keep weight of shade assembly,
LED lighted magnifier, and clip over the long part of the base. See Figure 1.
5. Plug the lamp into a standard 120V outlet.
6. Turn the lamp ON & OFF by using power switch (L). NOTE: This lamp provides 3 levels
of brightness.
To power LED settings, slightly touch the switch (E) to achieve the following:
• turn lamp "ON" to 1st brightness setting; touch the switch "once"
• for 2nd brightness setting; touch the switch "two-times"
• for 3rd brightness setting; touch the switch "three-times"
• to turn lamp "OFF"; touch the switch "four-times".
7. Turn the LED lighted magnifier ON or OFF by sliding switch (S) UP or DOWN.
F
8. The auxiliary outlet (V) located in the base of the shade assembly is available for use
with a two prong, polarized 120V tool of less than 700 watts. See Figure 3. Outlet (V) is
not controlled by the lamp switch and can be used when the lamp is turned OFF.
CAUTION:
INDOOR USE ONLY. NEVER LEAVE THE MAGNIFIER LENS
UNATTENDED IN DIRECT SUNLIGHT OR WHERE LIGHT CAN SHINE THROUGH IT AS
THIS CAN POSE A RISK OF FIRE.
PL-0184
Ultimate LED 3-in-1 Creative Station with Magnifier
SAFETY WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC
product.
®
SHOCK, OR INJURY TO PERSONS
1. Turn off/unplug and WAIT UNTIL SHADE (K) IS COOL before handling.
2. The LED light panel (P) might get hot after several hours of continuous use, DO NOT place
your hands directly on LED light panel.
3. Never use with an extension cord unless the plug can be fully inserted into the receptacles
in the extension cord.
4. Do not alter the plug.
5. The lamp head included with this unit cannot be replaced by the consumer.
6. INDOOR USE ONLY.
NOTE: The important safety instructions appearing in this instruction sheet are not meant
to cover all possible conditions and situations that may occur. It must be understood that
common sense, caution, and care must be used with any electrical product.
CAUTION!
IF THE EXTERNAL FLEXIBLE CABLE OR CORD OF THIS
LUMINAIRE IS DAMAGED, IT SHALL BE EXCLUSIVELY REPLACED BY THE
MANUFACTURER OR ITS SERVICE AGENT OR A SIMILAR QUALIFIED PERSON IN
ORDER TO AVOID A HAZARD.
CAUTION!
THE LIGHT SOURCE OF THIS LUMINAIRE IS NOT REPLACEABLE;
WHEN THE LIGHT SOURCE REACHES ITS END OF LIFE THE WHOLE LUMINAIRE SHALL
BE REPLACED.
FCC PART 15
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to pro-
vide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that the interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that of
the receiver.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CAUTION: Any change or modification to product not expressly recognized by OttLite voids
OttLite's responsibility for proper function of produc
CAN ICES-005 (B)/ NMB-005 (B)
Accessories: Wrench
t.
REV040225
