Access Power Controller Boards
Installation Manual
Model
Output Fuse Type
PD-4BTQ
Blade
PD-4PTQ*
PTC
PD-8BTQ
Blade
PD-8PTQ*
PTC
*
Special order only
ENFORCER 4- and 8-Output Access Power Controller Boards centralize power sources and give
individual control of locking devices, such as maglocks, electric shear locks, door strikes, deadbolt
locks, and more. Outputs are individually controllable, individually fused, with individual status
LEDs, and operate in fail-safe or fail-secure modes. They include auxiliary supervision relays,
power failure supervision relays, and wet and dry trigger inputs for emergency activation.
 For 12/24 VAC/VDC operation
 Individual output relays (10A@24VDC), individually fused, fuses rated at 3.0A (PTC@2.5A)
 Each individually controlled and can operate in both fail-safe and fail-secure modes
 Individual status LEDs for each output and for emergency input
 Auxiliary supervision relay (1A@28VDC)
 Equipped with dry and wet trigger inputs (blade versions only)
 Auxiliary interface enable emergency egress, alarm monitoring, or triggers other devices
 Includes auxiliary interface disconnect, individually selectable for each output
 Compatible with ENFORCER Access Control Power Supplies

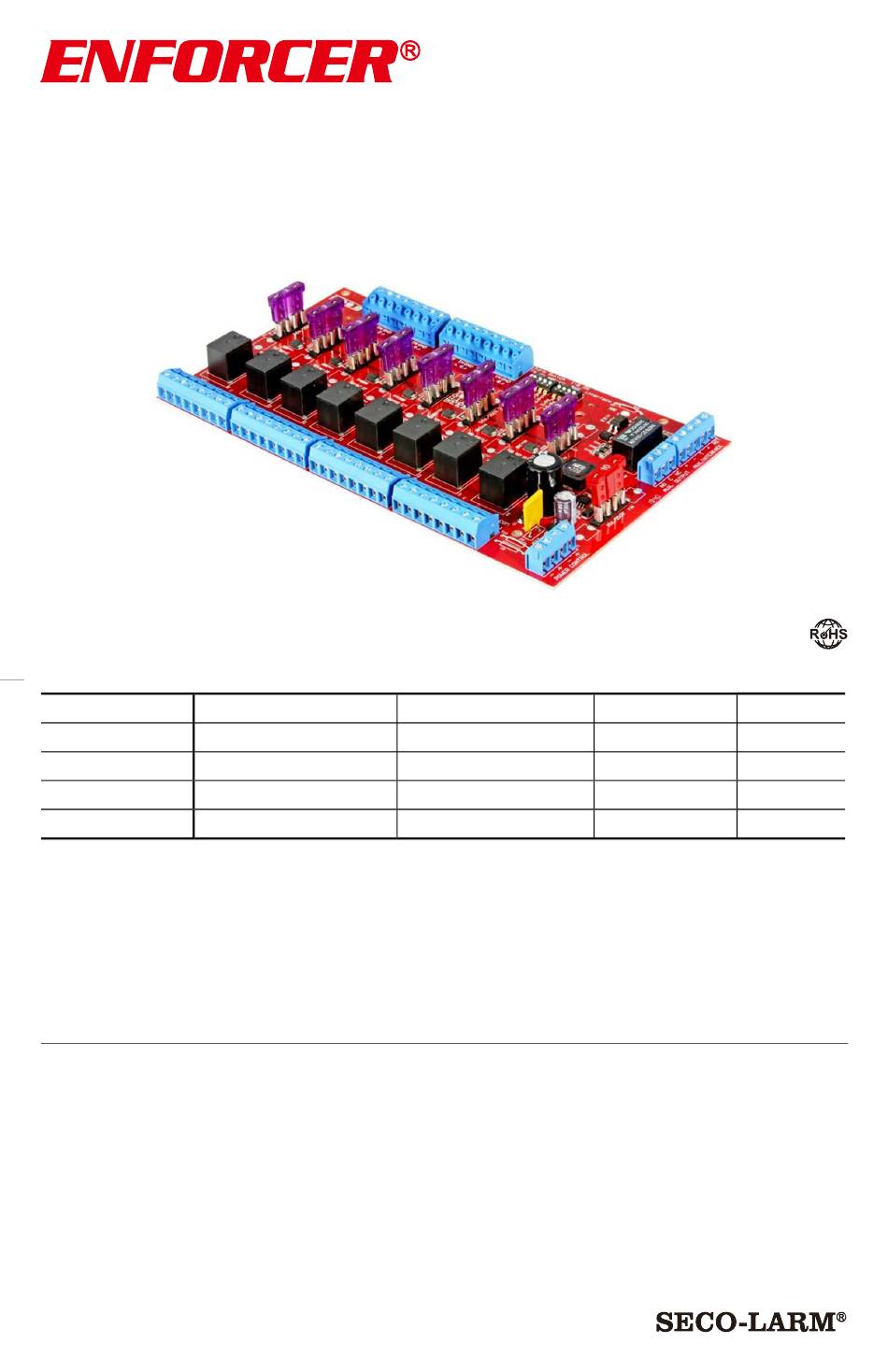

PD-8BTQ shown
Output Fuse Rating
3.0A
2.5A
3.0A
2.5A
No. of Outputs
Main Fuse
4
10A
4
10A
8
10A
8
10A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PD-4BTQ and is the answer not in the manual?

Questions and answers

Summary of Contents for ENFORCER PD-4BTQ

  • Page 1 2.5A Special order only ENFORCER 4- and 8-Output Access Power Controller Boards centralize power sources and give individual control of locking devices, such as maglocks, electric shear locks, door strikes, deadbolt locks, and more. Outputs are individually controllable, individually fused, with individual status LEDs, and operate in fail-safe or fail-secure modes.
  • Page 2: Parts List

    8.9-oz (252g) 9.1-oz (257g) *Special order only Overview Cut Aux. Interface jumper for polarity reversal input 4-Output Boards Output from Aux. Interface (intact=wet, cut=dry) (PD-4BTQ shown) fuses INTERFACE Aux. Interface LED Aux. Interface – Control DIP Auxiliary Interface Turn Switch 1-4 ON to...
  • Page 3: Terminal Overview

    Access Power Controller Boards Overview (Continued) 8 Output Boards (PD-8BTQ shown) Output Aux. Interface Aux. Cut Aux. Interface jumper for polarity Fuses reversal input from Aux. Interface control DIP Interface Switches (intact=wet, cut=dry) – AUX INTERFACE Turn Switch 1-8 ON to deactivate AUX INTERFACE Auxiliary Interface –...
  • Page 4: Installation Notes

    1. Mount the board in a supply box, making sure to use compatible spacers between the board and the metal back (see pg. 8 for ENFORCER Access Control Power Supply instructions). 2. Connect the main power supply to the power controller board terminals marked Power.
  • Page 5 Access Power Controller Boards Installation (Continued) iv. For fail-safe operation, connect the powered device positive input to the NC terminal. v. For fail-secure operation, connect the powered device positive input to the NO terminal. c. Unswitched auxiliary power outputs (to provide power to card readers, keypads, etc.) i.
  • Page 6: Typical Application

    Access Power Controller Boards Typical Application PD-4BTQ shown Auxiliary Access Control Interface Control panel output Keypad relay Plate Panel (AICP) – + NO COM NC NO C NO COM NO C NC Output 4 fuse AUX INTERFACE removed – –...
  • Page 7 Access Power Controller Boards Wiring for Various Auxiliary Interface Control Panel Installations 1. For normally open, non-latching Fig. 1 Auxiliary Interface Control Panel – (AICP) input, connect an N.O. trigger to the INP + and T Aux. Interface N.O. Trigger –...
  • Page 8: Troubleshooting

    Access Power Controller Boards Installing in ENFORCER Access Control Power Supply For installation in an ENFORCER Access Fig. 6 Control Power Supply enclosure follow the steps below (see Fig. 6). Mounting holes 1. Place the Access Power Controller Board (APCB) inside the enclosure to note which four mounting holes match.
