Summary of Contents for TRUELOOK 4 Panel Mobile Surveillance Trailer

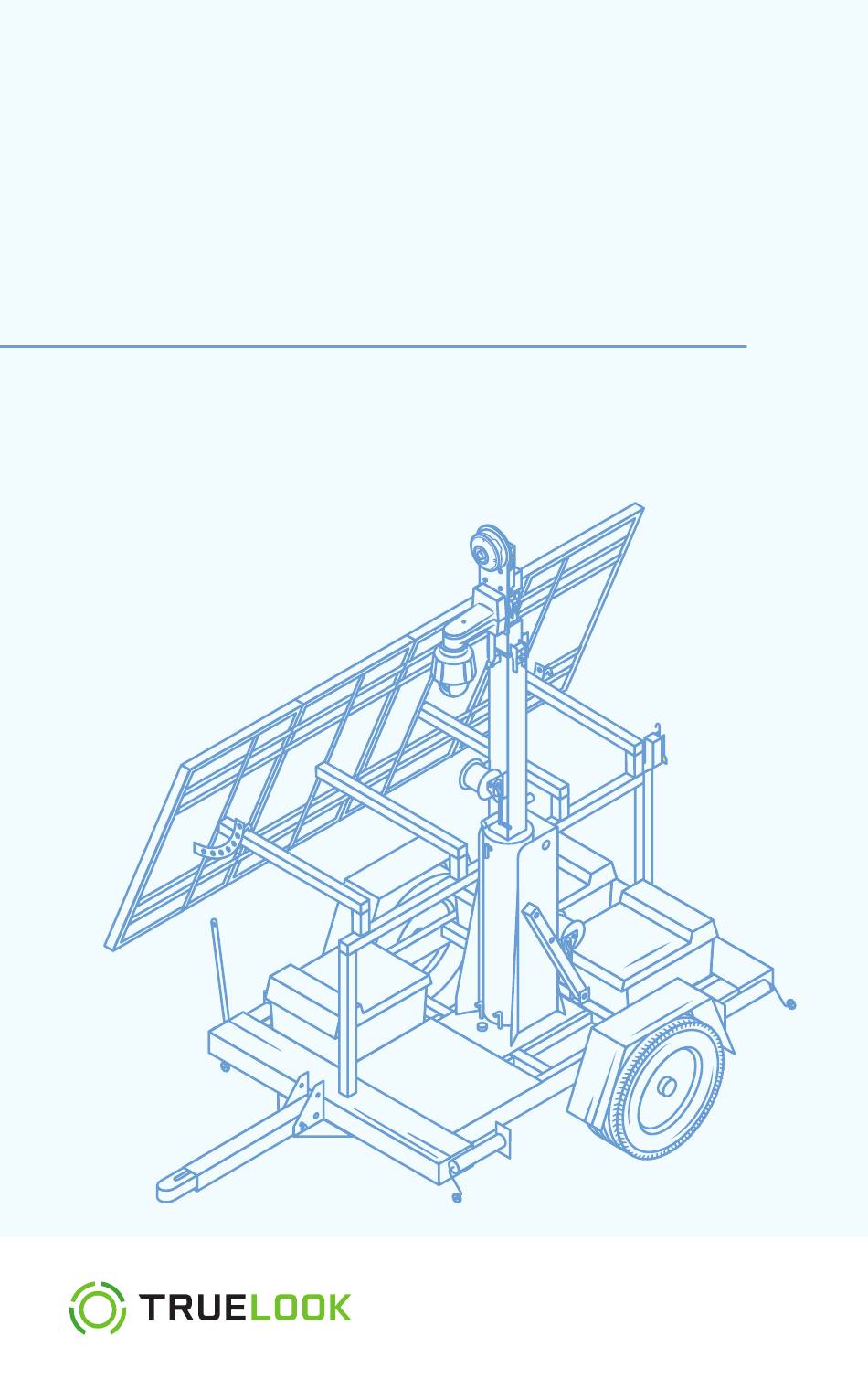

- Page 1 Mobile Surveillance Trailer Leasing Return Guide 4 Panel Model © TrueLook Construction Cameras...
- Page 2 Getting Started Assembled Unit Mast Mast raising winch Trailer tongue Mast extending winch Trailer tongue pin Mast rotation lock bolt Jack stands (4) Mast locking pins Bubble level Solar panels Trailer power input Panel angle adjuster bolt Yellow lock handle Battery boxes (3) Red lock pin Mast stabilization rollers...
- Page 3 Trailer Return This guide will walk you through how to prepare your trailer and security solution for shipment. If you haven’t already done so, reach out to TrueLook’s Leasing Department to schedule your leased trailer’s return by emailing leasing@truelook.com. Unlimited Support If you have any questions or issues regarding the preparation of this equipment for shipment, please don’t hesitate to contact...
- Page 4 Preparation Solar Panels Step 1 Angle the panels to lay vertical by removing the panel angle adjuster bolt and placing it in the corresponding hole.
- Page 5 Preparation Step 2 Secure the solar panels to the travel arms by attaching the pins.
- Page 6 Preparation Trailer Mast Step 1 Reposition the mast back to its original position by removing the rotation lock bolt and rotating the mast, aligning the red arrows to point at each other. Re-tighten the rotation lock bolt.
- Page 7 Preparation Step 2 Use the higher winch to lower the extendable portion of the mast until fully collapsed. Step 3 Remove the two locking pins from the holes at the base of the mast.
- Page 8 Preparation Step 4 Use the lower winch to position the mast to lie horizontal. Step 5 Insert the red lock pin and hook the wire to secure.
- Page 9 Preparation Step 6 Lift the yellow lock handle to position the metal hook, then lower the handle to secure the hook into the hole.
- Page 10 Preparation Uninstalling System: Cameras and TrueDeter Notice: Exact camera model may not be shown. Please contact TrueLook for assistance with your camera model if needed. Step 1 Remove the power cable from the 110V power outlet at the top of the mast and from the input on the bottom of the control box.
- Page 11 Preparation Step 2 Remove the mast adapter from the mast by loosening the bolts using a 19mm wrench (not included). Carefully slide the mast adapter off the trailer mast end. Thoroughly clean off all equipment using a microfiber Step 3 cloth.
- Page 12 Preparation Uninstalling System: TrueShield Warning: Safely removing the TrueShield unit requires at least two people. Do not attempt removing it alone. Step 1 Remove the power cable from the 110V power outlet at the top of the mast and from the outlet on the side of the TrueShield enclosure.
- Page 13 Preparation Step 2 Disconnect the horn and cameras from the unit by unscrewing the protective caps on the end of the connectors and unplugging the connectors.
- Page 14 Preparation Step 3 Screw the protective caps that are hanging from the enclosure onto each input.
- Page 15 Preparation Step 4 Remove the horn and cameras from the unit by loosening the wing nuts off the mounting studs. Store the wing nuts in the provided plastic bag...
- Page 16 Preparation Using a microfiber cloth, dry off all equipment Step 5 thoroughly to avoid water damage while in transit. Ensure all equipment is completely dry before placing inside the hard case. Place the lens caps onto the fixed cameras. Step 6...
- Page 17 Preparation Step 7 Separate the lower mounting bracket from the enclosure by removing the nuts on the back of the enclosure. Thread the nuts back onto the studs. Step 8 Carefully remove the enclosure from the trailer mast by sliding it off the upper mounting bracket. Leave the mast adapter with the mounting brackets installed on it attached to the trailer mast for return shipment.
- Page 18 Preparation Trailer Body Step 1 Put the trailer tongue down by unhooking the clip and removing the pin, then lowering the trailer tongue to be horizontal. Place the pin and hook the clip to secure. Step 2 Put jack stands up by pulling the pin and turning the jack stands horizontal to lie in line with the trailer.
- Page 19 Preparation Step 3 Chock all tires on both sides. Keep the tires chocked until the delivery team arrives for trailer pickup.
- Page 20 Packing Packing into Shipping Box: Cameras and TrueDeter Camera System and Control Box Pack into the provided shipping box (or comparable box) and add extra packing material to avoid shifting. Camera System Mast Adapter Control Box...
- Page 21 Packing Packing into Hard Cases: TrueShield Enclosure Carefully lower enclosure into hard case with the siren facing upward. Enclosure...
-
Page 22: Cameras And Accessories
Packing Cameras and Accessories Due to all models not having three cameras, there may be some blank spaces in the hard case. Nuts and Fixed Cameras Wing Nuts PTZ Camera Horn... - Page 23 Packing Securing Shipping Box: Cameras and TrueDeter Step 1 Using the provided length of strap, measure out the necessary length for two straps to secure the shipping box to the front left of the trailer. Step 2 Cut the lengths and attach the buckles to the straps.
- Page 24 Packing Step 3 Place the shipping box onto the front left of the trailer and secure it to the trailer with the straps threaded underneath the trailer body. Notice: You may have extra unused materials. Please wrap up any unused strap length and secure it with zip ties, then pack into a battery compartment.
- Page 25 Packing Securing Hard Cases: TrueShield Step 1 Using the provided 25 feet of strap, measure out the necessary length for two straps to secure the enclosure hard case to the front right of the trailer. Step 2 Cut the lengths and attach the buckles to the straps.
- Page 26 Packing Step 3 Place the enclosure hard case onto the front right of the trailer and secure it to the trailer with the straps threaded underneath the trailer body and through the handles on the hard case. Step 4 Repeat steps 1 and 2 to prepare two straps to secure the camera and accessories hard case on top of the front left battery compartment.
- Page 27 Packing Step 5 Place the camera and accessories hard case on top of the front left battery compartment and secure it to the trailer with the straps threaded underneath the trailer body. Note: You may have extra unused materials. Please wrap up any unused strap length and secure it with zip ties, then pack into a battery compartment.
- Page 28 Email pictures of the trailer from all four sides to Our team will confirm if it’s ready to leasing@truelook.com. ship or provide suggestions for more secure shipping. TRU 25019-15-01D3 © TrueLook Construction Cameras...
