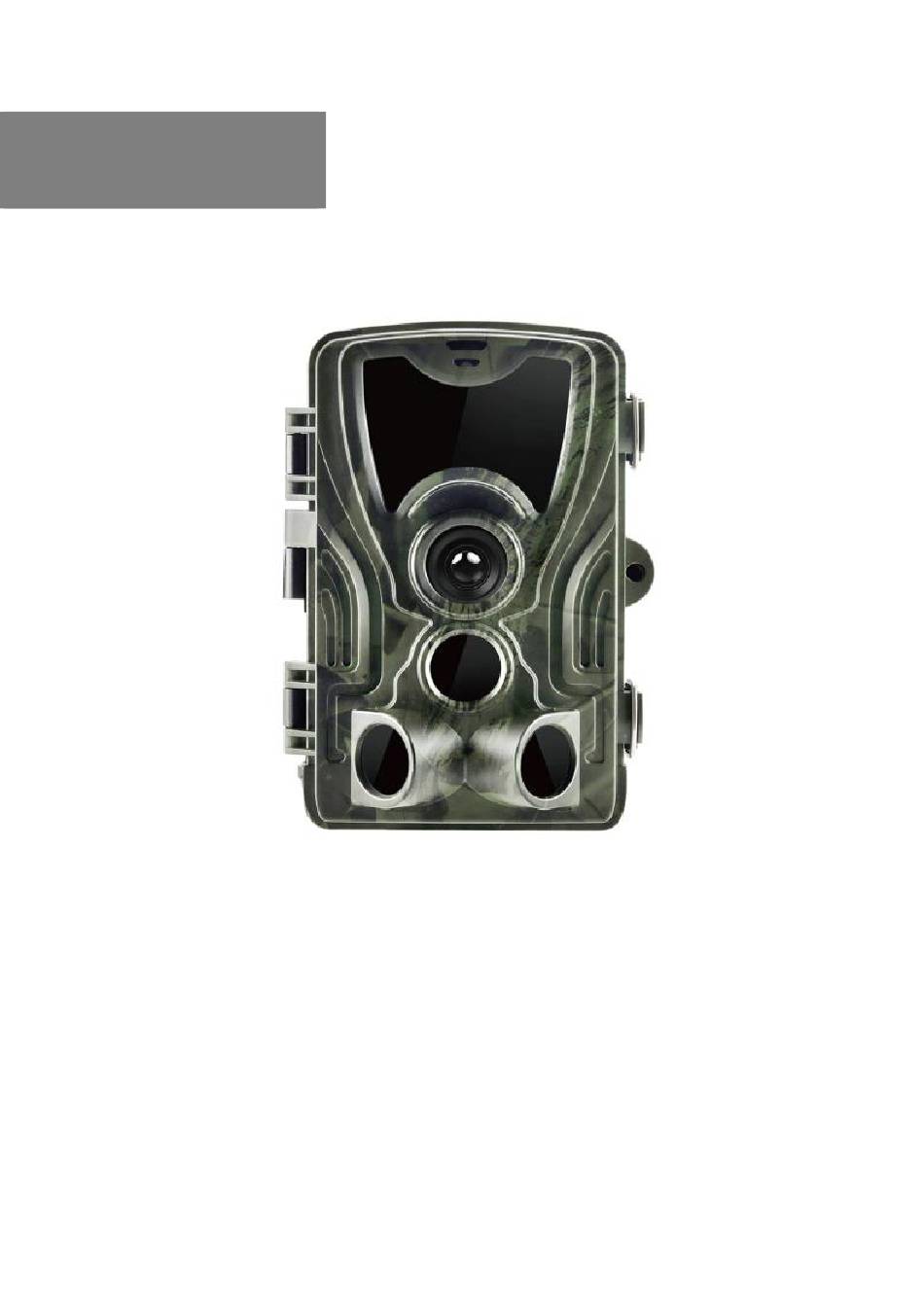

All manuals and user guides at all-guides.com BRAUN Photo Technik GmbH Scouting Cam BLACK550 Bedienungsanleitung...
Page 2
All manuals and user guides at all-guides.com Einleitung Einige Tipps vorweg Nachdem Sie den Schalter von „TEST“ auf „ON“ gestellt haben, sehen Sie einen Countdown von 15 bis 1 Sekunde, dann schaltet sich der Bildschirm aus. Das ist völlig normal. Treten Sie vor die Kamera, um zu prüfen, ob sie Fotos und Videos aufnimmt.
Page 3
All manuals and user guides at all-guides.com 1. Aufbau Unsichtbare Hochleistungs-LEDs PIR-Sensor LED-Anzeige Verriegelung LED-Anzeige Objektiv Mittlerer PIR-Bewegungssensor Seitlicher PIR-Bewegungssensor Umschalter Ein/Testmodus Micro-USB-Anschluss Batteriefach Micro SD-Karten- steckplatz Externer ¼“ Stativanschluss Stromanschluss...
Page 4
All manuals and user guides at all-guides.com Aufbewahrungsfach für 8 AA-Batterien Farbdisplay Einstellungstasten Modus umschalten Micro USB-Anschluss microSD-Kartensteckplatz ¼“ Stativanschluss Externer Stromanschluss Befestigungsgurt USB-Kabel...
Page 5
All manuals and user guides at all-guides.com 2. Parameter Bildauflösung 24/20/16/12/8/5/3/1 MP Videoauflösung 2.7K@20fps/1080p,720p,480p@30fps PIR Erfassungswinkel 120° Erfassungsreichweite 20 m IR-LEDs 940 nm (unsichtbar) Auslösezeit 0,5 s Wasserfestigkeit IP65 Einsatztemperatur -20°C - 70°C Speicherkarte microSD (max. 256 GB) Stromversorgung Batterien/Externes Netzteil Batterietyp 8x AA-Batterien Betriebsspannung...
Page 6
All manuals and user guides at all-guides.com 3. Funktionen Fotos (Standard) Modus Betriebsmodus einstellbar Videos Fotos und Videos 24 MP 20 MP 16 MP 12 MP Bildauflösung Bildauflösung einstellbar 8 MP 5 MP 3 MP 1 MP 1 Foto (Standard) 2 Fotos in Serie Fotoserie Anzahl der Fotos in Serie einstellbar...
Page 7
All manuals and user guides at all-guides.com English(Standard), Deutsch, Dänisch, Finnisch, Schwedisch, Spanisch, Französisch, Italienisch, Sprache Sprache einstellbar Niederländisch, Portugiesisch, Chinesisch, Japanisch, Ungarisch, Griechisch, Tschechisch, Norwegisch Bei aktivierter Endlosaufnahme stoppt die Kamera die Aufnahme nicht, wenn Endlosaufnahme die Speicherkarte voll ist, sondern löscht Aus (Standard) die ältesten Videos oder Fotos, um die Aufnahme fortzusetzen...
All manuals and user guides at all-guides.com (1) Sie haben beispielsweise eine Videolänge Minute Aufnahmeintervall von 30 Sekunden eingestellt. Wenn die Kamera ein Tier erkennt, beginnt sie, ein 1-minütiges Video aufzuzeichnen. Die Kamera erkennt jedoch nicht kontinuierlich. Wenn das Video beendet ist, erkennt die Kamera nicht sofort erneut.
Page 9
Batterien aus, damit wird Nachtsichtfunktion wiederhergestellt. 5. Meine Funktion „Ziel-Aufnahmezeit“ funktioniert nicht richtig! Überprüfen Sie, ob Sie auch die Funktion „Zeitraffer“ aktiviert haben und deaktivieren Sie diese gegebenenfalls. BRAUN Photo Technik GmbH Merkurstr. 8 72184 Eutingen Germany post@braun-phototechnik.de www.braun-phototechnik.de...
Page 10
All manuals and user guides at all-guides.com BRAUN Photo Technik GmbH Scouting Cam BLACK550 User Manual...
All manuals and user guides at all-guides.com Product Introduction Some Tips Before Everything After you turn the switch from „TEST“ to „ON“, you will observe a countdown from 15s to 1s, then the screen will shut down. This is completely normal. You can walk in front of the camera to check if it takes photos and videos.
Page 12
All manuals and user guides at all-guides.com 1. Structure Invisible IR LEDs PIR Sensor LED Indicator Latch LED Indicator Lens Central PIR Sensor Side PIR Sensor Power Switch/Test Mode Micro-USB Port Batteriefach Micro SD Port External Power Port ¼“ Screw Thread...
All manuals and user guides at all-guides.com Battery depot for 8x AA batteries Color Display Setup Buttons Mode Switch Micro USB Port microSD Port ¼“ Screw Thread External Power Port Mounting Strap USB Cable...
Page 14
All manuals and user guides at all-guides.com 2. Parameter Photo Resolution 24/20/16/12/8/5/3/1 MP Video Resolution 2.7K@20fps/1080p,720p,480p@30fps PIR Detection Angle 120° PIR Detection Distance 20 m IR-LEDs 940 nm (invisible) Trigger Time 0.5 s Waterproof Level IP65 Working Temperature -20°C - 70°C Storage Medium microSD (max.
Page 15
All manuals and user guides at all-guides.com 3. Function Photos (default) Mode You can choose the working mode Videos Photos & Videos 24 MP 20 MP 16 MP 12 MP Photo Resolution You can choose the photo resolution 8 MP 5 MP 3 MP 1 MP...
Page 16
All manuals and user guides at all-guides.com Suomi, Swedish, Spanish, French, Italian, Dutch, Portuguese, Chinese, Japanese, Hungarian, Greek, Cestina, Norsk If Endless Capture mode is on, the camera won’t stop recording when the Endless Capture memory card is full but will delete the Off (default) oldest videos or photos to keep recording continuously...
Page 17
All manuals and user guides at all-guides.com done, the camera will not detect immediately. It will detect again 30 seconds after the video in order to save battery. (2) „Target Recording Time“ is equivalent to a Timer. The camera only works within the set time period.
Page 18
5. My „Target Recording Time“ function doesn’t work! Please check if you have also turned on the „Time Lapse” function and deactivate it if necessary. BRAUN Photo Technik GmbH Merkurstr. 8 72184 Eutingen Germany post@braun-phototechnik.de...
Page 19
All manuals and user guides at all-guides.com BRAUN Photo Technik GmbH Scouting Cam BLACK550 Manual del usuario...
Page 20
All manuals and user guides at all-guides.com Información básica sobre el producto Antes que nada, algunos consejos Después de cambiar el interruptor de «TEST» a «ON», verá una cuenta atrás de 15 seg. hasta 1 seg. y, a continuación, se apagará la pantalla. Esto es completamente normal.
Page 21
All manuals and user guides at all-guides.com 1. Estructura LED invisible de alta potencia PIR Indicador LED Enganche Indicador LED Lente Sensor PIR central Sensor PIR lateral Interruptor de encendido/modo de prueba Puerto Micro USB Compartimiento de las pilas Ranura para tarjeta microSD Puerto para batería externa...
All manuals and user guides at all-guides.com Compartimento para 8 pilas AA Pantalla a color Botones de configuración Interruptor de modo Puerto micro USB Ranura para tarjeta micro SD Orificio para enganche del soporte ¼” Puerto para batería externa Correa para montaje Cable USB...
Page 23
All manuals and user guides at all-guides.com 2. Parámetro Resolución de fotografías 24/20/16/12/8/5/3/1 MP Resolución de vídeo 2.7k/1080p/720p/480p Ángulo de detección 120° Distancia de detección 20 m Longitud de onda del LED de luz de 940 nm (invisible) relleno Tiempo de activación 0,5 s Nivel de resistencia al agua IP65...
Page 24
All manuals and user guides at all-guides.com 3. Funcionamiento Fotografías (predeterminado) Modo Puede elegir el modo de trabajo Vídeos Fotografías y vídeos 24 MP 20 MP Resolución de Puede elegir entre varias resoluciones de 16 MP 12 MP fotografías fotografías 8 MP 5 MP 3 MP...
Page 25
All manuals and user guides at all-guides.com (predeterminado) Intervalo de Para seleccionar el modo de intervalo de Activado /Desactivado tiempo tiempo y la duración del intervalo. (predeterminado) English (predeterminado), Deutsch, Dansk, Suomi, Svenska, Español, Idioma Para seleccionar otro idioma Français, Italiano, Nederlands, Português,...
All manuals and user guides at all-guides.com cámara Desactivado (predeterminado) Restablecer los Restablecer todos los ajustes a los Sí ajustes ajustes originales No (predeterminado) Versión Versión del sistema (1) Podemos seleccionar, por ejemplo, 1 minuto de duración de vídeo y un retardo de disparo de 30 segundos.
Page 27
Cambie las pilas y volverá a funcionar la visión nocturna. 5. No funciona mi función de «Tiempo de grabación del objetivo». Compruebe si también ha activado la función "Lapso de tiempo" y desactívela si es necesario. BRAUN Photo Technik GmbH Merkurstr. 8 72184 Eutingen Germany post@braun-phototechnik.de...
Page 28
All manuals and user guides at all-guides.com BRAUN Photo Technik GmbH Scouting Cam BLACK550 Manuel de l’utilisateur...
All manuals and user guides at all-guides.com Présentation du produit Quelques conseils avant toute chose Après avoir basculé l’interrupteur de « TEST » à « ON », vous observerez un compte à rebours de 15 s à 1 s, puis l’écran s’éteindra. Ceci est tout à fait normal. Vous pouvez marcher devant la caméra pour vérifier si elle prend des photos et des vidéos.
Page 30
All manuals and user guides at all-guides.com 1. Présentation LED invisible haute puissance PIR Voyant Loquet Voyant Objectif Capteur PIR central Capteur PIR latéral Interrupteur d’alimentation/Mode test Port micro-USB Compartiment de la batterie Logement pour carte mémoire microSD Port d’alimentation externe Port du pied 1/4"...
Page 31
All manuals and user guides at all-guides.com Compartiment pour 8 piles AA Écran couleur Boutons de configuration Commutateur de mode Prise micro USB Fente pour carte microSD Port du pied 1/4" Port d’alimentation externe Courroie de fixation Câble USB...
Page 32
All manuals and user guides at all-guides.com 2. Paramètre Résolution photo 24/20/16/12/8/5/3/1 Mpx Résolution vidéo 2.7 K/1080p/720p/480p Angle de détection 120° Distance de détection 20 m Longueur d’onde de la LED d’appoint 940 nm (invisible) Temps de déclenchement 0,5 s Niveau d’étanchéité...
Page 33
All manuals and user guides at all-guides.com 3. Fonction Photo (par défaut) Vous pouvez choisir le mode de Mode Vidéo fonctionnement Photo et vidéo 24 Mpx 20 Mpx Résolution Vous pouvez choisir différentes 16 Mpx 12 Mpx photo résolutions photo 8 Mpx 5 Mpx 3 Mpx...
Page 34
All manuals and user guides at all-guides.com English (par défaut), Deutsch, Dansk, Suomi, Svenska, Español, Langue Pour définir une langue différente Français, Italiano, Nederlands, Português, 简体中文 繁體中文 日本語 Si le mode Capture sans fin est activé, la caméra ne s’arrête pas d’enregistrer lorsque la carte mémoire est pleine mais Activée Capture sans fin...
All manuals and user guides at all-guides.com paramètres Non (par défaut) Version Version du système (1) Par exemple, nous avons réglé la durée de la vidéo sur 1 minute et l’intervalle de prises de vue sur 30 secondes. Lorsque la caméra détecte un animal, elle commence à...
Page 36
(4) Veuillez vérifier si vous avez également activé la fonction « Time Lapse » et la désactiver si nécessaire. Veuillez vérifier si vous avez également activé la fonction « Time Lapse » et la désactiver si nécessaire. BRAUN Photo Technik GmbH Merkurstr. 8 72184 Eutingen Germany post@braun-phototechnik.de...
All manuals and user guides at all-guides.com Panoramica sul prodotto Alcune informazioni preliminari Dopo aver spostato l'interruttore da "TEST" a "ON", si osserverà un conto alla rovescia da 15 a un secondo, poi lo schermo si spegnerà. Ciò è perfettamente normale.
Page 39
All manuals and user guides at all-guides.com 1. Struttura LED invisibile ad alta potenza PIR Indicatore LED Chiusura Indicatore LED Obiettivo Sensore PIR centrale Sensore PIR laterale Interruttore/Modalità Test Porta micro USB Vano batteria Slot per scheda microSD Porta di alimentazione esterna Porta della manopola dello stativo ¼”...
Page 40
All manuals and user guides at all-guides.com Vano per 8 batterie AA di riserva Display a colori Pulsanti di configurazione Cambio di modalità Porta USB Slot per scheda micro SD Porta della manopola dello stativo ¼” Porta di alimentazione esterna Cinghia di fissaggio Cavo USB...
Page 41
All manuals and user guides at all-guides.com 2. Parametro Risoluzione foto 24/20/16/12/8/5/3/1 MP Risoluzione video 2.7 K/1080P/720P/480P Angolo di rilevamento 120° Distanza di rilevamento 20 metri Lunghezza d'onda LED luce di 940 nm (invisibile) riempimento Tempo di attivazione 0,5 s Grado di impermeabilità...
Page 42
All manuals and user guides at all-guides.com 3. Funzione Foto (imp. predefinita) È possibile scegliere la modalità Modalità Video operativa Foto e video 24 MP 20 MP È possibile scegliere tra varie risoluzioni 16 MP 12 MP Risoluzione foto foto 8 MP 5 MP 3 MP...
Page 43
All manuals and user guides at all-guides.com English (impostazione predefinita) Deutsch, Dansk, Suomi, Svenska, Español, È possibile selezionare la lingua Lingua Français, desiderata Italiano, Nederlands, Português, 简体中文 繁體中文 日本語 Se la modalità di acquisizione continua è attiva, la telecamera non interromperà...
All manuals and user guides at all-guides.com Sì Resetta tutto Ripristina le impostazioni di fabbrica No (imp. predefinita) Versione Versione del sistema (1) Impostiamo, ad esempio, la durata del video su 1 minuto e un ritardo di scatto di 30 secondi. Quando la telecamera rileva un animale, inizierà a registrare un video di 1 minuto.
Page 45
La visione notturna sarà nuovamente disponibile dopo aver sostituito le batterie. 5. Il "tempo di registrazione soggetto" non funziona. Accertarsi di aver attivata anche la funzione "Time Lapse", quindi impostare la durata dell'intervallo. BRAUN Photo Technik GmbH Merkurstr. 8 72184 Eutingen Germany post@braun-phototechnik.de...
