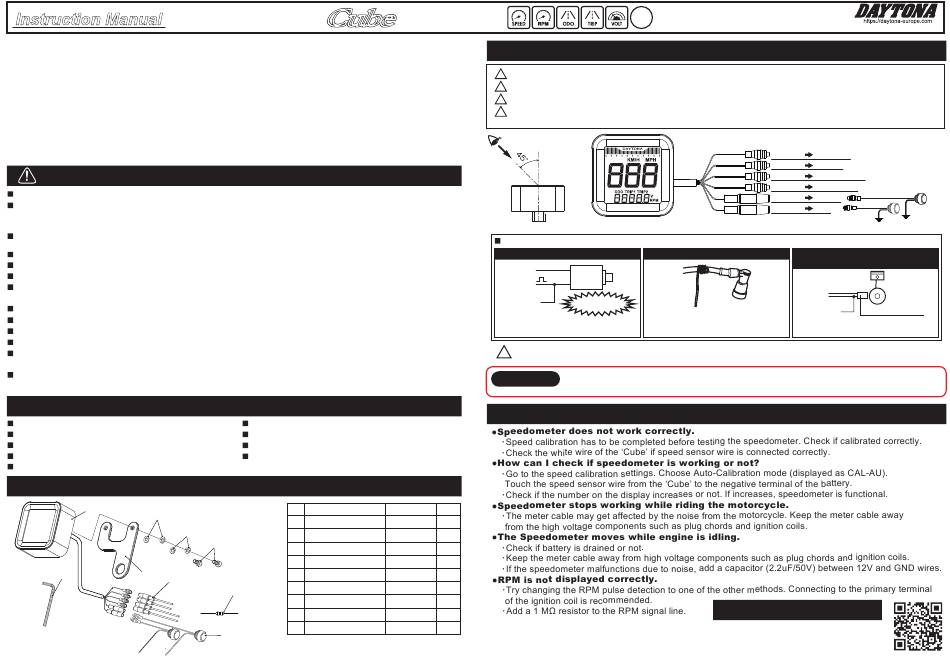

Daytona Cube Instruction Manual

Instruction Manual
DIGITAL SPEED & RPM METER
Thank you for choosing a high-quality DAYTONA 'Cube' display instrument. With proper installation
and connection, you will have long-lasting pleasure with this high-quality product when used as intended.
When installing, please make sure that the speed indicator is located in the immediate view of the driver.
Attach the housing securely to the enclosed bracket or mount with an at least equivalent holder permanently
to the bike. Do not use longer screws to connect the holder to the housing, as longer screws can damage
the instrument's internal components. Attach the instrument in a way that no part obstructs or restricts the steering.
Route the wiring in such a way, that the full steering angle works in both directions without hindrance
and no cables are pinched or under tension when the steering moves. Protect the cabling, also in the long term,
against chafing and damage during the constantly occurring steering movements.
Read this assembly and installation manual before installing and operating the display instrument.
Proper installation and electric connection requires technical expertise, special tools and skilled craftsmanship.
If you are unsure about the installation, have it done, for your own safety, by a trained mechanic.
CAUTION
Read all instructions before use.
Needs to purchase the optional speed sensor if the vehicle does NOT come with an electrical speed sensor.
Or use a converter (sold separately) that turns mechanical movement into electrical pulse, if the vehicle comes
with a mechanical speedometer cable. (See the optional parts section in this manual.)
If replaced with a 'Cube' gauge, the original speedometer indicator light must be replaced
with an appropriate external indicator light. (neutral, high beam, direction indicator)
Designed for a 12V system vehicle. 'Cube' gauges do NOT work with a 6V system or a battery-less system.
'Cube' gauges might not work normally when used together with other device that emits much noise.
Use 'Cube' gauges for the intended purpose of use.
'Cube' gauges is for universal use, so it needs wiring for installation. Do the wiring referring to the vehicle
owner's manual. (If you are not sure about installation, consult an experienced dealer.)
Do NOT disassemble 'Cube' gauges. It may be damaged and water may come in.
Do NOT leave 'Cube' gauges in hight heat when not used for a long time.
Do NOT hit, drop or give a shock on 'Cube' gauges. It may be damaged.
Avoid contact with gasoline, brake fluid or other chemicals. It may be damaged.
After installation, check to see if all the parts are correctly installed,
and to see if all the screws are properly tightened.
Inspect all installed parts after 100km driving. Periodical inspection is required every 500km(300mile).
If anything unusual found while driving, pull over at a safe place to check.
PRODUCT FEATURES
Digital speedometer and rpm-meter
Odometer (NOT Resettable) : 0-99,999km (mile)
Dual Trip Meter (Resettable) : 0.0-9,999.9km (mile)
RPM Meter : 10,000 or 20,000rpm selectable
Ability to connect to OEM speed sensor, if the vehicle is equipped with an electrical speed sensor.
COMPONENTS
①
⑥
⑤
②
⑧
③
Cube Cube Cube
50mm×50mm×25mm(1.97"×1.97"×0.98")
Voltmeter : DC8.0-18.0V
KM/H or MPH selectable
Power DC8-18V (regular 12V)
NO. DESCRIPTION
Gauge Unit
①
Bracket
②
④
Extension Wire Set
③
Cap Screw
④
Spring Washer
⑤
Washer
⑥
⑦
Resistor 1M ohm
⑦
HEX wrench
⑧
Setting switch
⑨
⑨
#80920
INSTALLATION
Wrong wiring may cause malfunction of the gauge. Make sure to have correct wiring.
!
Disconnect the ground wire from the negative post of vehicle's battery before installation.
!
The Red wire is to be connected to the wire that gives current when the main switch is turned on.
!
Any original indicator lights in the standard speedometer must be retained or replaced
!
by suitable external indicator lights.
Characters appear brightest when viewed at an angle of 45° from the LCD viewing plane.
RPM pulse detection <Three options>
From ignition coil
Pulse input
YELLOW
Connect the yellow wire to the
positive terminal/wire of the ignition coil
Connect RPM pulse correctly. Wrong wiring causes malfunction of the gauge.
!
If the RPM is unstable, insert the included "⑦ Resistance 1M ohm" into the RPM Pulse line.
Wiring alone will not make 'Cube' display correct speed or RPM values.
ATTENTION!
To calibrate and test your 'Cube' , please see the next page for instructions.
FAQ
REMARKS Q'TY
1
1
9 pcs 1set
2
M3x7
M3 2
M3
２
1/4W 1
1
2 pcs 1set
E
E-MARKED
★★★
From spark plug code
Ignition
Coil
Recommended.
Wind the yellow wire 5-6 times on the
spark plug code,and then tape to fix it.
●For the detailed information on
optional parts, please kindly visit our
website by scanning the QR code →
NOV.2023
RED ACC(12V)
BLACK GND(-)
WHITE
SPEED PULSE
⑨Setting switch
YELLOW RPM PULSE
or Option switch
BLUE MODE
GREEN SET
Ground
For
2000&up Harley-Davidson only
BLACK
RED
YELLOW
Crank Position Sensor
Connect the yellow wire to the red wire
of the vehicle's crank position sensor
OPTION
