Summary of Contents for Kogan KAH247TMSFA

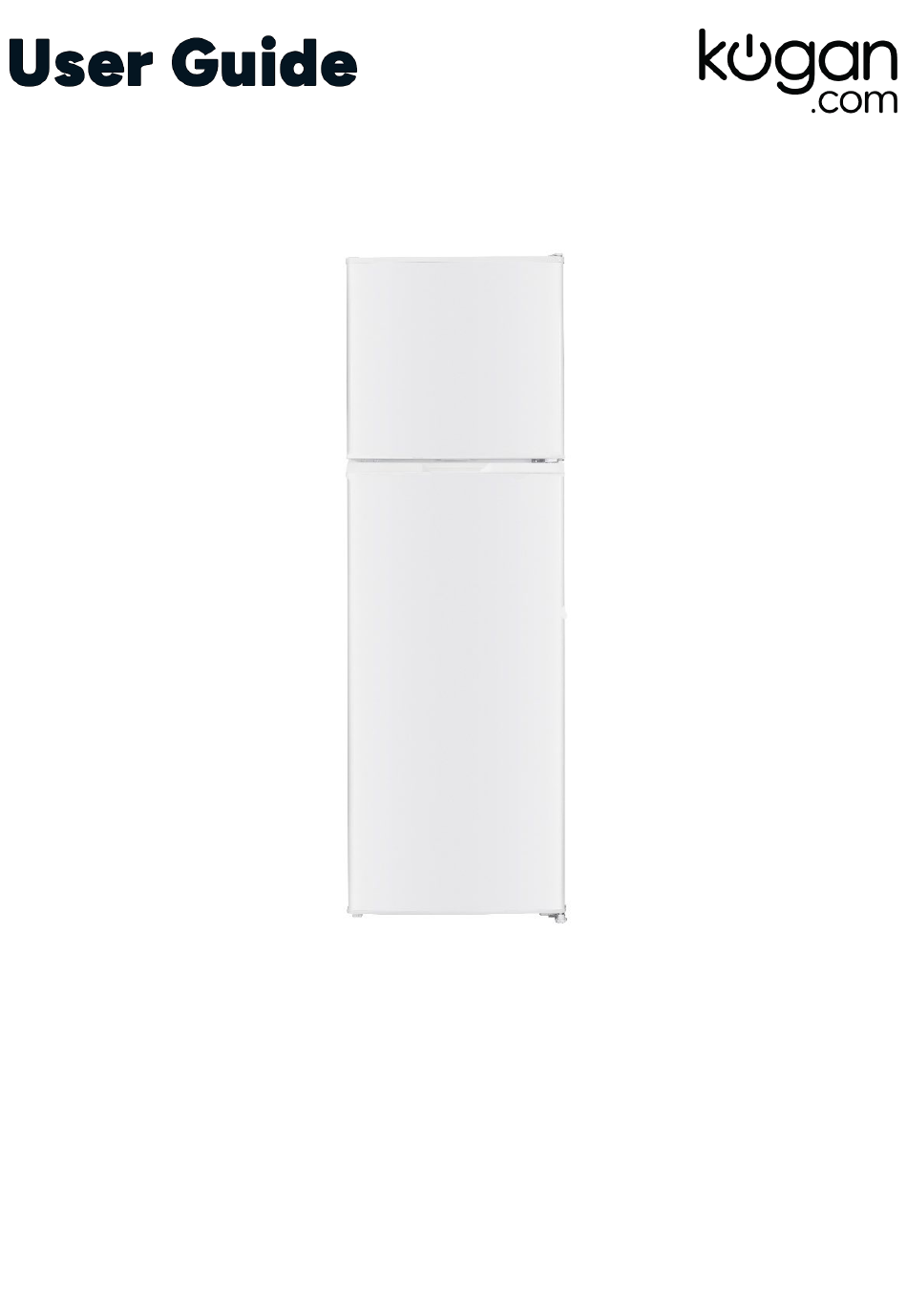

- Page 1 247L Top Mount Fridge KAH247TMSFA & KAH247TMSFB...
-
Page 2: Table Of Contents
Safety & Warnings Overview Installation Operation Cleaning & Care Troubleshooting... -
Page 3: Safety & Warnings
Kogan.com. • Do not damage the refrigerant circuit. • Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the Kogan.com. - Page 4 • Any electrical components (plug, power cord, compressor etc.) must be replaced by Kogan.com, a certified service agent or qualified service personnel. • The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied.
- Page 5 • Unpack the appliance and inspect it for any damage. Do not connect it to an electrical outlet if damaged. Contact help.Kogan.com for support. • Allow the appliance to stand upright for at least four hours before connecting it to power.
-
Page 6: Energy Saving
Service • If the appliance is damaged, cease use immediately and contact help.Kogan.com for support. • Servicing must be performed by an authorised Service Centre, and only genuine spare parts should be used. Energy Saving • Avoid placing hot food inside the appliance. -
Page 7: Overview
Overview Freezer Shelf Door tray Temperature control knob Temperature control knob Door tray Shelves Fridge Drawer Leveling feet... -
Page 8: Installation
Installation Space Requirement • Select a location without direct exposure to sunlight • Select a location with enough space for the refrigerator doors to open easily • Select a location with level (or nearly level) flooring • Allow sufficient space to install the refrigerator on a flat surface •... -
Page 9: Levelling The Unit
Levelling the Unit • To do this adjust the two levelling feet at front of the unit. • Leveling feet can be turned easily by slightly tipping the fridge. • Turn the leveling feet anticlockwise to lower the fridge, and clockwise to raise it. •... - Page 10 Australian/New Zealand electrical safety regulations. Consult a licensed electrician if necessary. • Kogan.com is not responsible for any issues arising from failure to follow these safety precautions. • This appliance complies with Australian and New Zealand electrical safety standards,...
- Page 11 Accessories Movable Shelves The walls of the fridge are equipped with runners so that the shelves can be adjusted and removed as desired. Positioning the Door Shelves • The door shelves can be placed at different heights so food packages of all sizes can be stored.
-
Page 12: Door Reversal
Door Reversal Note: If you are not confident in performing the door reserving procedure, consult a qualified trade professional. • Depending on the location of the refrigerator, you may require reversing the position of the door. • To avoid injury to yourself or your property, it is recommended that 2 people are present during the door reversal process. - Page 13 Procedure Carefully remove the top hinge cover using a flat blade screwdriver. Remove the fasteners from the top hinge using a Philips head screwdriver. Remove the hole cover from the opposite of the fridge using a flat blade screwdriver.
- Page 14 Move the core cover from the left to the right side. Carefully the lift the upper door and place it on a soft surface to prevent it from scratching. Remove the fasteners from the middle hinge using a Phillips head screwdriver. Carefully the lift the lower door and place it on a soft surface to prevent it from scratching.
- Page 15 Unscrew and remove the bottom hinge pin, flip the bracket over, and reinstall it. Unscrew Screw Reattach the bracket with the bottom hinge pin in place. Replace both adjustable feet and position the lower door correctly. 10. Unscrew the right middle stopper with the metal block from the bottom of the upper door.
- Page 16 12. Rotate the middle hinge 180° and transfer it to the correct position on the left. Insert the middle hinge pin into the upper hole of the lower door, then secure it with screws. 13. Install the upper door. Attach the upper hinge and secure it in place using the previously remove fasteners.
-
Page 17: Operation
Operation Before First Use • Before using the appliance for the first time, clean the interior and all internal accessories with lukewarm water and neutral soap, then dry thoroughly. • Do not use detergents or abrasive chemicals, as these will damage the finish. Freezer Temperature Setting •... -
Page 18: Food Storage
Food Storage Freezing Fresh Food • The freezer compartment is designed for freezing fresh food and storing frozen or deep-frozen food for extended periods. • Place fresh food in the bottom compartment for optimal freezing. • The maximum quantity of food that can be frozen within 24 hours is specified on the rating plate. - Page 19 Tips for Storing Frozen Food: • Ensure that commercially frozen food was properly stored by the retailer. • Transfer frozen food to the freezer as quickly as possible after purchase. • Minimise door openings and avoid leaving the door open for extended periods. •...
-
Page 20: Cleaning & Care
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by Kogan.com. • Never use a steam cleaner to clean the appliance. Moisture can accumulate in electrical components, increasing the risk of electric shock. - Page 21 Important: Certain substances, such as ethereal oils and organic solvents, can damage plastic components. Avoid contact with substances like lemon juice, orange peel juice, butyric acid, or cleaners containing acetic acid. • Do not use abrasive cleaners. • Remove all food from the freezer and store it in a cool, covered place. •...
-
Page 22: Troubleshooting
• Certain sounds, such as those from the compressor or refrigerant circulation, are part of normal operation. • If the issue persists after following the troubleshooting steps, contact help.Kogan.com for support. Problem Possible cause Solution The power cord is not Plug in the power cord. - Page 23 The appliance is not level. Re-adjust the feet. The appliance is touching Move the appliance a wall or another object. slightly. A component, e.g., a pipe, Unusual noises. at the rear of the If necessary, carefully appliance is touching bend the component out another part of the of the way.
- Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.Kogan.com.Kogan.com.
