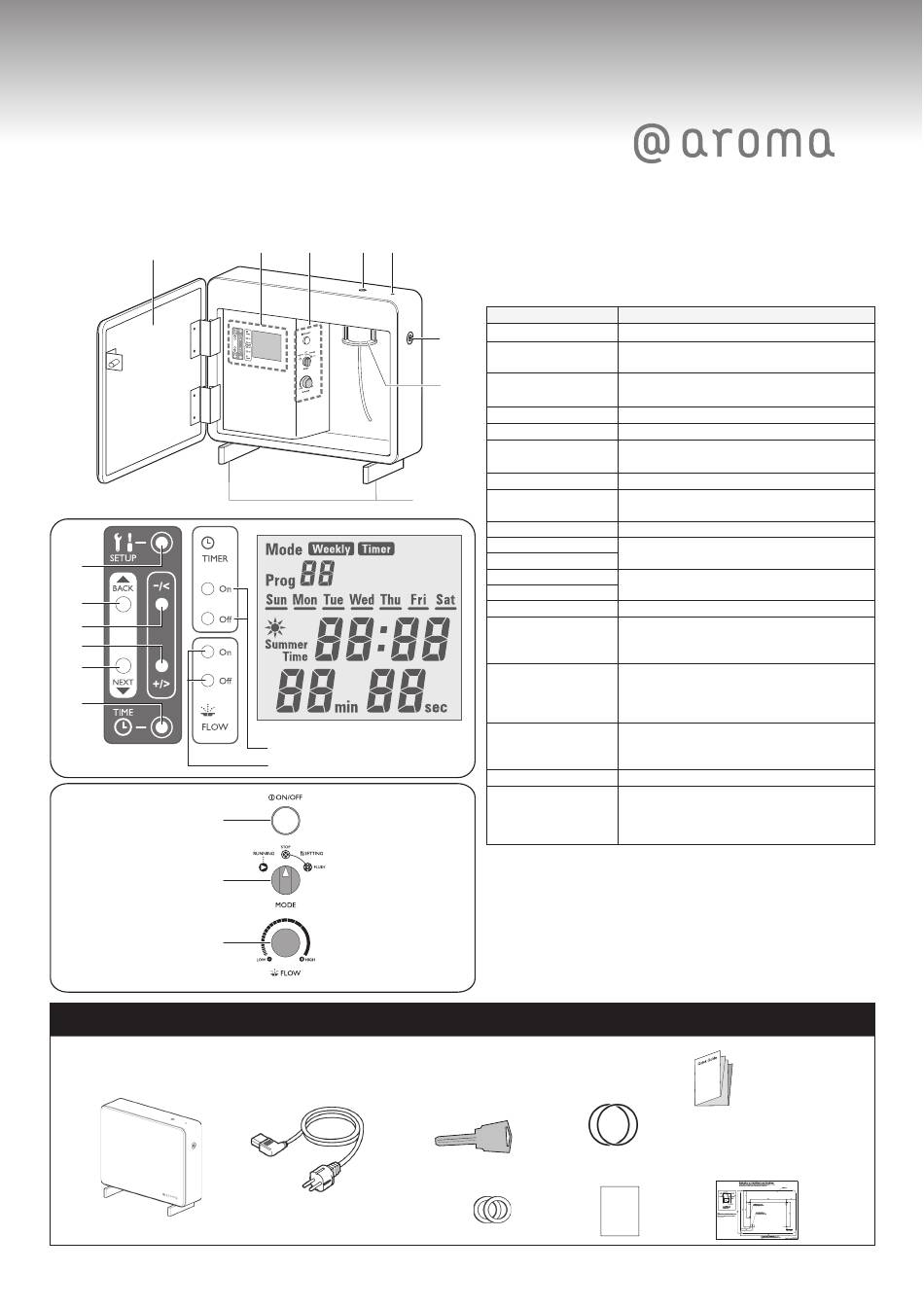

Aroma 145S Quick Manual

Professional diffuser
All in one type
145S/145W
(1)
(9)
(10)
(12)
(13)
(11)
(14)
(17)
(18)
(19)
Remove the main unit and accessories from the box and make sure you have everything.
Main unit (1 unit)
Note: The type of plug may differ from the
(2) (3)
(4) (5)
(8)
(15)
Operation panel
(16)
Setting buttons
Contents of the pack
Power cable (1 pc.)
picture above depending on where the
product was sold.
Quick Guide
Name
(1) Front door
(6)
(2) Operation panel
(3) Setting buttons
(7)
(4) Injection nozzle
(5) Power light
(6) Key cylinder
(7) Atomizer
(8) Legs
(9) SETUP button
(10) BACK button
(11) NEXT button
(12) -/< (UP button)
(13) +/> (DOWN button)
(14) TIME button
(15) TIMER On/Off light
(16) FLOW On/Off light
(17) Main power switch
(18) Mode selector switch
(19) Rotary switch
Before using this product, be sure to read this document carefully.
Note: Access the following URL to view the instruction manual:
http://www.at-aroma.com/product/support/manual
Main unit lock key
O-rings (2 pcs.)
(1 pc.)
Warranty
(1 copy)
Washers (2 pcs.)
Warranty
Summary
Opened using the main unit locking key.
Displays the status of the main unit and is used
to change various settings.
Used to turn the power on/off, select the
mode, adjust the strength, etc.
Sprays essential oils.
Lights up when the power is on.
Insert the main unit lock key to open/lock the
front door.
Attach the aroma bottle here.
Prevents the main unit from falling over.
Note: For 145S only (not provided for 145W).
Used to confirm the various settings and values.
Changes the selection.
Changes the program, time, day of
the week, etc.
Changes the current time or confirms the time.
On : (Weekly) Blinks when the spray start time is set
(Timer)
Blinks when the spray end time is set
Off :
Blinks when the spray end time is set
On : Blinks when the spray interval
(length of time) is set
Off : Blinks when the spray stop time
(length of time) is set
Press this switch to turn on power to the main
unit. Press the switch once again to turn off the
power. The LED lights up when the power is on.
Used to change the operation mode.
Used to adjust the speed of the motor (airflow).
• HIGH (Turn clockwise) → Increases the speed
• LOW (Turn anticlockwise)
→ Decreases the speed
Quick Guide
(this document,
1 copy)
Instruction drawing for recommended
installation position and power supply
hole/mounting hole position (included in
the package for 145W only)
