CM2 Modules Installation Manual
PSTN, WIFI, GSM, IP
Designed and Manufactured
in the United Kingdom
www.orisec.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Orisec CM2

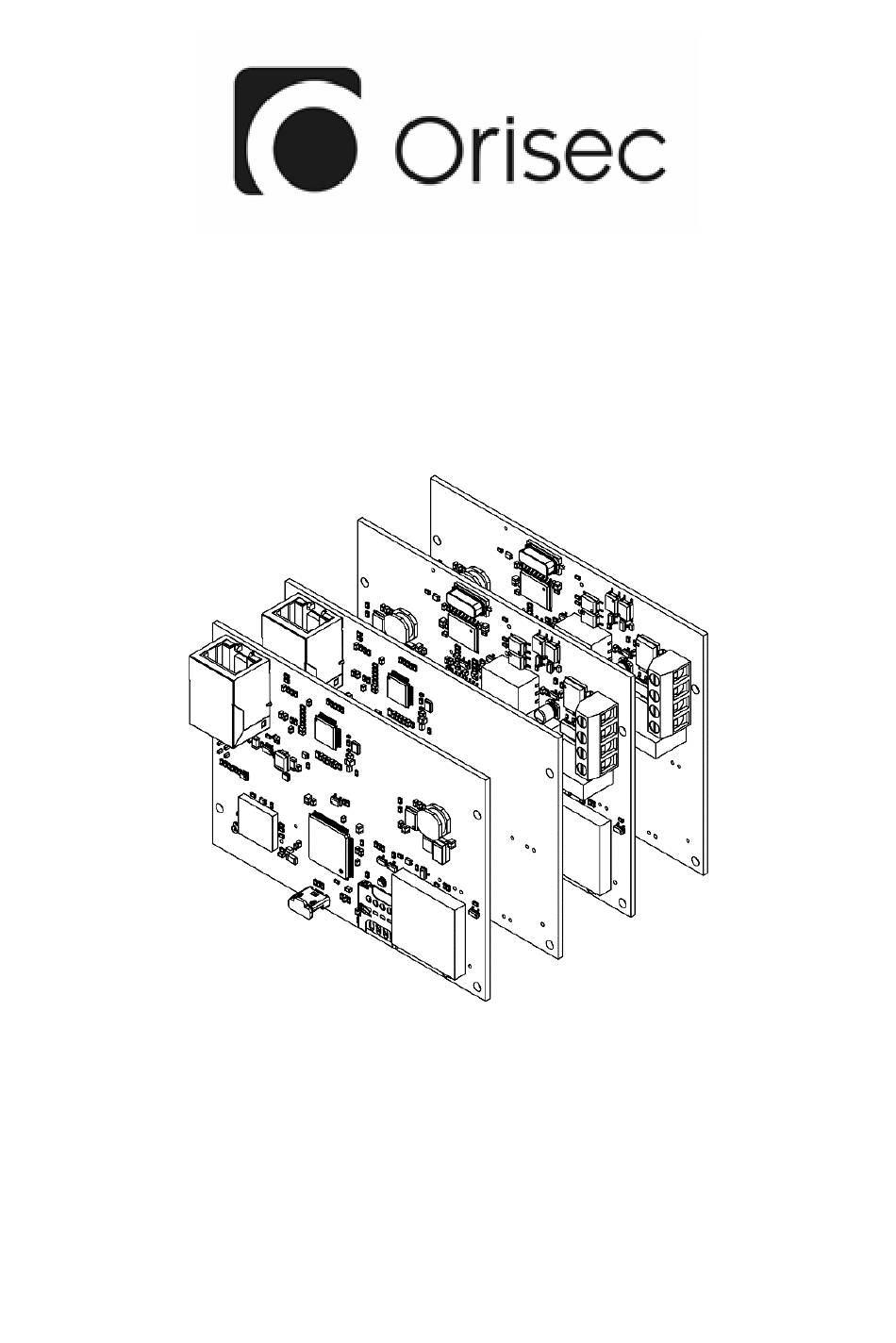

  • Page 1 CM2 Modules Installation Manual PSTN, WIFI, GSM, IP Designed and Manufactured in the United Kingdom www.orisec.co.uk...
  • Page 2: Table Of Contents

    PCB Layouts and Connections ....................4 Connecting CM2 Modules to CP-20 and CP-60 ..............5 Connecting CM2 Modules to CK-20, CT-20, CK-60 & CT-60..........7 Connecting CM2 Modules to W-CP-40T, W-CP-40K, W-CP-40E ........9 Connecting CM2 Modules to a CP-50, CP-100, CP-200 ............11 Programming ........................
  • Page 3: Introduction

    (and other variants that support PSTN) can be used on the CP-20, CP-60 and ZP series of control panels from issue 8 PCBs onwards. The issue number of the control panel PCB can be identified on the top right of the PCB under the Orisec logo - P00XX-EP-00-08...
  • Page 4: Installation

    2. Installation PCB Layouts and Connections...
  • Page 5: Connecting Cm2 Modules To Cp-20 And Cp-60

    For Wi-Fi or GSM modules connect the antenna cable to the relevant socket as shown on page 4. Insert the long support pillars into the CM2 module. Plug the CM2 module onto the control panel PCB as shown below: IMPORTANT: The control panel must NOT be powered when connecting or removing the CM2 Module.
  • Page 6 If the module has a Wi-Fi antenna peel off the self-adhesive backing and stick the PCB antenna to the top side of the enclosure as shown below. If the module has a GSM antenna peel off the self-adhesive backing and stick the PCB antenna to the right-hand side of the enclosure as shown below.
  • Page 7: Connecting Cm2 Modules To Ck-20, Ct-20, Ck-60 & Ct-60

    For Wi-Fi or GSM modules connect the antenna cable to the relevant socket as shown on page 4. Insert the long support pillars into the CM2 module. Plug the CM2 module onto the control panel as shown below: IMPORTANT: The control panel must NOT be powered when connecting or removing the CM2 Module.
  • Page 8 Affixing the Wi-Fi antenna. For Wi-Fi modules that don’t have GSM, peel off the self-adhesive backing and stick the PCB antenna to the right-hand side of the enclosure as shown below. For dual-path Wi-FI and GSM modules connect the Wi-Fi antenna to the top of the enclosure.
  • Page 9: Connecting Cm2 Modules To W-Cp-40T, W-Cp-40K, W-Cp-40E

    For Wi-Fi or GSM modules connect the antenna cable to the relevant socket as shown on page 4. Insert the two short support pillars into the CM2 module on the end with the connector pins.. Plug the CM2 module onto the reverse of the W-CP-40T and W-CP-40K control...
  • Page 10 If the module has a Wi-Fi antenna peel off the self-adhesive backing and stick the PCB antenna to the side of the enclosure next to the battery pack as shown below. If the module has a GSM antenna peel off the self-adhesive backing and stick the PCB antenna to side of the enclosure next to the module as shown below.
  • Page 11: Connecting Cm2 Modules To A Cp-50, Cp-100, Cp-200

    Plug the CM2 module onto the control panel as shown below: IMPORTANT: The control panel must NOT be powered when connecting or removing the CM2 Module. Affixing the Wi-Fi antenna. For Wi-Fi modules that don’t have GSM, peel off the self- adhesive backing and stick the PCB antenna to the right-hand side of the enclosure as shown below.
  • Page 12: Programming

    3. Programming Data Backup Once the CM2 module is connected to the Orisec control panel it can be used to backup the control panel data or restore control panel data. To achieve this: Enter Engineers code  Enter 'Tests & Diagnostics' ...
  • Page 13: Ip Programming

    IP Programming If the router supports DHCP dynamic IP details will be automatically assigned to the CM2-IP Module. If the network does not support this, the below steps are required: Enter engineers code Programming menu - press E or R arrow to enter the menu.
  • Page 14: Gsm Programming

    APN Details For GSM modules it is necessary to enter the APN details before the module can make a connection to the Orisec Cloud or CSL Connected. Enter engineers code Programming menu - press E or R arrow to enter the menu Navigate to ‘Coms Modules’...
  • Page 15 CSL Connected Enter engineers code Programming menu - press E or R arrow to enter the menu Navigate to ‘ARC setup’ and press E or R arrow to enter the menu. Check the programming for the following options; Number = ARC number (E.g. Southern/ Northern Monitoring is 76527) ...
  • Page 16: Sms Messaging

    SMS Messaging Enter engineers code Programming menu - press E or R arrow to enter the menu Navigate to ‘ARC setup’ and press E or R arrow to enter the menu. Check the programming for the following options; Number = Recipients Mobile Number ...
  • Page 17: Sms Control Commands

    SMS Control Commands When the control panel is fitted with a CM2-GSM, the system can be remotely controlled via SMS commands. Please see below table: Function SMS Command Example Full Arm #### ARM [areas] 5678 ARM 1 Part Arm 1,2,3...
  • Page 18: Pstn Programming

    PSTN Programming ARC communications Enter engineers code Programming menu - press E or R arrow to enter the menu. Navigate to ARC setup and press E or R arrow to enter the menu. Check the programming for the following options; Number = ARC receiver number ...
  • Page 19: Checking Status For The Cm2 Modules

    Status: In Fault  Not fitted The CM2 Module is not fitted or not being seen by the control panel, check the physical connection. Initialising The CM2 Module is in the initialising stage, once configuration has been saved this will change to ‘Ready’.
  • Page 20: Controlplus Setup For Ios & Android

    Site – Unique identifier for the site i.e. My House User Code – Enter a valid user code for the control panel. Use Cloud – Enable this option to create a connection via the Orisec Cloud. *Authorisation – An authorisation code can be assigned as an extra level of security.
  • Page 21: Specifications

    10 – 15Vdc Current Consumption: Nominal: 15mA plus: PSTN: 15mA GSM: 45mA WiFi: 30mA IP: 30mA E.g., CM2-GSM-WIFI = 15 + 45 +30 = 90mA Environmental Operating Temperature: -10°C to +55°C Storage Temperature: -20°C to +60°C Max. Humidity: 95% non-condensing EMC: Residential, Commercial, Light Industrial &...
  • Page 22: Standards

    2 years from the date of purchase. Disclaimer: Orisec will not accept any liability based on a claim that the CM2 Modules failed to perform correctly as it is a component part of an installation and not a complete intruder alarm...
  • Page 23 Notes...
  • Page 24 UK Based Technical Support t: +44 (0) 1706 398740 e: support@orisec.co.uk © Orisec Ltd 2021 INS124...
