- Page 1 Flyron Technology Co., Ltd. External PIR Motion Sensor Activated Audio Player External PIR Motion Sensor Activated Audio Player User’s Manual Model No.: FN-AL7T-PIR Version: V1.0 www.flyrontech.com E-mail: info@flyrontech.com...
-
Page 2: Technical Parameters

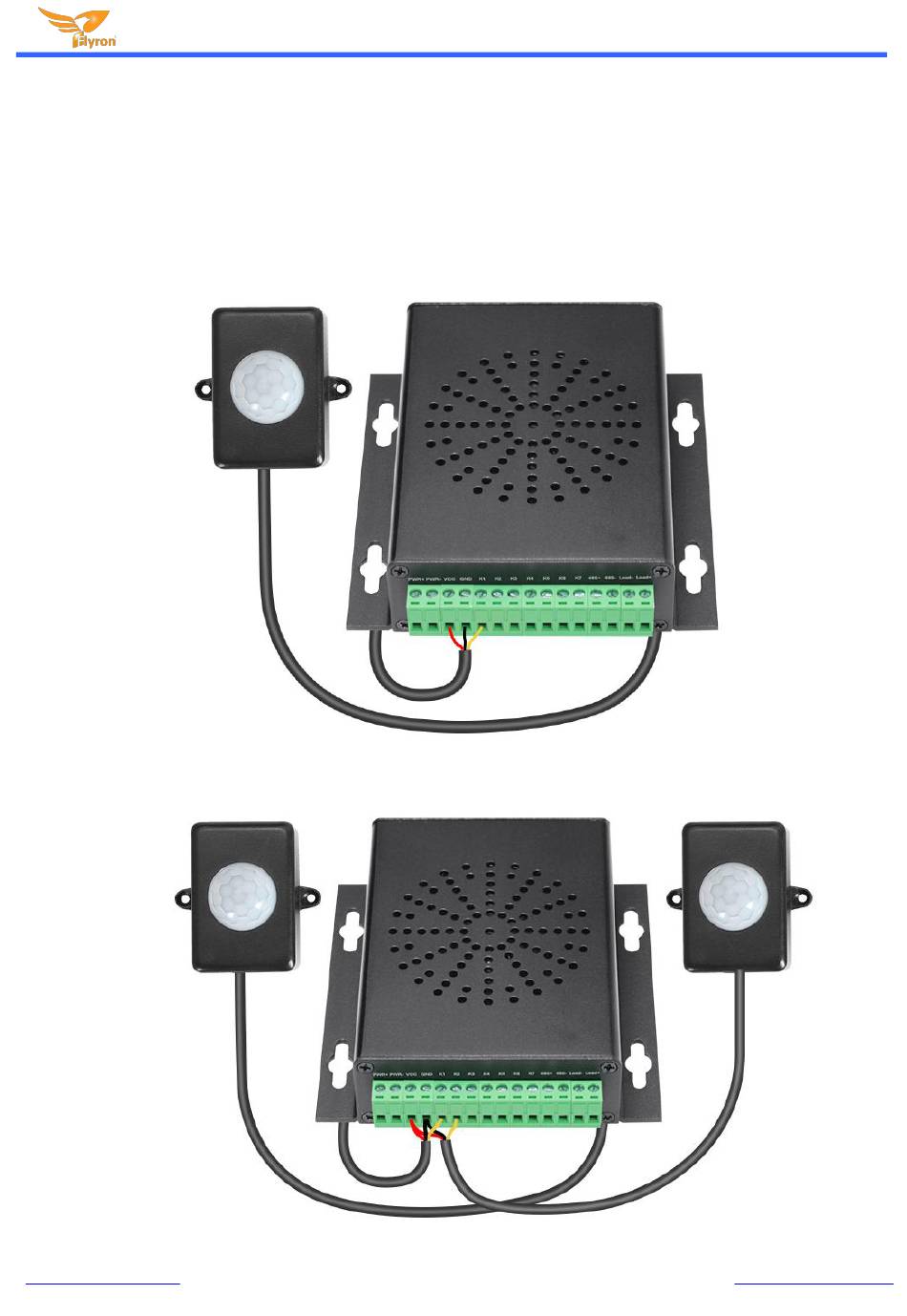

Flyron Technology Co., Ltd. External PIR Motion Sensor Activated Audio Player Features Adopts a separate PIR motion sensor from the audio player (main device), which is flexible to install. Two options available (with one PIR sensor and with two PIR sensors). -
Page 3: Wiring Principle
Flyron Technology Co., Ltd. External PIR Motion Sensor Activated Audio Player Length of the cable: 45cm Operating temperature: -20C to +50C Interfaces Wiring Principle 1). This device has seven trigger input terminals from K1 to K7, but we just use the first two of them (K1 & K2) to connect to the external PIR sensors. - Page 4 Flyron Technology Co., Ltd. External PIR Motion Sensor Activated Audio Player Dimensions www.flyrontech.com E-mail: info@flyrontech.com...
- Page 5 Flyron Technology Co., Ltd. External PIR Motion Sensor Activated Audio Player Audio Files Loading/Updating Users can use a USB data cable to connect the device to computer. The built-in flash memory will be detected as a USB flash drive on computer. See the screenshots below.
- Page 6 Flyron Technology Co., Ltd. External PIR Motion Sensor Activated Audio Player Delete the pre-loaded audio file(s) for testing purpose, and copy your own audio file(s) to the memory. You can rename your files like “001.mp3” and “002.mp3”. The first PIR sensor (connected to K1) will trigger “001.mp3” and the second PIR sensor (connected to K2) will trigger “002.mp3”.
