NTCS 6

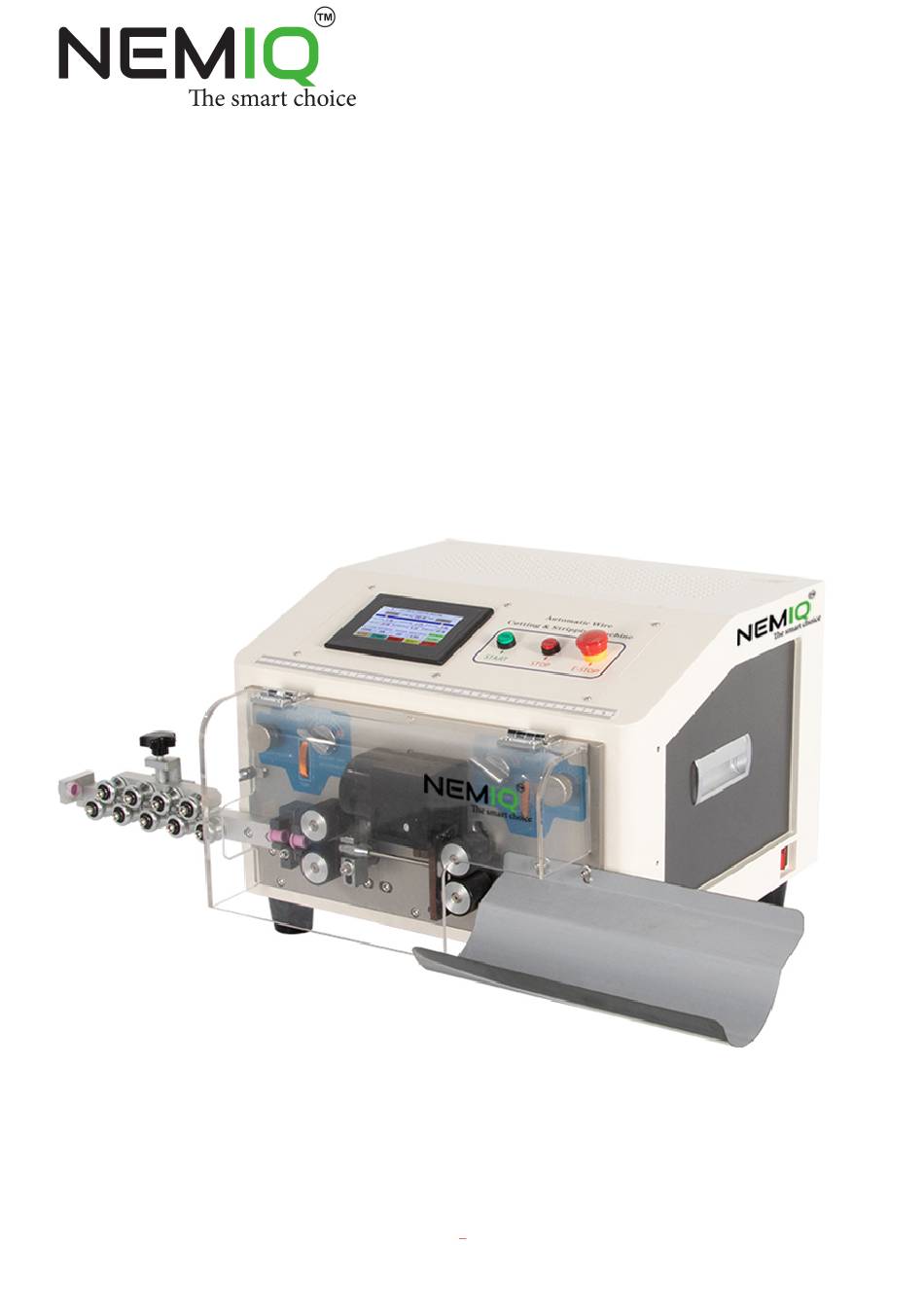

OPERATION MANUAL
Full-automatic Computer Wire Stripping Machine
=
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the NTCS 6 and is the answer not in the manual?

Questions and answers

Summary of Contents for NEMIQ NTCS 6

  • Page 1 NTCS 6 OPERATION MANUAL Full-automatic Computer Wire Stripping Machine...
  • Page 2 Part One: Overview 1. Straightening frame: wire straightening effect. 2. Pressure adjusting knob of the cable-in wheel: adjust the pressure between the two wheels of the cable-in wheel, pull out the knob to rotate clockwise to increase the pressure, and rotate it counterclockwise to decrease the pressure, adjust to the appropriate pressure and push it in to fix it.
  • Page 3 5. Inlet hole seat: fixed catheter, move up and down to adjust the center position of the catheter and blade. 6. Feeder wheel lift function: rotate the feeder wheel counterclockwise, and rotate the feeder wheel clockwise. 7. Wire feed wheel: The motor drives the wire feed wheel to rotate so that the wire material moves forward and backward, and cooperates with the function of the wire feed and stripping head of the knife holder.
  • Page 4 the function of exiting and stripping the knife holder. 14. The outlet wheel lifting function: rotate the outlet wheel clockwise, and rotate the outlet wheel counterclockwise. 15. Outlet wheel clearance adjustment knob: The clearance of the outlet wheel increases when it is rotated upward, and decreases when it is rotated downward.
  • Page 5 Part 2: Operation of the computer Picture 1 1.1. Program: store parameters from 0-99 program serial numbers. 1.2 UPH: to wait. 1.3. FORWARD: Thread the thread into the cable entry hole until the cable entry roller. Press the [Thread entry] roller to automatically feed the thread forward.
  • Page 6 1.7. Stop: Press [Stop] to stop the machine. 1.8. Reset: Make each part of the machine return to the origin. 1.9 Emergency stop: When the machine is in working state, press [Emergency Stop], the machine will stop working urgently. 1.10. Length: The total length of the cutting wire, the unit is mm. 1.11.
  • Page 7 1.16. Cutter Back: Refers to the blade cutting into a certain depth and retreating to a certain size to avoid the core wire being scratched. The size of the retreat is determined according to the thickness of the wire rubber. The thicker the rubber is, the larger the retreat is. ~ 5.0mm. 1.17.

  • Page 8: Manual Setting

    Manual setting 2.1. Cutter: Press the forward button to close the upper and lower blades. As the number in the square increases, press the back button to open the upper and lower blades. As the number in the grid decreases, when the spacing between the upper and lower blades is 0 points, confirm that the number in the grid is the reference data, and return to zero to detect the return to the origin.
  • Page 9 Parameter settings: Picture 3 3.1 Roller speed: refers to the motor feed roller speed of 00-99, 00 is the slowest and 99 is the fastest. 3.2. Cutter speed: refers to the cutting speed of the knife holder driven by the motor, the speed is 00-99, 00 is the slowest and 99 is the fastest. 3.3 Strip speed: refers to the speed at which the rubber peels off.
  • Page 10 3.6. Wheel: not 3.7. Wire Lack: automatic shutdown when the wire is missing. 3.8. Cut Rubber: if the wire skin falls on the blade, turn on the function to cut the wire skin to avoid overlapping the second action to cut the wire.
  • Page 11 MIDDLE STRIP MIDCUT: on / off 5.1. DIA MODIFY: when the middle stripping wire and the copper wire are too tight to be stripped, the cutting depth of the middle stripping can be slightly increased. For example, 0.1 means 0.1+ 【Picture 1】 wire diameter. 5.2.
  • Page 12 Printing settings (optional): 1. Coding switch: turn on/off the coding function. 2. Nozzle distance: distance from nozzle to cutter. 3. Inkjet code signal start: The wire stripping machine gives the inkjet printer a start delay command, and the reference value is 0 S. 4.
  • Page 13 9. Circular printing distance: the length between head-end printing and tail-end printing, set the number of printings, and the system automatically calculates the printing distance of each character (this parameter is automatically calculated and cannot be modified).
