Summary of Contents for Verkada ACC-MNT-PEND-1

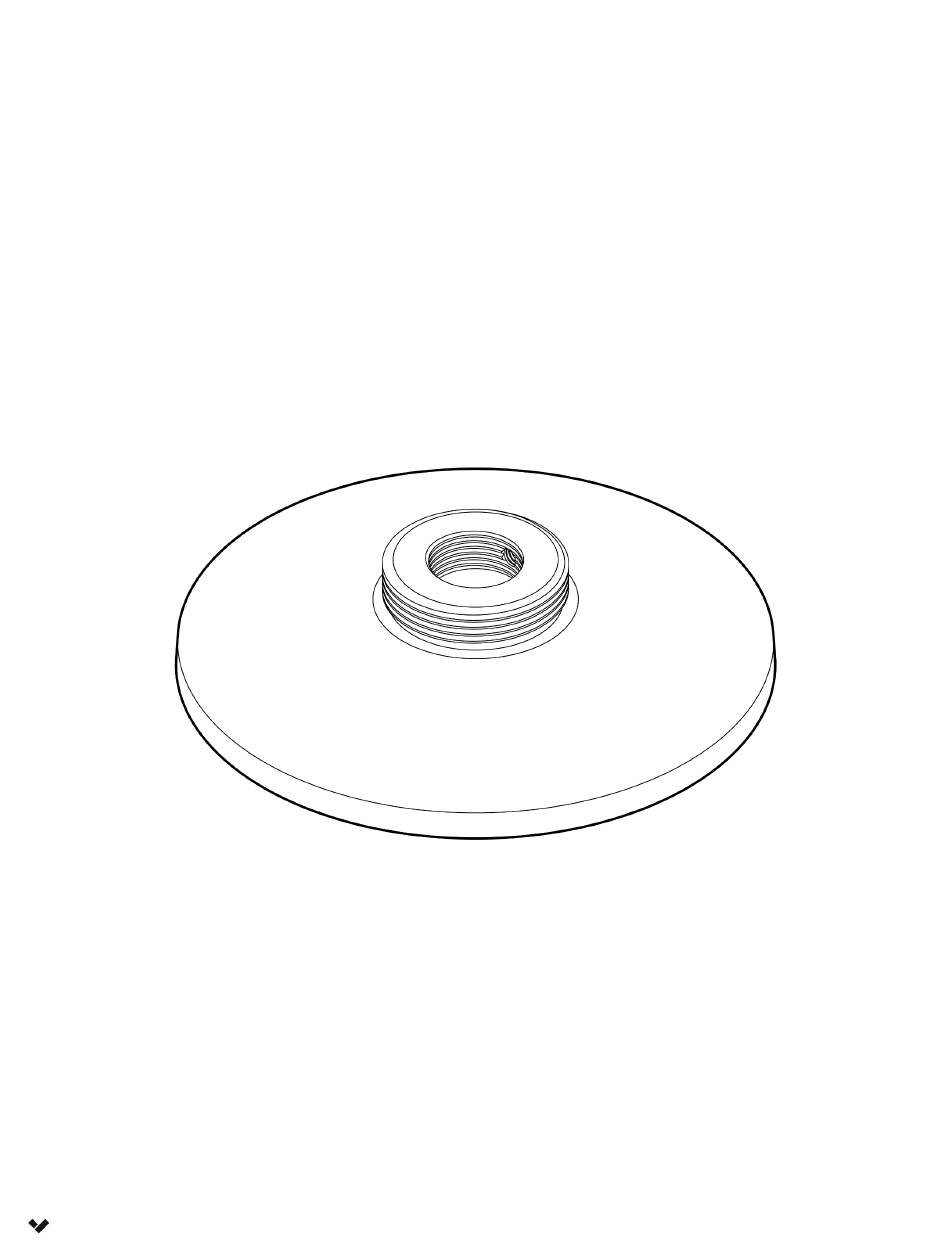

- Page 1 Install Guide ACC-MNT-PEND-1 Standard Pendant Cap...
-
Page 2: Product Models
Verkada product is granted under this document. This document may not be sold, resold, licensed or sublicensed and may not be transferred without Verkada’s prior written consent. No part of this document may be reproduced in whole or in part without the express written consent of Verkada. -
Page 3: Introduction What's In The Box
Length: 6mm Drive: T10 Security Torx Length: 10mm Drive: #2 Phillips (Attached to product) What you’ll need Compatible Products For a list of compatible products, please visit: ● A compatible Verkada product https://docs.verkada.com/docs/accessories- ● T10 Torx Security Screwdriver overview.pdf ● A #2 Phillips screwdriver... - Page 4 Introduction Overview Pendant Cap Hole Patterns 4” Junction Box CF83-E, CDX3-E, CDX3 CDX2-E, CF81-E, CH52-E CDX2...
- Page 5 Installation Prepare the Camera Use the provided T10 Torx Security Screwdriver to loosen the screws and lift the cover of the camera. To remove the mount plate, loosen the mount plate screws with a T10 Torx Security Screwdriver and twist the camera counter clockwise.
- Page 6 Installation Mounting to a ¾” Conduit Drop Pipe 1/2 Using the T10 Security Screwdriver, provided with the Verkada Camera, loosen the M6 set screw on the Standard Pendant Cap. Pull the cable through the conduit drop pipe and the Pendant Cap.
- Page 7 Installation Mounting to a ¾” Conduit Drop Pipe 2/2 Retrieve the camera. Refer to the Preparation and Mounting sections of the camera install guide for accurate cable installation. Align the the camera’s blue mounting slots with the thumb screws on the Standard Pendant Cap.
- Page 8 ACC-MNT-ARM-1 and ACC-MNT-XLARM-1. Pull the cable through the Arm Mount and the Standard Pendant Cap. Using the T10 Security Screwdriver, provided with the Verkada Camera, remove the M6 set screw on the Standard Pendant Cap. Using the external 1.5” NPT threads, screw the Standard Pendant Cap onto the Arm Mount.
- Page 9 Installation Mounting to an Arm Mount 2/2 Retrieve the camera. Refer to the Preparation and Mounting sections of the camera install guide for accurate cable installation. Align the the camera’s blue mounting slots with the thumb screws on the Standard Pendant Cap. With thumbscrews fully inserted, rotate the camera clockwise.
- Page 10 Appendix Support Thank you for purchasing this Verkada product. If for any reason you're experiencing issues or need assistance, please contact our 24/7 Technical Support Team immediately. Sincerely, The Verkada Team verkada.com/support...
