Flaminia APPSOLUTION Plus Instructions For Assembly

APPSOLUTION Plus | PLAY Plus | APP Plus | ASTRA Plus | EFI Plus |
LINK Plus | MADRE Plus | MONÒ Plus | QUICK Plus |
da 90 a 120 mm
Questo schema riporta la varie combinazioni di curve e raccordi per l'adattamento agli scarichi esistenti,
siano essi a parete (H 180 mm / H 230 mm) che a pavimento (da 50 mm a
These sketches show the different combinations of bends and connectors to adapt the pan to the exi-
sting traps, both wall trap (H 180 mm / H 230 mm) both floor trap (da 50 mm a
LKR00
LKR40
da 90 a 120 mm
LKR00
www.ceramicaflaminia.it www.ceramicaflaminia.it
INDICAZIONI PER L'ASSEMBLAGGIO
INSTRUCTIONS FOR ASSEMBLY

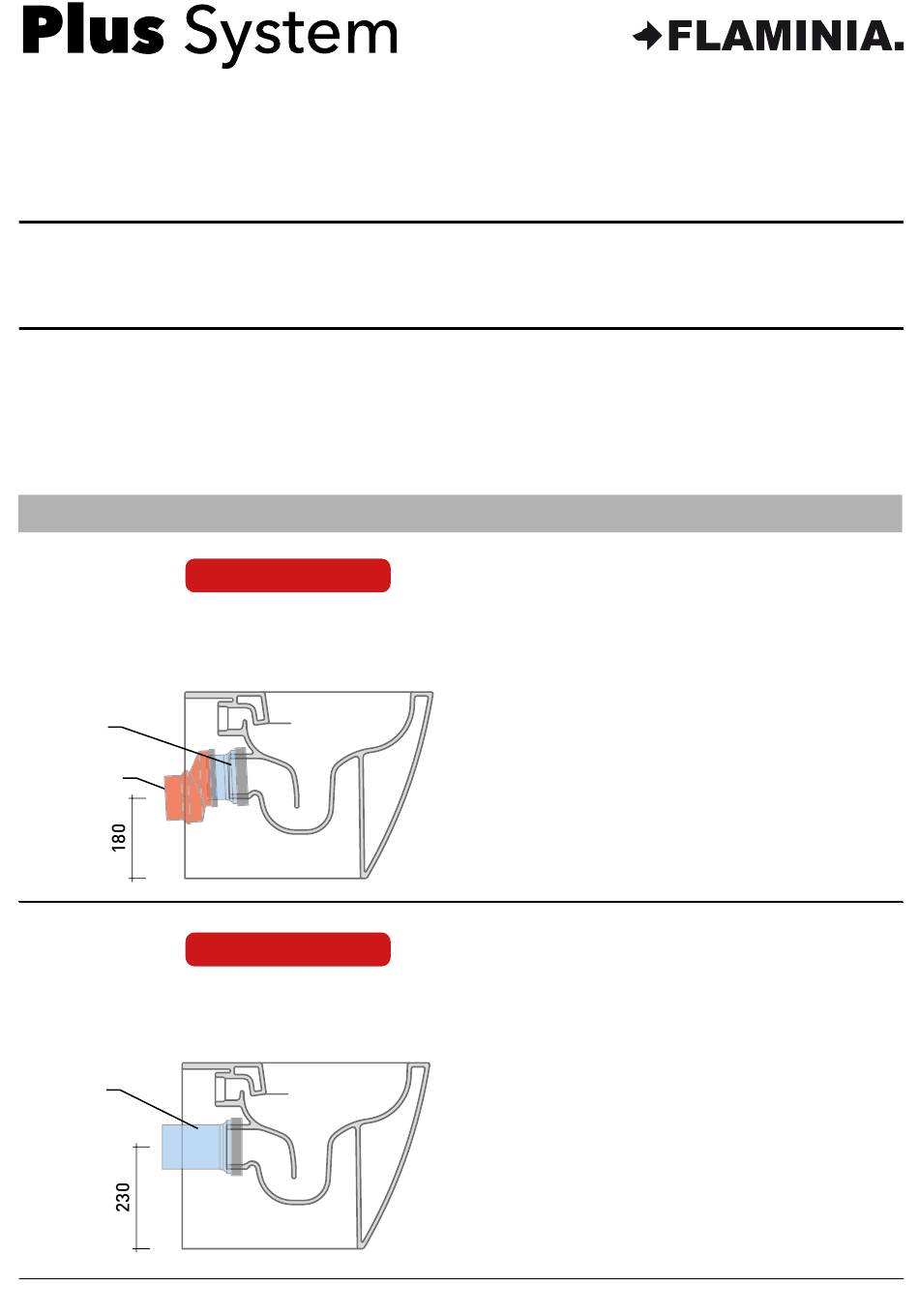

SCARICO PARETE / WALL TRAP
set art. LK180
set art. LKR00
da/from 50 a/to 80 mm
.....*
per scarico a parete H 180 (predisposizione wc BTW)
suitable for wall trap H 180 (btw wc trap arrangement)
da/from 80 a/to 100 mm
art. PY117RS / WC PLAY Plus gosilent
art. AP114RS - AP113RS / WC APPSOLUTION Plus gosilent
art. AP117RG / WC APP Plus goclean
art. AS117RG / WC ASTRA Plus goclean
art. EF117R / WC EFI Plus
art. LK117RG / WC LINK Plus goclean
art. MA117RG / WC MADRE Plus goclean
art. MN117RS / WC MONÒ Plus gosilent
art. QK117RG / WC QUICK Plus goclean
per scarico a parete H 230 (predisposizione wc sospeso) da/from 100 a/to 120 mm
suitable for wall trap H 230 (wall-hung wc trap arrangement)
da/from 50 a/to 80 mm
art. PY117RS / WC PLAY Plus gosilent
art. AP114RS - AP113RS / WC APPSOLUTION Plus gosilent
art. AP117RG / WC APP Plus goclean
art. AS117RG / WC ASTRA Plus goclean
art. EF117R / WC EFI Plus
art. LK117RG / WC LINK Plus goclean
art. MA117RG / WC MADRE Plus goclean
art. MN117RS / WC MONÒ Plus gosilent
art. QK117RG / WC QUICK Plus goclean
da/from 80 a/to 100 mm
mm).
.....* mm).
