Environmental Sensor

Instruction Manual

Quick installation guide and system operation

Important safety, compliance and warranty information

Table of Contents

Need help?

Do you have a question about the ENV-BND-STD-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Move ENV-BND-STD-1

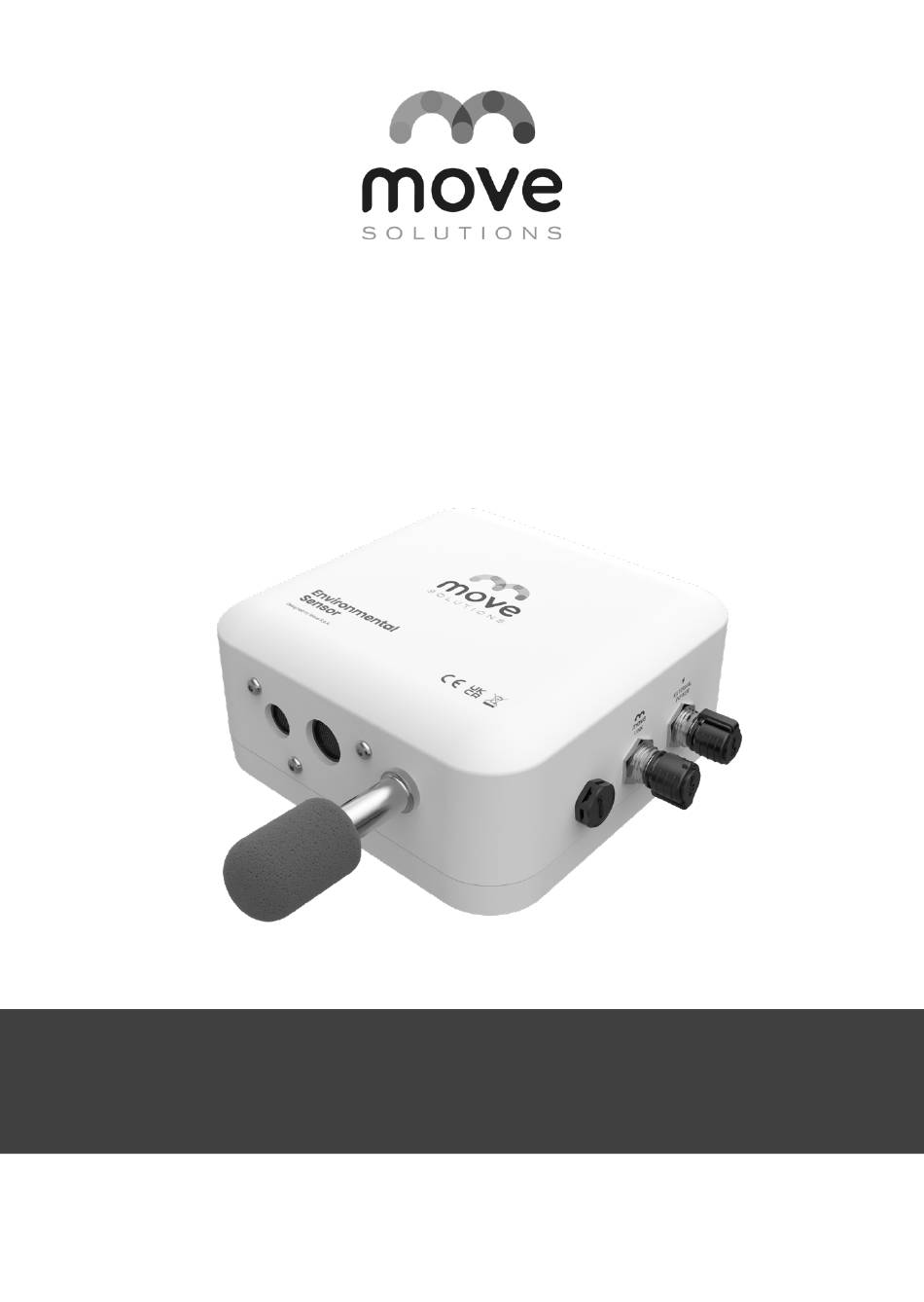

Page 1 Environmental Sensor Instruction Manual Quick installation guide and system operation Important safety, compliance and warranty information...
Page 2 Via Marcantonio Colonna, 35, 20149 Milan - Italy Via Carlo Piaggia, 382, 55100 Lucca - Italy 111 W Main St. Mt. Pleasant, PA 15666 - USA MOVE SOLUTIONS CUSTOMER ASSISTANCE SERVICE Visit the website at www.movesolutions.it for contact information relating to office addresses and phone numbers.
Page 3 And related bundles: ENV-BND-STD-1 ENV-BND-W-1 ENV-BND-R-1 ENV-BND-RW-1 LICENSE AND COPYRIGHT © 2025 Move S.p.A. All rights reserved. PUBLICATION Made in Italy April 2025 Revision 3 NOTICE OF PUBLICATION The information contained in this manual may be subject to change without notifica- tion.
Page 4 ..............5.2.1 Pole mounting Base Set (ENV-BND-STD-1) .
Page 5 7.3 . Air agent ..............Maintenance .
Page 6 For the correct and safe operation of the product, it is recommended to read and follow the instructions in this manual. Great attention should be paid to the following warnings. Move Solutions shall not be held responsible for inconveniences, damage or malfunctions due to lack of com- pliance to the prescriptions and suggested use in this manual.
Page 7 wet hands. The product can only be exposed to water when the conditions to guarantee the IP rating are satisfied. • Do not operate on the product in extreme weather conditions that may damage the device or the user, such as thunderstorms or snowstorms. •...
Page 8: Fcc Compliance
FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference • This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for com- pliance could void the user’s authority to operate the equipment.
Page 9: Ised Compliance
ISED Compliance This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
Page 10 Symbols and provisions used in the documentation The following symbols and conventions are used throughout the documentation. Please follow all warnings and instructions marked on the product. WARNING Fire Danger icons warn of the WARNING indicates a potentially possibility of fire. hazardous situation which, if not avoided, can result in minor or moderate injury.
Page 11: General Description
General description The Environmental Sensor is a wireless sensor that can measure a variety of para- meters such as particulate matter, environmental noise, and a wide range of wea- ther-related parameters for an all-round understanding of the environment around it. Air agent Wind agent Particulate matter...
Page 12 The sensor offers a variety of working modes to accommodate different scenarios, all manageable through the MyMove IoT Platform. To operate, the sensor requires a Move Solutions Gateway installed nearby. AGENTS The Environmental Sensor is made up of three Agents that behave as three inde- pendent sensors.
Page 13 parameters the agent collects data on atmospheric pressure, ambient temperature and relative humidity, and an external tipping bucket rain probe can be connected to measure instantaneous and cumulative rainfall. A threshold can be set to trigger an ac- quisition when the total rainfall over a specified time exceeds a user defined threshold. The Wind agent takes measurements from two external Wind speed and Wind direction probes.
Page 14: Technical Data
Technical Data Noise agent Technology MEMS 0.01 dB AFmax CFmax ASmax CSmax Resolution 1.0 dB AF10 AF50 AF90 CF10 CF50 CF90 Accuracy (1 kHz, 94 dB ± 0.5 dB Sampling frequency 48 kHz • over the selected averaging time • over the selected averaging time •...
Page 15 Air agent 2 minutes, 5 minutes, 10 minutes, 15 minutes, 30 minutes, 1 Cadence hour, 2 hours, 4 hours, 6 hours, 8 hours, 10 hours, 12 hours, (communication period) 14 hours, 16 hours, 18 hours, 24 hours. Particulate matter Technology Laser scattering Range 0 - 1000 µg/m3 0.3 –...
Page 16 Instantaneous ambient temperature Relative Humidity Resolution 0.01 %RH Accuracy ±6 %RH (30-70 %RH) Output parameters Instantaneous relative humidity These values are based on the rain probe provided by Move Solutions as an accessory. Other rain probes may differ. Instruction manual - rev.3...
Page 17 Wind agent (external probe require, see Ordering information) External 4-20 mA wind direction and wind Technology speed sensors External sensor supply voltage 12.3 VDC ±2% (70 mA) Supported analog interface 4-20 mA (3 wires) Range 0.4-25 mA Resolution 0.001 mA Accuracy of readout ±0.03 mA Accuracy of wind speed sensor...
Page 18 Up to 14000 noise agent events or • Up to 24000 wind agent events Move Solutions 8-pole connector (Move Cable connection Link). For compatible accessories visit Move Solutions’ website or contact us directly. 2x 19Ah 3.6V replaceable lithium battery Battery (Suggested: EVE ER34615PHR4).
Page 19: What's In The Box
Depending on the bundle selected, the mounting kit and included materials will vary. The available bundles are: • ENV-BND-STD-1: Environmental Sensor + Pole mounting Kit • ENV-BND-W-1: Environmental Sensor + Wind probes + Mounting Kit • ENV-BND-R-1: Environmental Sensor + Rain probe + Mounting Kit •...
Page 20 BASE SET (ENV-BND-STD-1) The following table lists the components included in the standard bundle, which provides the essential mounting hardware for the Environmental Sensor. Items Number of pieces Environmental Sensor (ENV-STD-LR-1) 1 pc. Mating connector (for external power-source) 1 pc.
Page 21 WIND PROBES BUNDLE (ENV-BND-W-1) This bundle contains all the components of the standard set ENV-BND-STD-1, plus the required mounting hardware for the wind probes: Items Number of pieces Anemometer 1 pc. Wind Vane 1 pc. Mounting kit Wind probes Arms 2 pcs.
Page 22 RAIN PROBE BUNDLE (ENV-BND-R-1) This bundle contains all the components of the standard set ENV-BND-STD-1, plus the required mounting hardware for the rain probe: Items Number of pieces Rain Gauge 1 pc. Mounting kit Rain Gauge plate 1 pc. M5x16 flanged hex bolt 4 pcs.
Page 23 ENVIRONMENTAL SENSOR SCHEMATIC Looking at the product you’ll see: ront viEW icrophonE ir quality port portS Eft viEW irEction pEEd augE connEctor connEctor connEctor ight viEW xtErnal poWEr connEctor connEctor Environmental Sensor — ENV-STD-LR-1 — v1.0...
Page 24 ottom viEW all mount brackEtS WALL MOUNT FEET Additionally, four plastic wall mount feet, made of the same material as the Envi- ronmental Sensor’s enclosure, are included exclusively for wall mounting. all mount Instruction manual - rev.3...
Page 25: Installation
Installation WARNING • DO NOT use an electric screwdriver during installation to avoid damage to the device, especially when screwing in the self-tapping screws. Before the installation check that you have the right tools for the operation: • A 13mm wrench •...
Page 26: Pole Mounting
To optimize the wind monitoring performance, place the wind probes free from any obstacle. When mounting the rain sensor to a pole, make sure it’s not directly over the Environmental Sensor to avoid channeling water on the unit. Avoid placing the rain sensor directly under the wind sensors to avoid “shadow effect”...
Page 27 IMPORTANT • DO NOT unscrew the nuts that secure the bolts to the V-clamp Pole diameter from 90mm to 50mm The Pole mounting kit can be used for poles of diameters less than 90mm and more than 40mm. Pole diameter from 50mm to 40mm In case of poles with diameter between 50mm and 40mm, the two V clamp needs to be stacked like the picture below.
Page 28 STEP B. MOUNT THE L-SHAPED PLATE ON THE ENVIRONMENTAL SENSOR Use the four self-tapping 4.2x9.5 screws in the kit to mount the L-shaped plate on the Environmental Sensor using the Philips screwdriver, as shown in the figure below: The bent side of the plate must face outward and be positioned on the opposite side of the Environmental Sensor’s microphone.
Page 29 5.2.1 Pole mounting Base Set (ENV-BND-STD-1) Pole mounting configuration with the En- vironmental Sensor and no other probes will appear as shown in the adjacent figure. Follow STEP A and STEP B from chapter 5.2 Pole mounting before continuining. STEP 1. MOUNT THE ENVIRONMENTAL SENSOR ON THE CLAMP Fix the Environmental Sensor using the provided M5 screws in the V clamp with the round end of the long M8 screw.
Page 30 5.2.2 Pole mounting Rain Probe Bundle (ENV-BND-R-1) The pole mounting configuration with the Environmental Sensor and the Rain Gauge, without the Wind Probes, will appear as shown in the adjacent figure. Follow STEP A and STEP B from chapter 5.2 Pole mounting before continuining. STEP 1.
Page 31 StEp 2 STEP 2. MOUNT THE RAIN GAUGE PLATE Before mounting the Rain Gauge to its bracket, remove the internal shipping augE seal. Please read the manual provided with the Rain Gauge for further in- structions. To mount the Rain Gauge to its plate, first remove the three M4 screws from the bottom.
Page 32 5.2.3 Pole mounting Wind Probes Bundle (ENV-BND-W-1) Pole mounting configuration with the Environmental Sensor and the Wind Probes, without the Raing Gauge, will appear as shown in the figure below. Follow STEP A and STEP B from chapter 5.2 Pole mounting before continuining. STEP 1.
Page 33 StEp 1 nEmomEtEr probES flangEd hEx bolt STEP 2. MOUNT THE WIND PRO- BES ARMS TO THE V-CLAMPS Fix the Wind probes arms to the V-clamps using the provided four M5 flanged screws. To make the installation easier, partially screw in only the top ones first, then place the two arms using the keyslot.
Page 34 STEP 3. MOUNT THE ENVIRON- StEp 3 MENTAL SENSOR ON THE CLAMP Fix the Environmental Sensor using the provided M5 screws in one of the installed arm (best in the one with the Wind Vane installed). To make the installation easier, first insert the left screw (without tightening it), then use the keyslot to position the Envi- ronmental Sensor with its L-shaped...
Page 35 5.2.4 Pole mounting Complete Bundle (ENV-BND-RW-1) The complete pole mounting configuration with the Environmental Sensor, the Wind Probes, and the Raing Gauge, will appear as shown in the figure below. Follow STEP A and STEP B from chapter 5.2 Pole mounting before continuining. STEP 1.
Page 36 StEp 1 nEmomEtEr probES flangEd hEx bolt STEP 2. MOUNT THE WIND PRO- BES ARMS TO THE V-CLAMPS Fix the Wind probes arms to the V-clamps using the provided four M5 flanged screws. To make the installation easier, partially screw in only the top ones first, then place the two arms using the keyslot.
Page 37 STEP 3. MOUNT THE ENVIRON- StEp 3 MENTAL SENSOR ON THE CLAMP Fix the Environmental Sensor using the provided M5 screws in one of the installed arm (best in the one with the Wind Vane installed). To make the installation easier, first insert the left screw (without tightening it), then use the keyslot to position the Envi- ronmental Sensor with its L-shaped...
Page 38 STEP 5. MOUNT THE RAIN GAU- StEp 5 GE PLATE Before mounting the Rain Gauge to its bracket, remove the internal shipping seal. Please read the manual provided with the Rain augE Gauge for further instructions. To mount the Rain Gauge to its plate, first remove the three M4 screws from the bottom.
Page 39: Wall Mounting
5.3 Wall mounting IMPORTANT • Wall mounting may alter the reading of the noise agent by creating unwanted reflections. It can also affect the air agent by restricting the air flow to the ports, and can lead to false positive if the wall is in itself a source of dust.
Page 40 INSTALLING PROBES ON WALL MOUNTING CONFIGURATION When using the wall mounting configuration, the installation of external probes is under the sole responsibility of the user. The probes supplied by Move Solutions are designed and tested for pole mounting only. Installing the probes in a wall-mounted setup may require custom solutions, which are not covered by this manual.
Page 41: Connecting An External Power Source
5.4 Connecting an external power source WARNING • When connecting an external power source make sure the power source is within the limits prescribed in this manual. Failure to comply with this warning could result in damage to the device. •...
Page 42: General Settings
MyMove IoT Platform 6.1 General settings To access MyMove IoT Platform, connect to the URL that you have been supplied with by Move Solutions and log in with your credentials. Through the MyMove IoT Platform you’ll be able to: •...
Page 43 Acquired data The Environmental Sensor is divided in three “agents” which essentially behave as three independent sensors. Each agent is also divided in “channels” that act as a group of outputs that can be thought as linked together. • Noise agent: handles all measurements from the microphone. This agent is made of a single channel.
Page 44 Finally, average data is measured continuously, and the data’s moving average is conti- nuously calculated and used as output. For example, when the noise agent’s average time is set to 1h the L output is the average A-weighted sound pressure level over the last hour at the time of transmission.
Page 45 A and C in the name of the outputs stand respectively for A-weighted and C-weighted sound pressure level, which are two different frequency weightings specified in the standard and used in most applications. The letters F and S in the name of the outputs stand respectively for fast and slow time-weighting and affect how much the parameter is sensitive to sudden changes in noise level;...
Page 46 Low Power Always On Triggered Output Category Mode Mode Acquisition Instant wind Instant speed Average wind Cadence-based speed Maximum Cadence-based wind speed NOTES • Instant wind speed is computed as the 3 seconds average of the signal from the probe. •...
Page 47 Air agent The air agent is made up of two separate channels: the air quality channel and the rain channel. The two channels share the cadence, and each one has its own settings as well. AIR QUALITY CHANNEL The air quality channel has two working modes. In low power mode the particulate matter sensor is turned on only at the time of transmission to measure instantaneous particular matter concentrations, and is then turned back off to ensure a much longer battery life.
Page 48 Low Power Always On PM triggered Output Category Mode On Mode acquisition Maximum Cadence-based Not Available Available Not Available Maximum Cadence-based Not Available Available Not Available Maximum Cadence-based Not Available Available Not Available Maximum Cadence-based Not Available Available Not Available Instant pressure is the atmospheric pressure measured at the time of transmission.
Page 49 RAIN CHANNEL The rain channel has an enable option in the MyMove IoT Platform that allows the user to turn it on or off, but this doesn’t affect the battery life of the product. The evaluation window setting decides what period of time is considered when computing the cumulative rainfall output.
Page 50: Maintenance
If upon visual inspection the microphone’s windscreen looks damaged, worn out or is missing, a spare part can be requested to Move Solutions. To replace it, simply pull it off the microphone and gently insert the new windscreen. When doing this make sure the microphone and the new windscreen are both dry to avoid trapping droplets of water between the windscreen and the microphone capsule.
Page 51: Replacing The Batteries
The two filters come off easily. Clean them with pressurized air or clean water, or take new ones if they need replacement (spare parts can be ordered from Move Solutions). Before mounting the filters, make sure they are dry. Reassemble the air sensor, making sure the filters are correctly aligned to the holes.
Page 52: Overall Dimensions
Overall dimensions Please note that the drawings provided in this manual are not drawn to scale. The purpose of these illustrations is to assist you in understanding the various com- ponents and their relative positions. Therefore, it is essential to rely on the numerical measurements provided alongside the drawings for accurate dimensions.
Page 53 Without connectors Front view Right view Lower view Environmental Sensor — ENV-STD-LR-1 — v1.0...
Page 54: Optimizing Battery Life
Annex A Optimizing battery Life The Environmental Sensor has many functioning modes and the effect of their com- bination on battery life is remarkable. Depending on the use you are planning to make of this product, the battery life might go from a few days to years, making it very important to choose the settings wisely.
Page 55 EXPECTED BATTERY DURATION This table lists the expected battery durations based on various possible combination of usage of the three agents of the Environmental Sensor. Parameters not mentioned in the table have little or no effect on overall battery duration. Expected Noise agent Wind agent...
Page 56 (in which case the customer should check the compatibility on their own responsibility). A set of four replacement connectors (product code ENV-CON-4PF-1) is available upon request from Move Solutions, for use in custom probe integration or alternative sensor setups.
Page 57 Environmental Sensor — ENV-STD-LR-1 — v1.0...
Page 58 MOVE SOLUTIONS CUSTOMER ASSISTANCE SERVICE Visit the website at www.movesolutions.it for contact information relating to office addresses and telephone numbers. Instruction manual - rev.3...
Page 60 Move S.p.A. Piazza Cavour, 7, 20121 Milan - Italy Via Marcantonio Colonna, 35, 20149 Milano - Italy Via Carlo Piaggia, 382, 55100 Lucca - Italy 111 W Main St. Mt. Pleasant, PA 15666 - USA...
