Summary of Contents for Scooter Xtras XRANGE X-SFWCSC

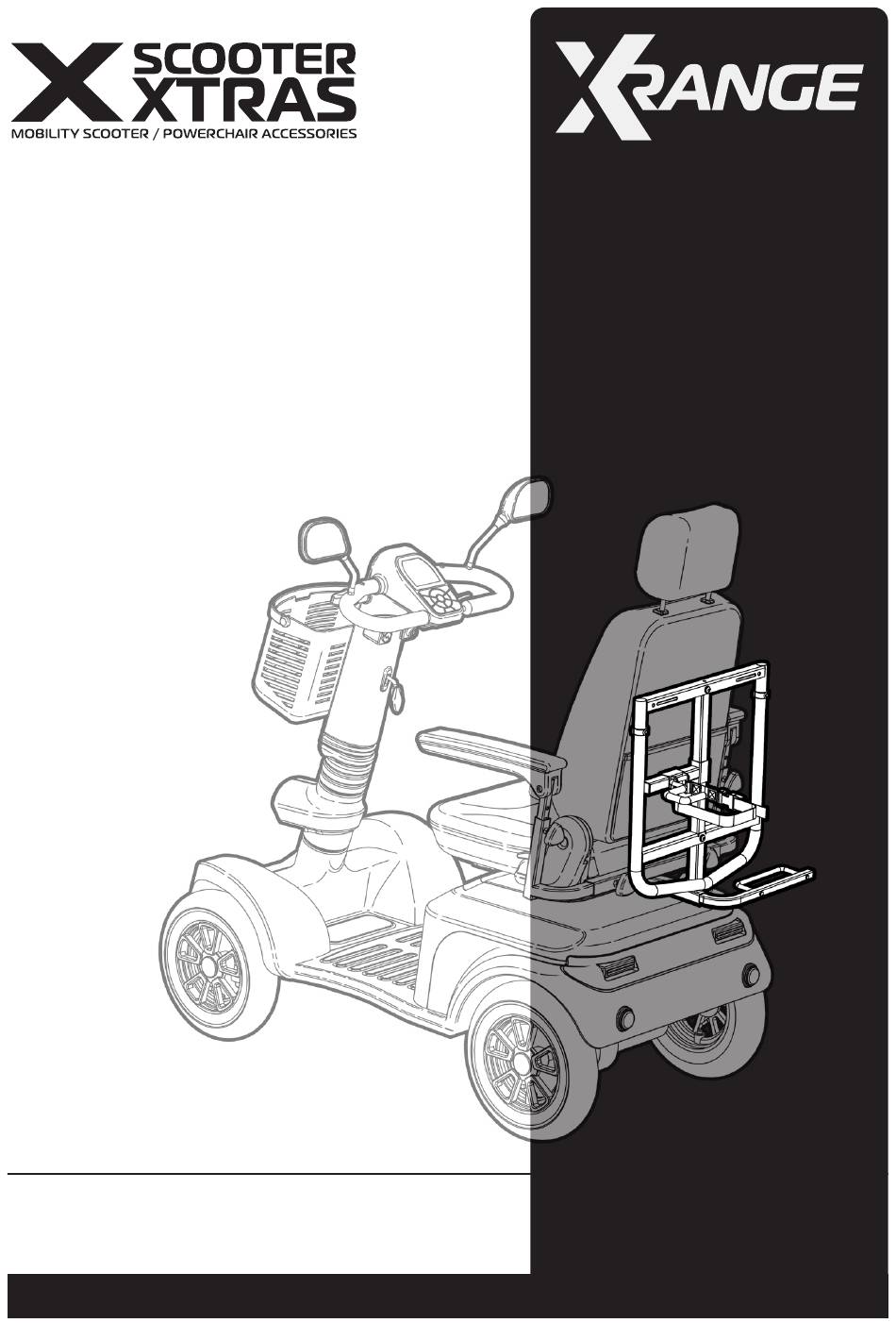

- Page 1 SIDE FOLDING WALKER CARRIER WITH SUN CANOPY MOUNT X-SFWCSC Edition 1 USER MANUAL Please read and keep these instructions scooterxtras.com ASK FOR THE BRAND...
- Page 2 Sun Canopy Mount user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of SCOOTER XTRAS. SCOOTER XTRAS strives to provide the highest quality products possible.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION PRODUCT OVERVIEW ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS ASSEMBLY - WHEEL CRADLE ASSEMBLY - SIDE ARM ASSEMBLY - HOOK STRAP ASSEMBLY - FIT ON SCOOTER MOUNTING USER GUIDELINES - SAFETY PRECAUTIONS PRODUCT CARE WARRANTY X RANGE scooterxtras.com ASK FOR THE BRAND... -
Page 4: Introduction
Thank you for purchasing this SCOOTER XTRAS product. If you have any issues or questions about the Side Folding Walker Carrier with Sun Canopy Mount please contact your supplier or SCOOTER XTRAS direct: T: +61 8 9248 4180 E: orders@for-de.com.au... -
Page 5: Product Overview
- Compact design to minimise bulk - Allows attachment of Hard Sun Canopy (X-HSC) SPECIFICATIONS (All dimensions shown are nominal) Product Weight: 5kg Please contact SCOOTER XTRAS if you would like any further information on the Side Folding Walker Carrier. scooterxtras.com ASK FOR THE BRAND... -
Page 6: Assembly
ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS 1 x Mount Arm 1 x Side Arm 1 x Carrier Frame 1 x Wheel Cradle 1 x Hook and Strap 2 x Bolt 2 x Nut 4 x Washer 1 x Spanner 1 x Allen Key Please take care when unpacking the product and removing the protective packing materials. -
Page 7: Wheel Cradle
ASSEMBLY - WHEEL CRADLE Follow these instructions to fit the wheel cradle to the mount arm. TOOLS NEEDED Mount Arm Wheel Cradle 1. Align the wheel cradle and mount arm as shown. 2. Side the wheel cradle into the mount arm. Use the allen key to tighten the bolt on the mount arm to fix the wheel cradle in place. -
Page 8: Assembly
ASSEMBLY - CARRIER FRAME Follow these instructions to fit TOOLS the mount arm to the carrier frame. NEEDED Insert the Position the hook and strap assembly as mount arm shown and slide onto the side arm. through the carrier frame as shown. -
Page 9: Assembly
ASSEMBLY - CARRIER FRAME CONTINUED Align the holes in the carrier frame with the holes in the mount arm. Washer Use the fixings provided to bolt mount arm to carrier frame as shown. Washer Bolt Your Side Folding Walker Carrier with Sun Canopy Mount is now assembled! scooterxtras.com ASK FOR THE BRAND... -
Page 10: Assembly
ASSEMBLY - FIT ON SCOOTER Follow these instructions to fit the Side Folding Walker Carrier with Sun Canopy Mount to the mobility scooter. Locate the socket at the rear of the scooter. Insert the mount arm into the socket to the required depth. -
Page 11: Mounting
Use the strap to secure the seat walker to the carrier. Please contact Scooter Xtras if you require more advice on mounting a seat walker to the Side Folding Walker Carrier. -
Page 12: User Guidelines
USER GUIDELINES - SAFETY PRECAUTIONS Please follow these guidelines to get the optimal benefit from the Side Folding Walker Carrier with Sun Canopy Mount. Failure to follow these guidelines may result in damage to the product, mobility scooter and put the user at risk. Please ensure all the parts of the Walker Carrier with Sun Canopy Mount have been fitted as instructed. -
Page 13: Product Care
Never apply heat to the Side Folding Walker Carrier with Sun Canopy Mount to dry after cleaning! Please contact Scooter Xtras if you require more advice on cleaning the Side Folding Walker Carrier with Sun Canopy Mount. scooterxtras.com... -
Page 14: Warranty
WARRANTY The SCOOTER XTRAS Side Folding Walker Carrier with Sun Canopy Mount (X-SFWCSC) is covered by a 12 Month Warranty from the date of purchase. If the product has any manufacturing faults during this period contact the place of purchase for assessment. Failures as a result of ACCIDENTAL MISUSE, MODIFICATION OR WEAR AND TEAR ARE NOT COVERED BY THIS WARRANTY. -
Page 15: Range
X RANGE Bag Carrier Walker Carrier X-BC X-WC Hard Sun Canopy X-HSC Side Folding Walker Carrier Side Folding with Sun Canopy Mount Walker Carrier X-SFWCSC X-SFWC Golf Bag Carrier Oxygen Bottle Carrier X-GBC X-OBC Refer to individual product sheets for more information. scooterxtras.com ASK FOR THE BRAND... - Page 16 DISTRIBUTOR: Proudly Australian Owned and Operated scooterxtras.com ASK FOR THE BRAND redgumbrand.com.au...
