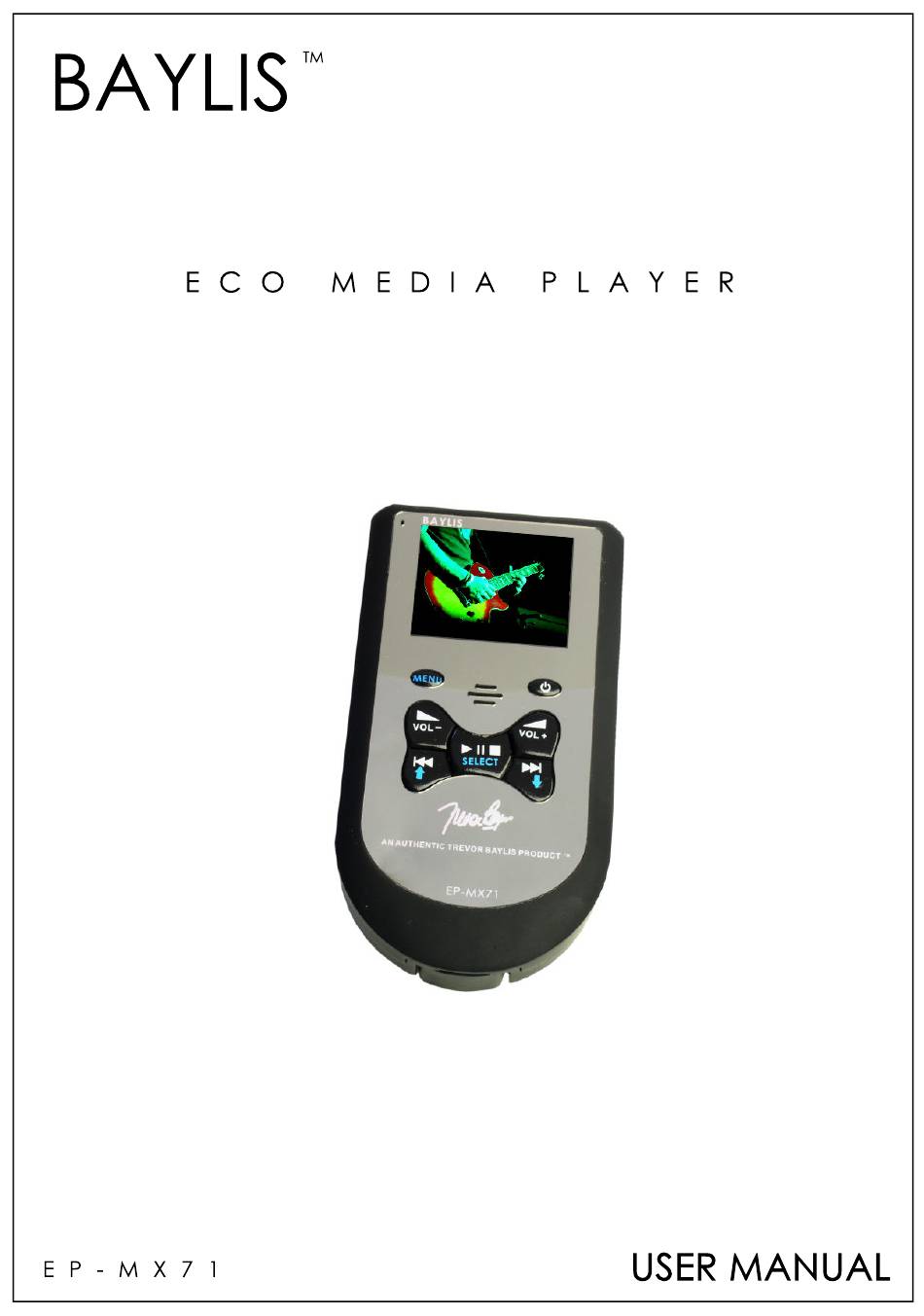

Page 1 Doc. ID: EPMX71-UM-1.20...
Page 2 It is acknowledged that such names are used only in such context and that their Intellectual Property and Copyright remain with the appropriate owner(s) and it is not intended nor implied that any connection exists between such trade names and TCL Products Ltd or Trevor Baylis Brands plc or their associates. Safety Tips.
Page 3 LANYARD EARPHONE LIGHT LENS ATTACHMENT SOCKET POINT MICROPHONE LCD SCREEN SD CARD SLOT MENU BUTTON POWER BUTTON USB PORT DECREASE VOLUME AUDIO INCREASE VOLUME LINE-IN SOCKET SELECT SKIP BACK SKIP FORWARD PLAY / SELECT PUSH SWITCH FOR TORCH LIGHT KEY-LOCK / CHARGING SWITCH GENERATOR HANDLE...
Page 4: Navigation Keys
NOTE: Some buttons have two actions depending on the Power Button concept of a brief press (press) or a press-and-hold (long- press). POWER BUTTON: Long-press to turn the device on or off. The Menu Button outer rim of the Power Button will glow blue when re-charging is in progress.
Page 5 CHARGING Charge either by hand winding, or by connection to a Key-Lock / Charging Switch computer USB port. LIGHT UNLOCK KEY-LOCK When the unit is new (or after several months of non-use) we INT. CHARGE EXT. CHARGE recommend that the device be fully charged by USB connection.
Page 6: Audio Play
MAIN MENU:- The Main Menu consists of a series of screens as shown in the left margin of this Guide. Use the keys to navigate through the Menu screens. Press Play/SELECT to choose desired function. Audio Play If the Main Menu is not displayed, long-press the Menu Button.
Page 7: Delete All
AUDIO PLAY SUB MENU (Continued): When Audio Play Sub Menu is displayed, use the keys (Skip Back / Skip Forward) to scroll through the menu Audio Play items, then press the Play/SELECT key to choose the current item. Screen Mode Local Memory SD Memory Press MENU to exit from any Sub Menu Display.
Page 8 5.26 REPEAT Audio Play The REPEAT menu has the following options:- Screen Mode Local Memory Repeat SD Memory Delete Normal Delete All Repeat one Repeat Folder Equaliser Repeat Folder Exit Repeat All Random Intro NORMAL will play all the contents of the Memory once through.
Page 9: Video Play
VIDEO PLAY: When Video Play is selected the Video Play screen will be displayed. Audio Play MEMORY LOCATION & NAME OF FOLDER VOLUME LEVEL BATTERY INDICATOR VIDEO CLIP SELECTED / TOTAL CLIPS PLAYABLE REPEAT MODE INDICATOR CURRENT VIDEO DETAILS PLAY / PAUSE / STOP STATUS Video Play CURRENT VIDEO...
Page 10: Audio Recorder
AUDIO RECORDER: When Audio Recorder is selected the Audio Record screen will be displayed. MEMORY LOCATION & NAME OF FOLDER BATTERY INDICATOR NEW AUDIO FILE NUMBER / VU BARS TOTAL AUDIO FILES Audio Recording (SOUND LEVEL INDICATION) REC / PAUSE / STOP STATUS NAME OF AUDIO FILE THAT WILL BE RECORDED...
Page 11: Rec Quality
7.22 SD Memory (if present) This option sets the memory location (“Folder”) of an SD card Audio Record into which your recording will be stored. (for further details refer to section 5.23 under Audio Play Sub Menu. Local Memory SD Memory Rec Quality 7.23 REC QUALITY Rec Type...
Page 12 FM RADIO When FM Radio is selected the FM Radio Screen will be displayed:- Audio Recording PRESET CHANNEL BATTERY INDICATOR NUMBER CURRENT FREQUENCY TUNING SCALE FM Radio The headphones act as an aerial, so reception is only possible while headphones are connected. 8.11 MANUAL TUNING Press the...
Page 13: Photo Viewer
PHOTO VIEWER When Photo View is selected a list of viewable photo files will be shown:- FM Radio Photo Viewer Main Folder Demo2 Flowers Elizabeth Beach at Nic. JPG Animation Photo View The three last characters of each line refers to the type of image file encoding.
Page 14: Display Text
10.1 EBOOK (Text Read) When Ebook is selected a list of viewable text files will be shown:- Photo View Text Read Main Folder Demotext STORY01 TALES OF T Ebook The device can display standard unformatted text. This type of text is usually stored in files of “.TXT” format. Many simple word processor programs can produce .TXT files, for example NOTEPAD within Microsoft Windows®...
Page 15: System Setting
11.1 SYSTEM SETTING When System Setting is selected the System Setting Menu will be displayed:- Ebook System Setting Clock LCD set Language Power off Memory info Firmware version Firmware upgrade System Setting Exit Press the (Skip Back / Skip Forward) keys to highlight desired Menu Option, then press Play/Select.
Page 16: Memory Info
11.17 FIRMWARE UPGRADE This option is not currently used. Instead a Firmware Upgrade Utility is provided on the supplied Utilities CD. Do NOT use any other Firmware than that issued by BAYLIS System Setting and specifically notified as supporting the EP-MX71 device.
