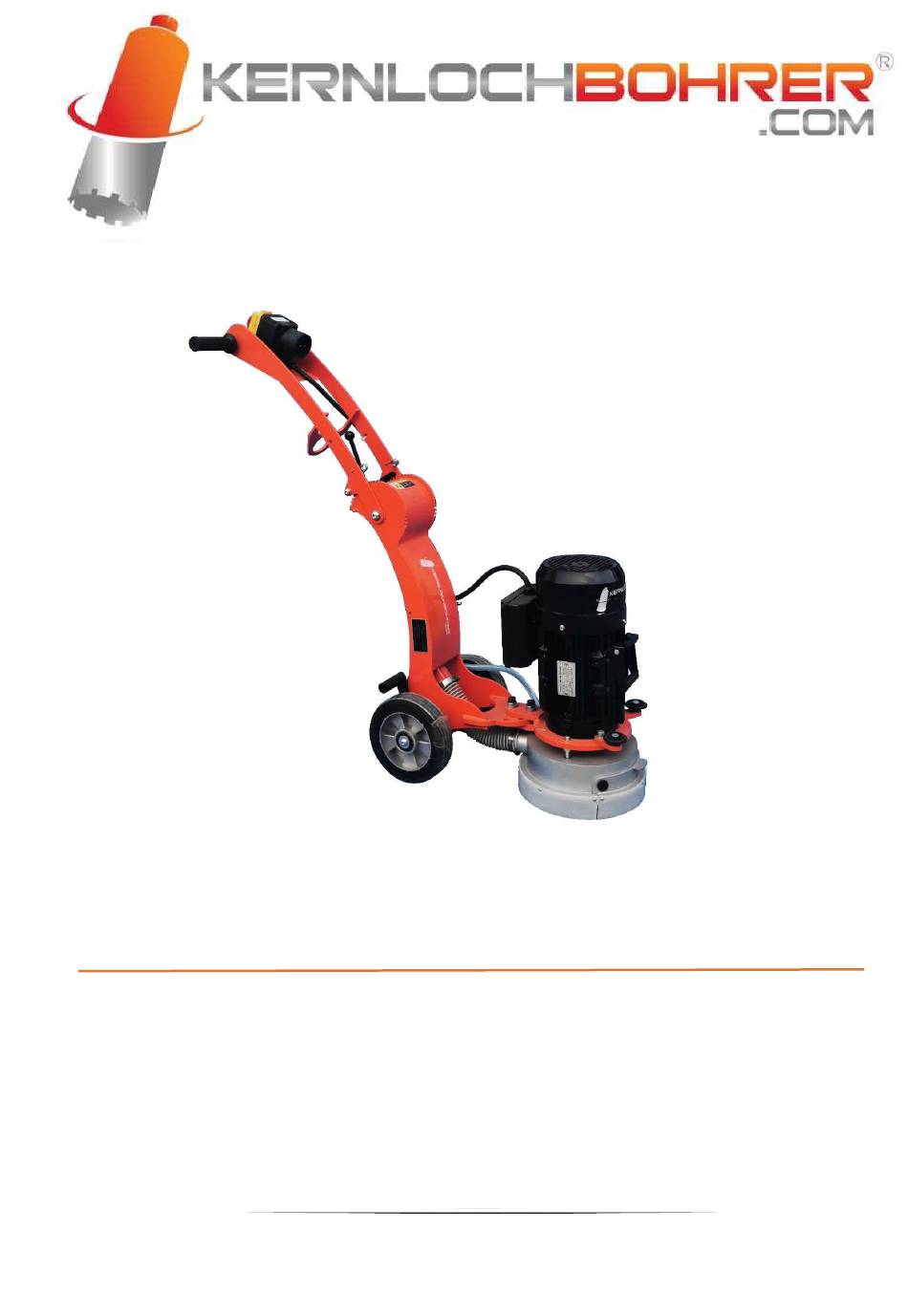

- Page 1 Betriebsanleitung Floor grinding machine BSM-250/E-PRO Kernlochbohrer GmbH Geigersbühlweg 52 72663 Großbettlingen Tel. 07022-5034900 E-Mail: info@kernlochbohrer.com Version 0 2. Output 08/2021...
-
Page 2: Table Of Contents
Content Introduction and description _________________________________________________ About this guide ___________________________________________________________ Important _________________________________________________________________ Technical data ____________________________________________________________ Operation ________________________________________________________________ Operating the grinding machine _____________________________________________ Stopping the grinding machine ______________________________________________ Note _____________________________________________________________________ Safety precautions Warning of respirable silica dust _____________________________________________ Troubleshooting Maintenance ______________________________________________________________ Environmental protection Noise/Vibration Warranty _________________________________________________________________... -
Page 3: Introduction And Description
(UVV) and the Employer's Liability Insurance Association (BG) must be observed. About this guide These operating instructions are for the model BSM-250/E-PRO Check the machine model against the type plate. Important: Read the entire instruction manual carefully before using the floor grinder. Special attention should be paid to the section "Safety precautions". -
Page 4: Safety Regulations
The casing system is unique in design in that it automatically adjusts to segment height and the floor angle. This enclosure system in combination with an industrial vacuum helps to avoid dust during sanding. The housing has 2 removable sections to allow the operator to manoeuvre the sander close to the wall. - Page 5 4. Be attentive, work with concentration and pay attention to what you are doing. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medicines. A moment of inattention can lead to serious injury. 5.
-
Page 6: Technical Data
12. Keep unused power tools out of reach of children. Do not allow persons to use the tool who are not familiar with it or have not read these instructions. Power tools are dangerous when used by inexperienced persons. 15. Note that the voltage must not exceed +/-5% of the nominal voltage. Higher voltages can cause irreparable damage. -
Page 7: Operating The Grinding Machine
Operating the grinding machine 1. Make sure that the diamond tool is suitable for the material to be ground and that the tool is properly balanced. 2. Make sure that the sanding plates are in good condition and correctly mounted. Never use damaged tools. -
Page 8: Note
Note: The position of the wheel axle can be adjusted as needed for levelling. 1. Adjust the vertical grinding position by loosening the level control counterclockwise. 2. Raising the leveling handle raises the rear end of the grinder. 3. Lowering the height adjustment handle lowers the rear end of the grinder. 4. -
Page 9: Warning Of Respirable Silica Dust
1. Do not use the grinder for longer than prescribed by local health and safety regulations, as noise exposure from extensive daily use can cause hearing damage. 2. Always wear ear protection, safety glasses, gloves, suitable footwear and a dust mask. 3. -
Page 10: Troubleshooting
Caution! Use all technical means to eliminate dust, aerosols and vapours at source wherever possible. Use common working practices and follow the recommendations of manufacturers/suppliers, BG-Bau and professional and trade associations. Water must always be used for dust suppression when wet grinding/cutting/drilling is possible. If the risk of inhalation of dust, aerosols and vapours cannot be excluded, the operator and bystanders must always wear a respirator approved by the trade association for the material used. -
Page 11: Maintenance
Maintenance Daily cleaning: The engine should always be kept clean. No water or foreign material should get inside the motor. Check operating current draw: While operating the motor, ensure that the operating current rating remains below the maximum value. Operating noises: No rubbing noises, squeaking noises or other random noises should occur while the motor is operating. -
Page 12: Noise/Vibration
Noise/Vibration The noise of this power tool is measured according to DIN 45 635, part 21. The sound pressure level at the workplace may exceed 85dB (A); in this case, sound protection measures for the operator are required. Wear hearing protection! Hand/arm vibration is typically lower than 2.5m/s². -
Page 13: Exploded View
Exploded view... -
Page 15: Spare Parts List
Ersatzteilliste Description Description Hexagon socket round screw M10*20 Fastening Horizontal adjustment handle Screw for corner wheel Spacer Corner wheel Axis Motor Wheel Cable Screw for dust cage Hexagon head screws Long PVC dust cover Spring washer Short PVC dust cover Centre folding part Hose Lower bracket... -
Page 16: Ec Declaration Of Conformity
Safety of machinery - General principles for design - Risk assessment and risk reduction (ISO 12100:2010) EN 60204-1:2018 Safety of machinery - Electrical equipment of machines - Part 1: General requirements Name and address of the person authorised to compile the technical file: Kernlochbohrer.com Geigersbühlweg 52 72663 Großbettlingen Location: Großbettlingen Date: 30.08.2021...
