Summary of Contents for zalux OREx1

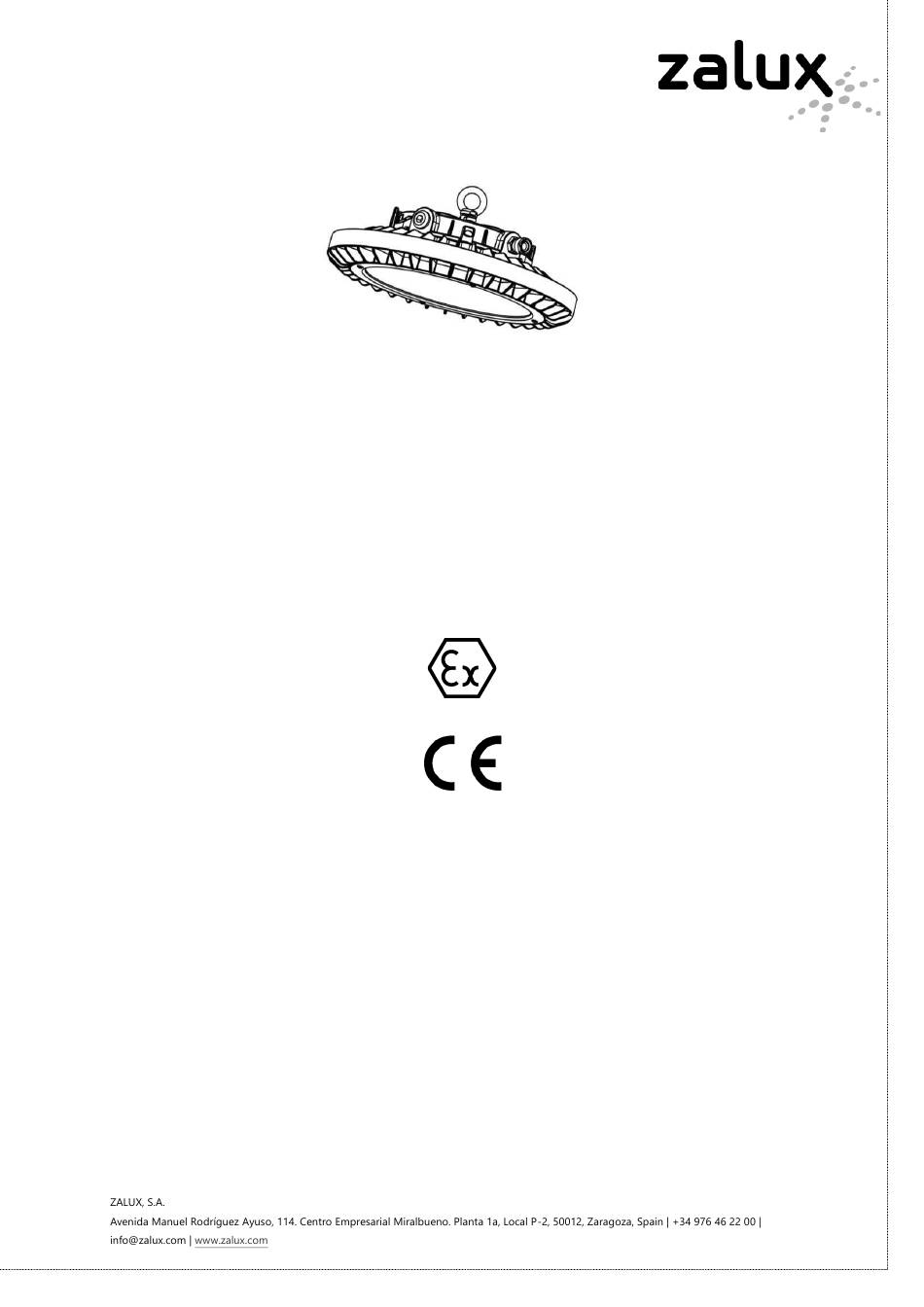

- Page 1 USER'S MANUAL Explosion-proof LED luminaire Type OREx1 G2 No. 52-1456/Z (ZxEx23009-201r0) November 2023...
-
Page 2: Table Of Contents
9. LIST OF SPARE PARTS ....................10 9.1. PSEHB1 power supply unit:..................10 ATTACHMENTS: 1. OREx1 G2 luminaire ......................Fig. 1 2. Luminaire connection diagram .................... Fig. 2 3. Register of cable gland installed by the customer ............... Tab. 1 4. -
Page 3: Introduction
OREx1 G2 luminaire No. 52-1456/Z (ZxEx23009-201r0) 1. Introduction The subject of this manual is an explosion-proof energy-saving luminaire type OREx1 G2 with a power of up to 160W, equipped with LED diodes of high luminous efficiency. 1.1. Intended use The OREx1 G2 luminaire is designed to illuminate, among others:... - Page 4 User's manual OREx1 G2 luminaire No. 52-1456/Z (ZxEx23009-201r0) Technical parameters Parameter name Value (unit) Power factor PF " 0.95 II 2G Ex eb ib mb op is IIC T5 Gb II 2D Ex tb op is IIIC T95°C Db for SPD variant:...
-
Page 5: Version Types
User's manual OREx1 G2 luminaire No. 52-1456/Z (ZxEx23009-201r0) Ambient Class Power temperature temperature -32°C to +60°C 40 - 80 W -32°C to +55°C 81 – 120 W T5 / T95°C -32°C to +50°C 121 – 160 W Permissible ambient temperature -32°C to +75°C... - Page 6 User's manual OREx1 G2 luminaire No. 52-1456/Z (ZxEx23009-201r0) Luminaire Lighting flux Electronic Cable gland Additional Diffuser type CRT + CCT size Tolerance ± 10% driver type type and size information None: stand- 38: Ø380 64: 6400 for 40W 840: CRI 80...
-
Page 7: Advantages Of The Luminaire
· gland M20. OREx1 G2 38 160-930 2HM25 R WU JB – OREx1 G2, 16 000 lm, CRI 90, 3000K LED ma- · trix, two holes for the M25 cable gland (cable gland in accordance with the list in point 8.2), symmetrical reflector, universal mounting, additional connection box. -
Page 8: Maintenance And Repairs
User's manual OREx1 G2 luminaire No. 52-1456/Z (ZxEx23009-201r0) Luminaire diagram Supply LED module Brown Yellow green LED power supply black Blue Blue White Control Mechanical assembly The back cover of the luminaire is screwed to the body with six M5 allen screws. The connec- tion is sealed with a dedicated silicone gasket. -
Page 9: Transport And Storage
User's manual OREx1 G2 luminaire No. 52-1456/Z (ZxEx23009-201r0) • Condition of the paint coat, especially when using a C5 category paint coat (on request). In the event of heavy soiling, the luminaire should be cleaned with a damp cloth. In the case of using a luminaire with a special paint coating in category C5, a coating control plan should be introduced in accordance with EN ISO 12944-8. -
Page 10: Additional Information
User's manual OREx1 G2 luminaire No. 52-1456/Z (ZxEx23009-201r0) 8. Additional information 8.1. CE marking The CE marking has been affixed under the following regulations: Explosion-proof equipment – Directive 2014/34/EU (ATEX) Electromagnetic compatibility – Directive 2014/30/EU (EMC) Restriction of hazardous substances – Directive 2011/65/EU (RoHS II) Information on the obtained certificates and standards applied to the equipment evaluation has been specified in the declaration of conformity attached to every copy of the device. -
Page 11: List Of Spare Parts
WV: wide voltage range SPD: overvoltage module **** To order a power supply, please provide its specific version in accordance with point 9.1. The marking of the power supply corresponds directly to the design of the OREx1 G2 fitting. Page 10 Revision 1... - Page 14 0 1 2 3 4 6 7 9 9 ! " # "...
- Page 15 0 1 2 3 4 6 7 8 9 9 9 9 4 0 4 ! "...
