progressive automations PW-RS1 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PW-RS1
User Manual
Scan for more information
V 1 . 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PW-RS1 and is the answer not in the manual?

Questions and answers

Summary of Contents for progressive automations PW-RS1

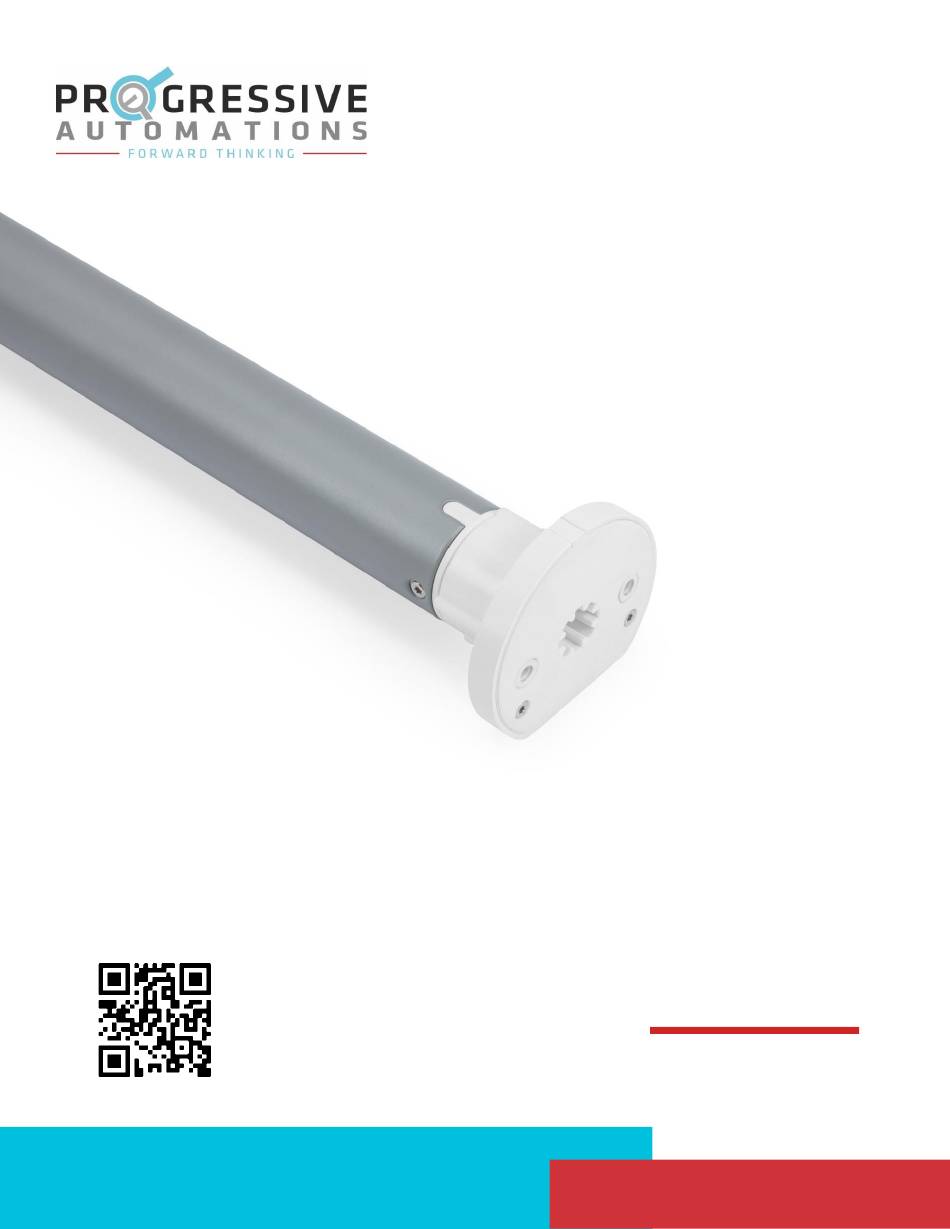

  • Page 1 PW-RS1 User Manual Scan for more information V 1 . 0...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Precautions ................3 Operating Notes .................................. 3 Warranty ..................................3 Force Restrictions ................................3 Operation Time ................................3 Specifications .................. 4 Key Features ................... 4 Components ..................5 Tools You Will Need ................................5 Button Identification ................. 6 Installation Steps ................

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS When installing and using your Progressive Automations Motorized Roller Blind Retrofit Kit, basic safety precautions should always be followed. Please read all safety precautions thoroughly and be familiar with all functions of the product before use. Apply all other relevant precautions when operating electrical and moving mechanical devices.

  • Page 4: Specifications

    SPECIFICATIONS Compatibility Roller Shades with Inner Tube Diameter of 1″ to 1 7/8″ Kit Includes 1x Motor 2x Roller Shade Brackets 1x Solar Panel 2x Solar Panel Brackets 1x Wireless Remote 13x Adapters 1x End Plug Solar Panel Dimensions 20″ x 2.5″ Solar Panel Installation Brackets or 3M Adhesive Motor Battery Type...

  • Page 5: Components

    COMPONENTS TOOLS YOU WILL NEED Drill Screwdriver Tape Measure Pencil Part Part Motor Solar Panel Bracket (Motor Solar Panel side) Brackets Bracket (End Plug 3M Adhesive side) End Plug Wireless Remote + Wall Bracket Adapter Set Zero Remote Battery Adapter Set A Remote Bracket Screws Adapter Set B...

  • Page 6: Button Identification

    BUTTON IDENTIFICATION Description Motor Head Button (H) Used for pairing the motor with the remote, performing initial setup functions, and resetting the motor. Blue and Orange LED indicator. USB Charging Port Plug in the Solar Panel cord or use a USB-C charging cable (not included). Symbol Description Rolls the roller shade up.

  • Page 7: Installation Steps

    INSTALLATION STEPS STEP 1 – PAIR THE MOTOR TO THE WIRELESS REMOTE For the first-time setup, press the H button on the motor head three times to power on the motor. Then, follow the steps below to pair the motor with the wireless remote. STEP 2 –...

  • Page 8: Step 4 - Assemble The Motor And End Plug

    Option 2: Install Set A, B, C, or D Adapters 1. Align the flanged end of the selected Crown Adapter (A-2, B-2, C-2, or D-2) with the motor drive adapter. Slide the Crown Adapter past the motor drive adapter all the way to the motor end, as seen below. 2.

  • Page 9: Step 6 - Install The Roller Shade

    2. Mark the Bracket Locations a. Hold each bracket in place where you plan to install it. b. Use a pencil to mark the screw holes. c. Ensure the brackets are level and aligned so the shade will operate smoothly. 3.

  • Page 10: [Optional] Step 9 - Install The Solar Panel

    2. Set the Lower Limit a. Move the shade to the desired lowest stop position. b. Press the Down & Fav buttons for 2 seconds. The motor will jog twice. c. The lower limit is now set. [OPTIONAL] STEP 9 – INSTALL THE SOLAR PANEL Position the solar panel for optimal sunlight exposure by using the included solar panel brackets or 3M adhesive tape.

  • Page 11: Operations

    OPERATIONS ONE-TOUCH OR CONSTANT-TOUCH MODE Toggle between one-touch and constant-touch mode by following the instructions below. Note: When the motor is in one-touch mode, holding the Up or Down button for 2 seconds will enable constant-touch mode. SET FAVOURITE HEIGHT POSITION Note: The favorite position can only be set if upper and lower limits are set.

  • Page 12: Adjusting Motor Speed

    Adjust Lower Limit ADJUSTING MOTOR SPEED The motor has 3 speed options - 20, 24 (default), or 28 RPM. Adjust the speed by following the instructions below. REMOVING WIRELESS REMOTES Remove a single remote. Remove remote B using pre-existing remote A. PAIR MOTOR TO NEW REMOTE USING AN EXISTING REMOTE Add remote B using pre-existing remote A.

  • Page 13: Troubleshooting

    TROUBLESHOOTING Problem Possible Cause(s) Corrective Action Motor does not function 1. Controller not paired 1. Add controller 2. Motor not powered on 2. Press the motor button 3 3. Lower battery times to wake up 3. Charge motor using 5V USB- C adapter (2A or higher) Motor stops suddenly 1.
