717-R2 Tester Operation Guide
CANADA
Garnet Instruments Ltd.
286 Kaska Road
Sherwood Park, AB T8A 4G7
For use with all displays
including RVCs.
Version 1.2 19-Nov-2024
USA
Garnet US Inc.
5360 Old Granbury Road
Granbury, TX 76049
garnetinstruments.com
1-800-617-7384

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEELEVEL 717-R2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Garnet SEELEVEL 717-R2

  • Page 1 717-R2 Tester Operation Guide For use with all displays including RVCs. Version 1.2 19-Nov-2024 CANADA Garnet Instruments Ltd. Garnet US Inc. garnetinstruments.com 286 Kaska Road 5360 Old Granbury Road 1-800-617-7384 Sherwood Park, AB T8A 4G7 Granbury, TX 76049...

  • Page 2: Table Of Contents

    2024 Garnet Instruments Ltd. All rights reserved. No part of this publication may be reproduced, Transmitted, transcribed, stored in a retrieval system or translated into any language in any form by any means without the prior written consent of Garnet Instruments. Information in this manual is subject to change without notice and does not represent a commitment on the part of Garnet.

  • Page 3: Introduction

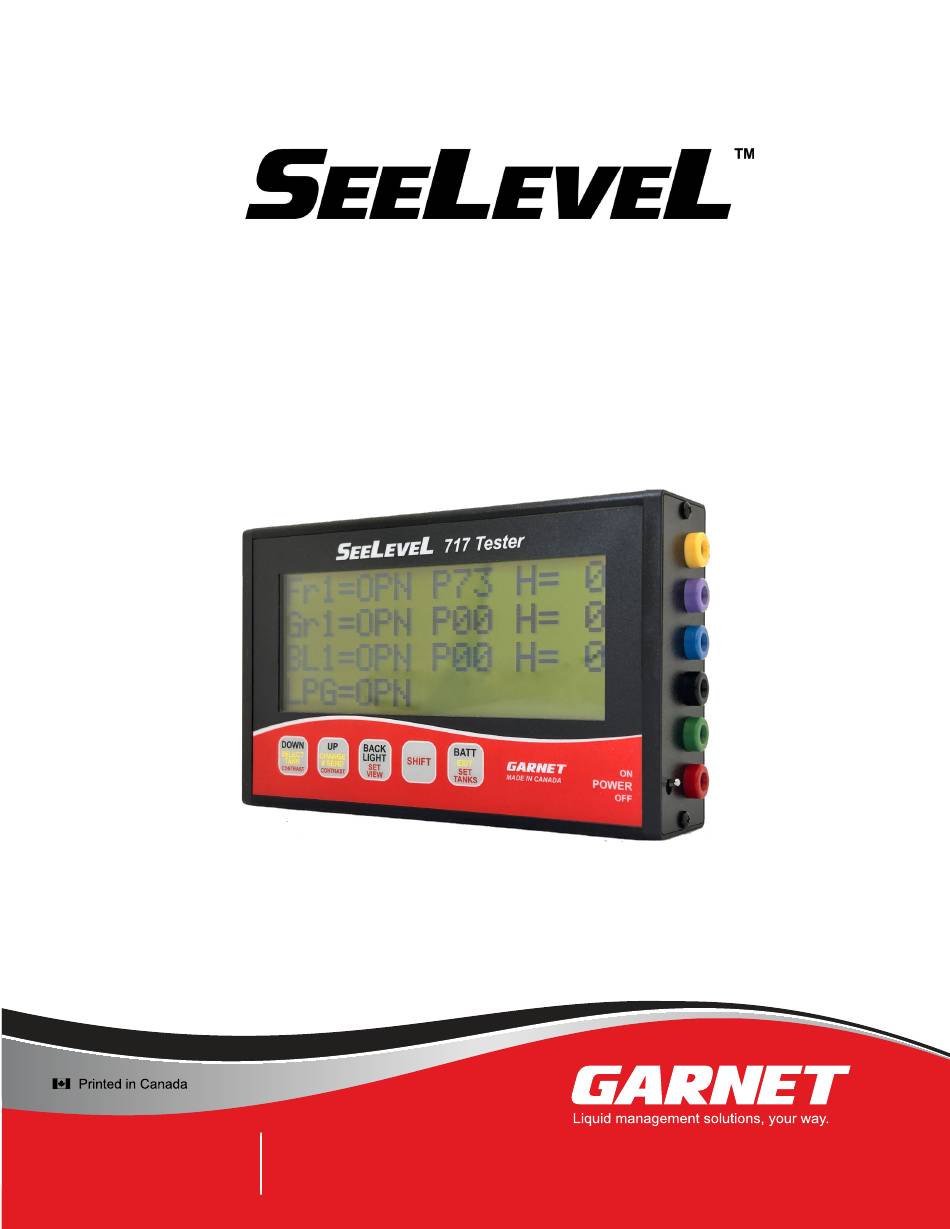

    SeeLeveL 717 Tester 1.0 INTRODUCTION 1.1 OVERVIEW The SeeLeveL 717 Tester is a specialized testing device designed for use with SeeLeveL II and SeeLeveL Soul Tank Monitors. The 717 Tester allows installers to perform various tasks, including testing and calibrating tank senders, diagnosing possible system errors, and verifying display performance.

  • Page 4: Getting Started

    SeeLeveL 717 Tester 2.0 GETTING STARTED 2.1 QUICK GUIDE POWER ON AND SELECT VIEWING MODE SENDER DIAGNOSTIC CHECK 1. Turn on the tester. 1. Turn on the tester. 2. Ensure the correct viewing mode and tank settings are 2. Select desired viewing mode. selected: 3.

  • Page 5: Button Functions

    SeeLeveL 717 Tester 2.2 BUTTON FUNCTIONS The buttons on the device have multiple functions. Here’s a breakdown of each button’s primary and secondary functions: Figure 2.2a Front Panel Display 2.3 CONNECTOR INFORMATION CONNECTOR FUNCTION POWER GREEN BLACK GROUND BLUE SENDER SIGNAL PURPLE RV-C Hi YELLOW...

  • Page 6: Battery Information

    SeeLeveL 717 Tester 2.4 BATTERY INFORMATION To operate the tester, you’ll need 6 x AA alkaline batteries. Battery life: NOTE: Expect increased battery • With backlight off: approximately 250 hours of continuous use. consumption when using the “709 display • With backlight on: around 10 hours of continuous use. test”...

  • Page 7: Setting Up The Tester

    SeeLeveL 717 Tester 3.0 SETTING UP THE TESTER 3.1 SETTINGS • Viewing Modes • LCD Contrast • Tank Sender Configuration (including whether they are double stacked) Refer to “Figure 2.3a Front Panel Display” on page 5 for button descriptions. 3.2 VIEWING MODES • Detailed display, Brief display, Sensor pad data, 709 display test and calibration, and RVC data display SHIFT SET VIEW...

  • Page 8: Lcd Contrast Setting

    SeeLeveL 717 Tester Sender Pad Locations: • Top sender pad is number 1. • The number increases as you go down the sender (see sender positions diagram). • Double-stacked AR, AR2, or ES3 senders can have up to 18 pads. Sender pad positions bottom double-stacked 709 display test and calibration Mode...

  • Page 9: Using The Tester

    SeeLeveL 717 Tester 4.0 USING THE TESTER 4.1 CONNECTION AND DIAGNOSTICS The connection and diagnostic section provides instructions for connecting the tester to tank senders, identifying potential errors, and interpreting diagnostic messages. Connect to Sender Bus 1. Turn on the tester and ensure it is set to the desired viewing mode with correct tank and sender configurations.

  • Page 10: 709 Display Test And Calibration Mode

    SeeLeveL 717 Tester 4.3 709 DISPLAY TEST AND CALIBRATION MODE In the 709 display test and calibration mode, the screen will show “13V to calibrate display battery voltage reading. 100R to cal LPG.” 1. To operate or calibrate a display •...

  • Page 11: Rvc Data Display Mode

    SeeLeveL 717 Tester 4.4 RVC DATA DISPLAY MODE 1. Ensure tester is powered on and connected to senders. 2. If the display or Soul are not powered from another source, the +13V output on the red test lead can be used to provide power (this may reduce battery life).

  • Page 12: Specifications

    SeeLeveL 717 Tester 5.0 SPECIFICATIONS 717 TESTER Enclosure Material Aluminum Enclosure size 106 mm wide (4.175") x 160 mm high (6.30") x 28.5 mm deep (1.12") Display type LCD, backlit. Can be turned on or off to conserve batteries Display size 60.96 mm ( 2.4") x 24.13 mm (0.95") Battery power Powered by 6 alkaline AA batteries, field replaceable with no memory loss • With backlight off: approximately 250 hours of continuous use. • With backlight on: around 10 hours of continuous use. Temperature range Use in dry, moderate temperature locations SAFETY INFORMATION Compliance and CAN ICES-003(B)/NMB-003(B)

  • Page 13: Warranty & Service Information

    Garnet Instruments Ltd. warrants equipment manufactured by Garnet to be free from defects in material and workmanship under normal use and service for a period of one year from the date of sale from Garnet or an Authorized Dealer. The warranty period will start from the date of purchase or installation. Under these warranties, Garnet shall be responsible only for actual loss or damage suff ered and then only to the extent of Garnet’s invoiced price of the product.

Table of Contents
