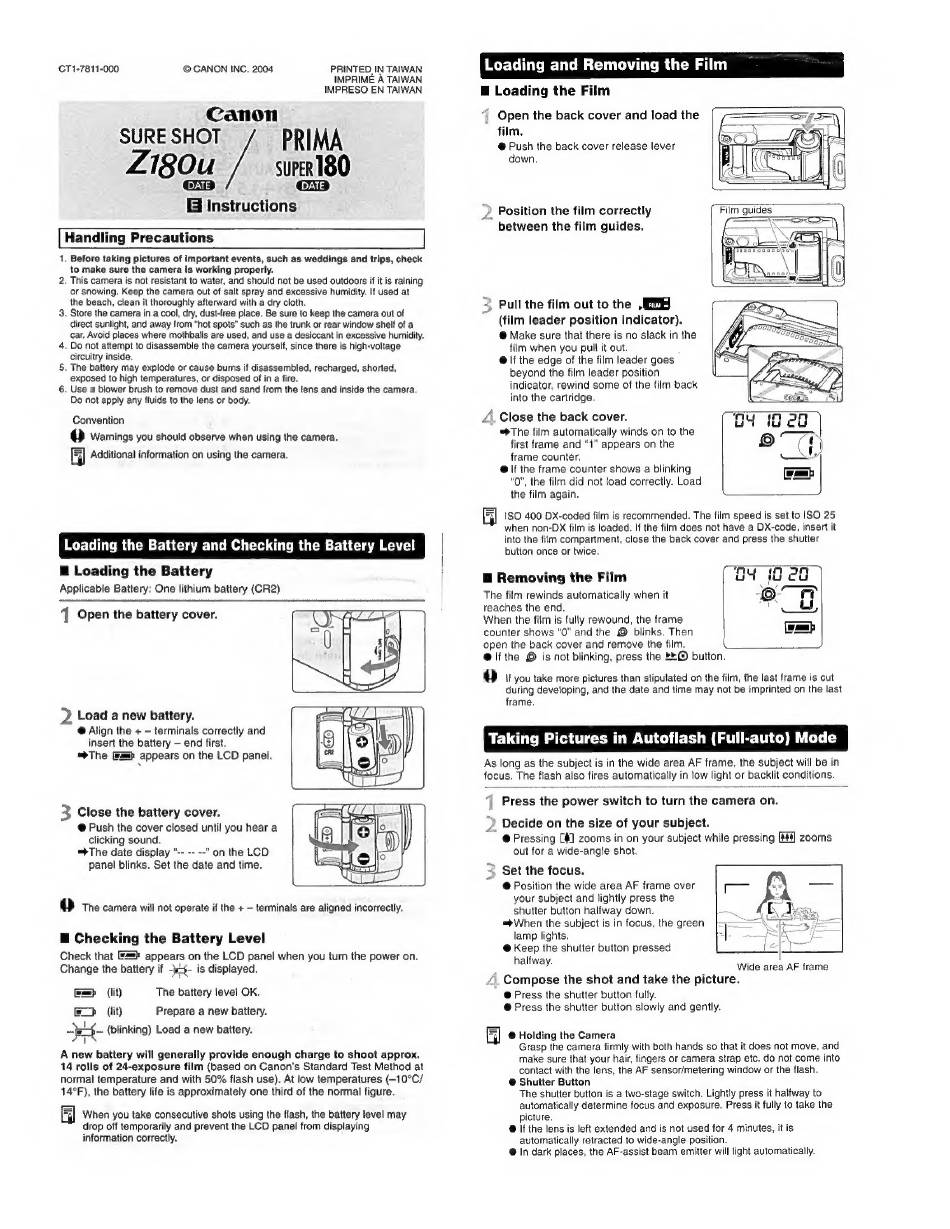

Canon Sure Shot Z180u Date Instructions
Canon Sure Shot Z180u Date Instructions

Canon Sure Shot Z180u Date Instructions

Advertisement

Quick Links

CT1-7811-000
© CANON
INC. 2004
PRINTED
IN TAIWAN
IMPRIME A TAIWAN
IMPRESO
EN TAIWAN
Canon
SURE SHOT
PRIMA
Z180u
super 180
Gi Instructions
Handling Precautions
. Before taking pictures of important events, such as weddings and trips, check
to make sure the camera is working properly.
This camera is not resistant to water, and should not be used outdoors if it is raining
or snowing. Keep the camera out of salt spray and excessive humidity. If used at
the beach, clean it thoroughly afterward with a dry cloth.
3. Store the camera in a cool, dry, dust-free place. Be sure to keep the camera out of
direct sunlight, and away from "hot spots" such as the trunk or rear window shelf of a
car. Avoid places where mothballs are used, and use a desiccant in excessive humidity.
. Do not attempt to disassemble the camera yourself, since there is high-voltage
circuitry inside.
The battery may explode or cause burns if disassembled, recharged, shorted,
'exposed to high temperatures, or disposed of in a fire.
6. Use a blower brush to remove dust and sand from the lens and inside the camera.
Do not apply any fluids to the lens or body.
N
a
m
Convention
Q Warnings you should observe when using the camera.
A Additional information on using the camera.
oading the Battery and Checking the Battery Level
E Loading the Battery
Applicable Battery: One lithium battery (CR2)
1 Open the battery cover.
J Load a new battery.
@ Align the + — terminals correctly and
insert the battery — end first.
=The mæ} appears on the LCD panel.
3 Close the battery cover.
@ Push the cover closed until you hear a
clicking sound.
=The date display "-- -- --" on the LCD
panel blinks. Set the date and time.
@ The camera will not operate if the + — terminals are aligned incorrectly.
E Checking the Battery Level
Check that E=} appears on the LCD panel when you turn the power on.
Change the battery if 4- is displayed.
(wap
(lit)
The battery level OK.
(lit)
Prepare a new battery.
H-
(blinking) Load a new battery.
TTS
A new battery will generally provide enough charge to shoot approx.
14 rolls of 24-exposure film (based on Canon's Standard Test Method at
normal temperature and with 50% flash use). At low temperatures (-10°C/
14°F), the battery life is approximately one third of the normal figure.
When you take consecutive shots using the flash, the battery level may
drop off temporarily and prevent the LCD panel from displaying
information correctly.
Loa
E Loading the Film
Open the back cover and load the
film.
@ Push the back cover release lever
down.
) Position the film correctly
between the film guides.
Pull the film out to the „ETB
(film leader position indicator).
@ Make sure that there is no slack in the
film when you pull it out.
@ If the edge of the film leader goes
beyond the film leader position
indicator, rewind some of the film back
into the cartridge.
4. Close the back cover.
=The film automatically winds on to the
first frame and "1" appears on the
frame counter.
@ If the frame counter shows a blinking
"O", the film did not load correctly. Load
the film again.
ISO 400 DX-coded film is recommended. The film speed is set to ISO 25
when non-DX film is loaded. If the film does not have a DX-code, insert it
into the film compartment, close the back cover and press the shutter
button once or twice.
E Removing the Film
ay
ig
The film rewinds automatically when it
reaches the end.
When the film is fully rewound, the frame
counter shows "0" and the © blinks. Then
open the back cover and remove the film.
\
@ Ifthe © is not blinking, press the *© button.
Q
If you take more pictures than stipulated on the film, the last frame is cut
during developing, and the date and time may not be imprinted on the last
frame.
king Pictures
in Autoflash (Full-auto) Mode
As long as the subject is in the wide area AF frame, the subject will be in
focus. The flash also fires automatically in low light or backlit conditions.
Press the power switch to turn the camera on.
_ )
Decide on the size of your subject.
@ Pressing [$] zooms in on your subject while pressing [H] zooms
out for a wide-angle shot.
Set the focus.
@ Position the wide area AF frame over
your subject and lightly press the
shutter button halfway down.
=When the subject is in focus, the green
lamp lights.
@ Keep the shutter button pressed
halfway.
Wide area AF frame
Compose the shot and take the picture.
@ Press the shutter button fully.
@ Press the shutter button slowly and gently.
@ Holding the Camera
Grasp the camera firmly with both hands so that it does not move, and
make sure that your hair, fingers or camera strap etc. do not come into
contact with the lens, the AF sensor/metering window or the flash.
@ Shutter Button
The shutter button is a two-stage switch. Lightly press it halfway to
automatically determine focus and exposure. Press it fully to take the
picture.
@ If the lens is left extended and is not used for 4 minutes, it is
automatically retracted to wide-angle position.
@ In dark places, the AF-assist beam emitter will light automatically.
