Summary of Contents for XAG 2024 Battery Cooling Tower

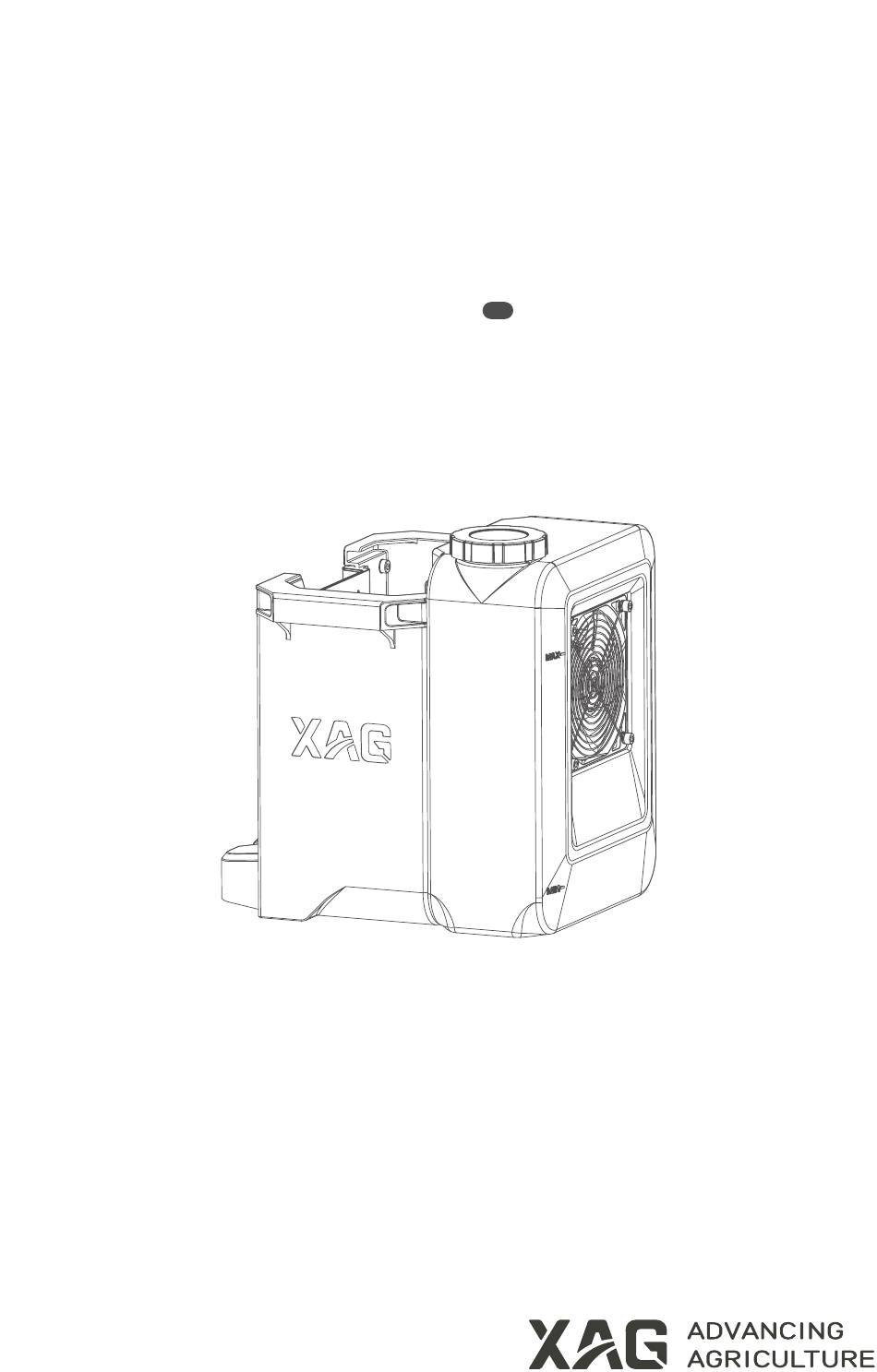

- Page 1 XAG 2024 Battery Cooling Tower User Manual Version 1.0...
- Page 2 To User Dear user, thank you for choosing XAG's product. For safety purposes and better user experience, it is highly recommended that you read this manual carefully and strictly follow the instructions hereof. Contact Us Manufacturer: Guangzhou Xaircraft Technology Co., Ltd.
-
Page 3: List Of Items
Introduction XAG 2024 Battery Cooling Tower (hereinafter referred to as "cooling tower") is a cooling charging device for XAG Smart Supercharge Battery (hereinafter referred to as "battery"). It adopts a brand-new mist cooling solution, realizing instant charging upon landing. Used with an XAG charger or supercharge station, the cooling tower can provide a cool charging environment for one battery each time. -
Page 4: How To Use
How to Use ① Unscrew the water tank cover counterclockwise, add clean and non-corrosive water (the water level should not exceed the max water level marked on the water tank), and then tighten the cover clockwise. Water Level ② Fit the charger or supercharge station plug to the cooling tower's plug holder and tighten the two screws clockwise to secure the plug to the holder. - Page 5 Direct removal may cause the charger/supercharge station to trigger over- voltage protection, resulting in a shutdown. Please remove the battery before draining the cooling tower. This product is only applicable for charging XAG B13960S and B13970S Smart Supercharge Batteries. Charge with Charger XAG CM13600BH Charger...
-
Page 6: Specifications
Weight About 2 kg Max Capacity Input Voltage 39~60 V Rated Power 80 W Water Consumption ≤ 500 mL/h Cooling Method Mist Cooling Operating Ambient Temperature 10~45 ℃ XAG B13960S Smart Supercharge Battery, XAG B13970S Smart Compatibility Supercharge Battery www.xa.com/en... - Page 7 ・ Do not use damaged cooling tower or related charging devices. If repair or replacement is needed, please contact XAG or the after-sales service outlets. ・ It is strictly prohibited to use smart batteries or charging devices that are not produced by XAG for charging. Users will bear the corresponding responsibility for any charging accidents, battery failures, flight failures or other accidents arising therefrom.
- Page 8 6. To the maximum extent permitted by law, XAG shall not be liable for any losses caused by your improper operation. In addition, XAG shall not be liable for any indirect, consequential, punitive, accidental, special, or exemplary damages, including any loss incurred as a result of your purchase, use, or inability to use the product (even if you have been advised of the possibility of such loss).
-
Page 9: Compliance Information
Suppliers phone number and / or internet contact information: +1 (503) 866-1228 EU Compliance Statement “Hereby, [Guangzhou Xaircraft Technology CO.,LTD.], declares that this [XAG 2024 Battery Cooling Tower] is in compliance with the essential requirements and other relevant provisions of 2014/53/EU. - Page 10 @XAGofficial @xag_official @XAG Official This document is subject to update without prior notice. ©Guangzhou Xaircraft Technology CO., LTD. All Rights Reserved. All information in this User Manual (including but not limited to any text description, illustrations, photos, methods and processes) belongs to Guangzhou Xaircraft Technology CO., LTD. and is protected by copyright law. Without written authorization, no individual or institution is allowed to reproduce, extract, translate, distribute, or otherwise reproduce or quote any content hereof.
