Summary of Contents for Captron CANEO 41 Solid Series

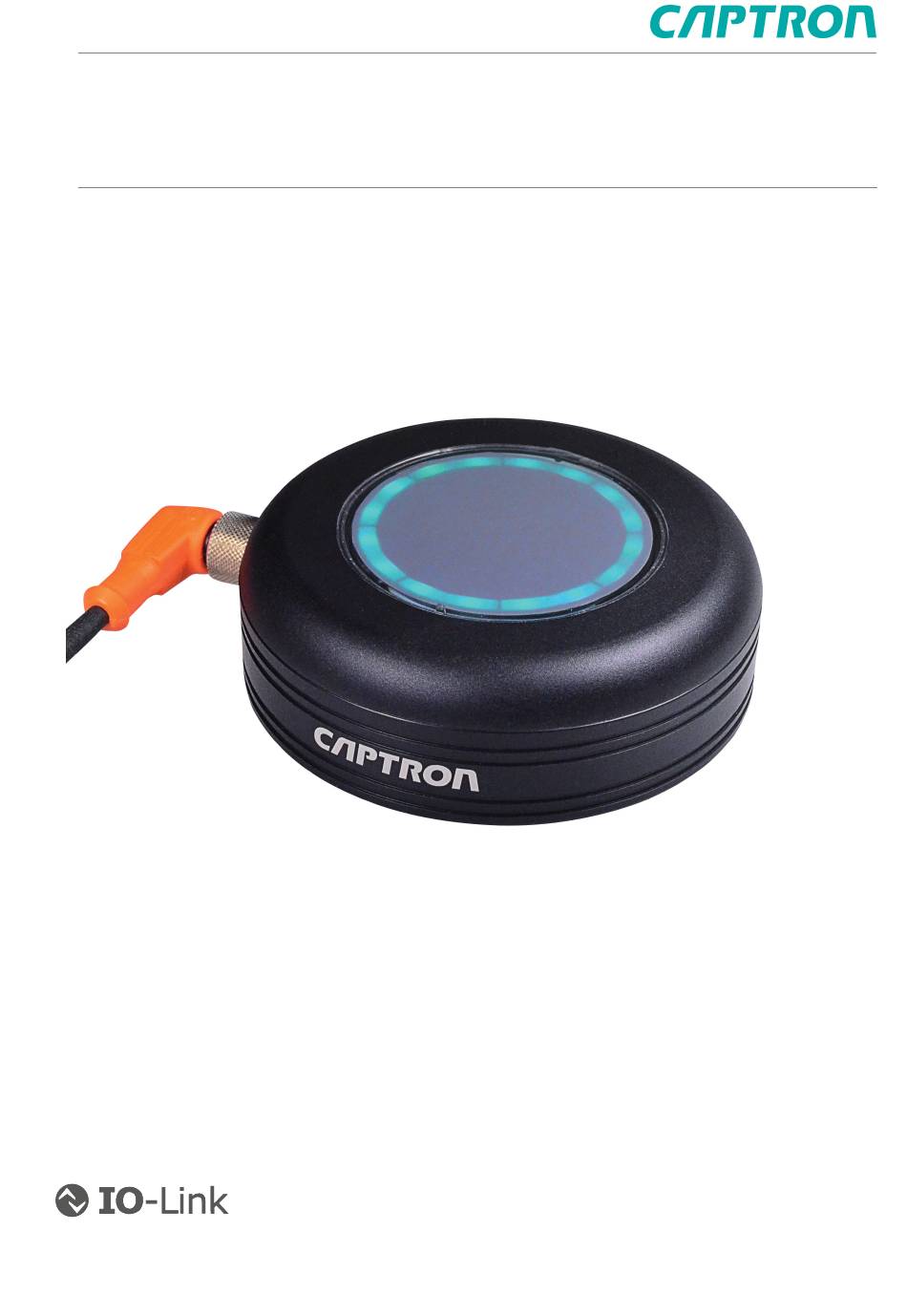

- Page 1 CANEO CANEO Original operating instructions Original operating instructions series41 Solid series41 Solid...
-
Page 2: Table Of Contents
Table of Contents Safety.......................... 3 General safety........................3 Personnel qualifications..................... 3 Intended use........................3 Reasonably foreseeable misuse..................3 Notes and symbols used....................3 General description.....................4 Technical specifications....................5 Dimensional drawing......................6 Drilling pattern........................7 Connection plan......................... 7 Connection options......................8 Assembly........................8 Operation........................9 Maintenance operations................... -
Page 3: Safety
Safety General safety All work on electrical systems or operating equipment may only be carried out by a specially qualified electrician according to the applicable electrotechnical regulations. The safety of the system in which the SENSORswitch is integrated is the responsibility of the operator. Personnel qualifications A qualified electrician is a person with suitable technical training, expertise and experience as well as knowledge of relevant standards, who can evaluate the work assigned to them correspondingly and... -
Page 4: General Description
CAUTION Caution designates a hazardous situation, which, if ignored, may lead to injury. The symbol next to the warning indicates the type and source of the danger. NOTICE Notice designates a situation, which may cause material damages and impair the product’s function if attention is not paid. -
Page 5: Technical Specifications
Technical specifications series41 Operating voltage DC 24 V (19.2 to 28.8 V) Load current max. 200 mA Output Adjustable PNP / NPN; NO / NC Length of output pulse Adjustable Reverse polarity protection Protection of all cables/lines Short circuit protection Protected against short circuit and overload Voltage drop Max. -
Page 6: Dimensional Drawing
Dimensional drawing Metric and imperial measurements are used in drawings. Imperial measurements are marked with [ ]. 6/13 Original operating instructions... -
Page 7: Drilling Pattern
Drilling pattern Metric and imperial measurements are used in drawings. Imperial measurements are marked with [ ]. Connection plan 3-pin brown +VDC black IO - Link Communication (NPN / PNP NO / NC) blue The product description will indicate the configuration. Original operating 7/13 instructions... -
Page 8: Connection Options
4-pin white brown +VDC black IO - Link Communication (NPN / PNP NO / NC) blue The product description will indicate the configuration. 5-pin white grey brown +VDC black IO - Link Communication (NPN / PNP NO / NC) blue The product description will indicate the configuration. -
Page 9: Operation
Requirements: Mounting surface is level and clean (maximum unevenness of the mounting flange 0.2 mm). ► Disconnect the system from its voltage supply and secure it against being switched on again. ► Set the desired position of the SENSORswitch and mark the holes for the mounting screws according to the drilling pattern. -
Page 10: Maintenance Operations
Maintenance operations Carry out the following maintenance operations at the specified intervals. Maintenance operation as needed annually Clean the button surface Check cables for intactness and firm fit Check screw connections for tightness NOTICE Solvents contained in cleaning agents can attack the plastic of the button! Clean the surface of the button with a neutral cleaning agent or a damp microfiber cloth. -
Page 11: Imprint
Imprint The operating instructions have been authored and published by CAPTRON Electronic GmbH Johann-G.-Gutenberg-Straße 7 82140 Olching – Germany Tel.: +49 (0) 8142 44 88 – 160 sales@captron.com www.captron.com Copyright 2024 CANEO series41 Solid 1.5 Original operating 11/13 instructions... - Page 12 12/13 Original operating instructions...
-
Page 13: Product Description
Product description Original operating 13/13 instructions...
