Cooper Lighting Solutions Metalux SLSTP Installation Instructions

IB51972922

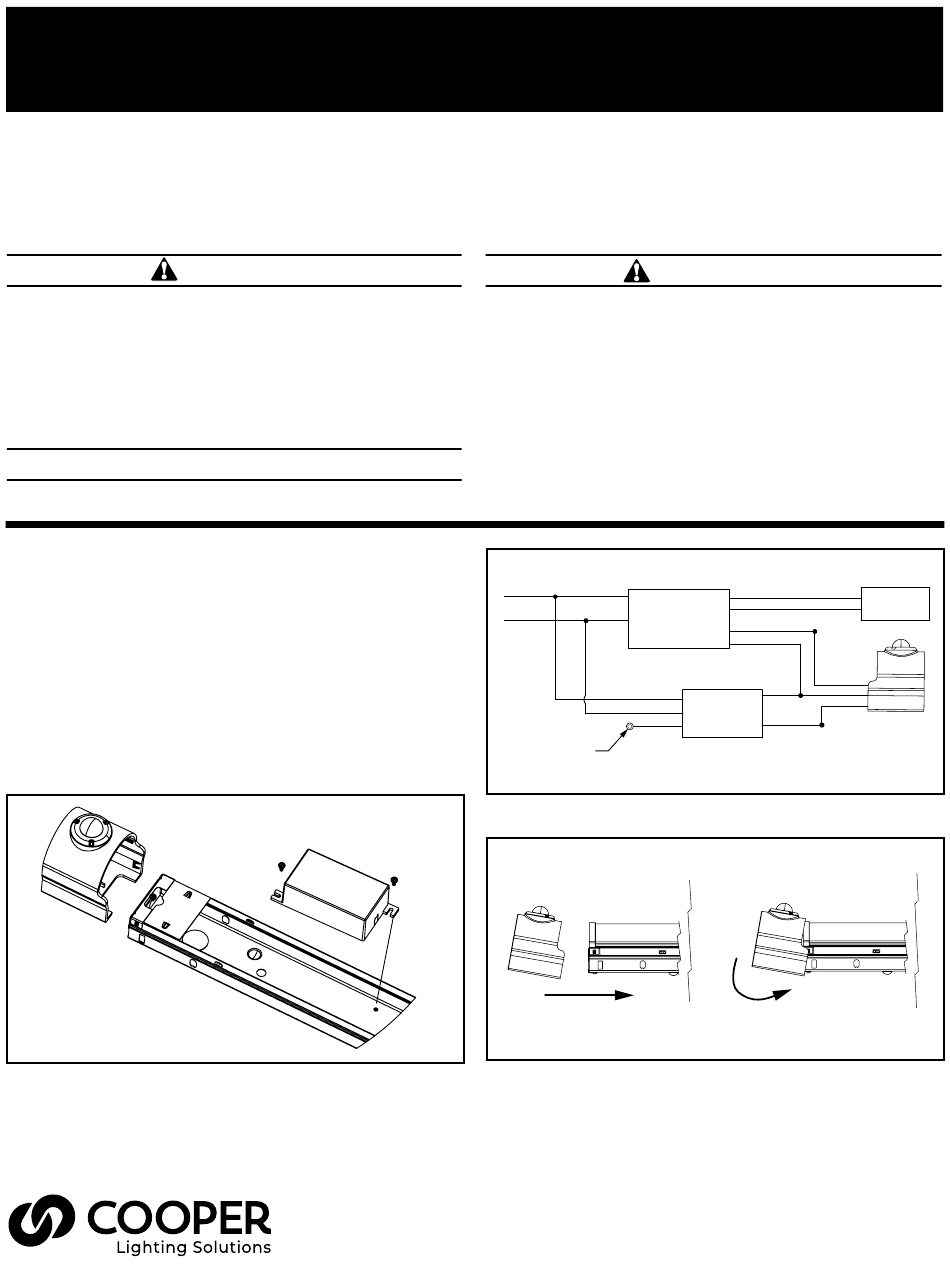

Installation Instructions – SLSTP SENSOR KIT
Instructions d'installation – TROUSSE DE CAPTEUR SLSTP
Instrucciones de instalación – KIT DE SENSORES SLSTP
WARNING
Risk of fire, electrical shock, cuts and or other casualty
hazards. This product must be installed in accordance with
the applicable installation code by a qualified electrician
or a person familiar with the construction and operation
of the product and the hazards involved. Cooper Lighting
Solutions assumes no responsibility for claims brought
about by improper or careless installation or handling of
this product.
WARNING
Edges May Cut. Handle with care.
Installation –
1. Turn Power off. Remove lens and channel cover as shown
in Fixture Installation instructions.
2. Install the sensor control module with provided hardware at
mounting location shown in Fig 1.
3. Route the wires from the sensor bracket through the K.O.
at the side and connect as per wiring diagram. see Fig 2.
4. Re-assemble the channel cover and lens.
5. Push sensor bracket onto channel and lens until it snaps
into place. Fig 3.
Figure 1
WARNING
Disconnect power and allow fixture to cool before handling
fixture. Designed for indoor installation and use only.
Damp location rated. Must not exceed 60 °C operating
environment. Do not handle while powered. Dimming
luminaires should not connect 0-10V wires from different
line powered circuits. Do not make or alter any open holes
in the wiring enclosure or electrical components during kit
installation.
NOTICE: This retrofit kit is accepted as a component of a
luminaire and has been tested in accordance with the National
Electric Code and all applicable local or state codes.
BLACK (LINE) BLACK
L
BLACK
(NEUTRAL)
WHITE
LED DRIVER
N
BLACK
WHITE
GREEN
Secure to driver housing
With grounding screw
Figure 2
Figure 3
Metalux
PURPLE 0-10V +
PINK 0-10V -
WHITE (DIM+)
BLACK
BLACK (DC 12V-)
L
RED
SENSOR
N
POWER SUPPLY
RED
GROUND
LED LOAD
PIR SENSOR
