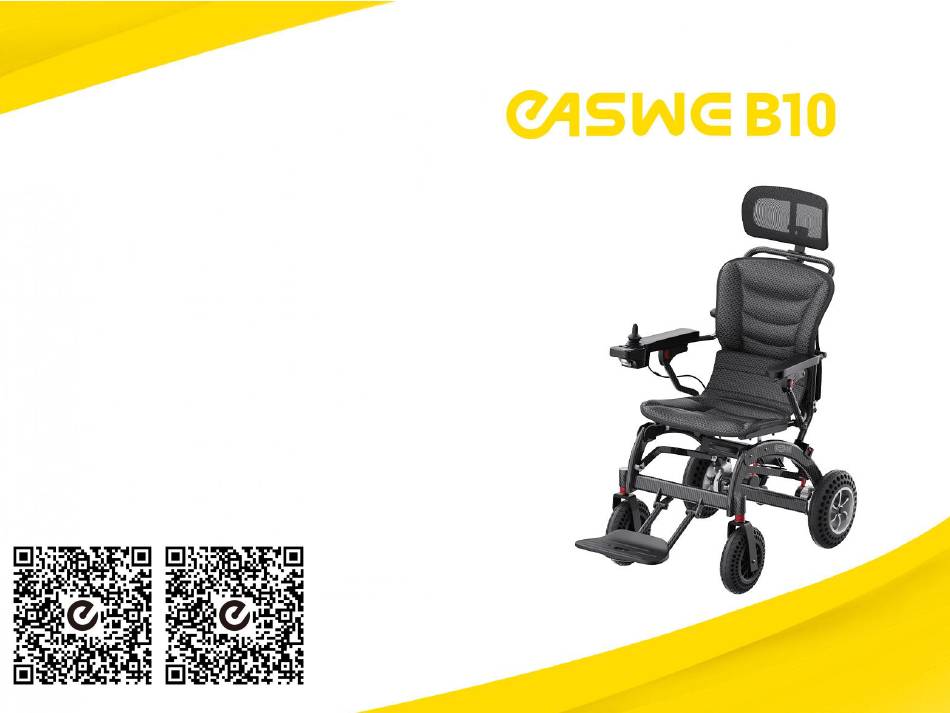

  • Page 1 Electric Wheelchair User Manual Other language versions. Video guidance.

  • Page 2: Unfolding The Wheelchair

    Insert Anti-tip Rear Wheels Wheelchair Unfolding Steps Insert the Anti-tip Rear Wheels into the pipeline under the motor, align 1.Wheelchair Folding Status the hole of the Anti-tip Rear Wheels with the hole of the pipeline, then reattach the buckle to the aligned hole. 2.Unfolding the Wheelchair Before using the wheelchair, remember to install the Anti-tip Rear Wheels To unfold the wheelchair, lift the push handle upward while simultaneously...

  • Page 3: Folding The Wheelchair

    2. Press the red button on Armrest , rotate the Armrest on both sides to the Wheelchair Folding Steps upward direction by 45 degrees to operate. 1. Unlocking Mechanism Operation Open the safety buckles on the left and right sides of the frame first. 3.Gently hold the seat cushion frame or footrest with your left hand, and hold the Backrest frame with your right hand, and force both hands inward at the same time.

  • Page 4: Connection Plug

    1.2 Two Charging Methods Controller and Connection Plug Battery charging Connection Plug Upon receiving the wheelchair, align the two red terminals of the battery plug and press firmly to secure them. Controller charging Two Charging Methods 1.1 Remove the Battery Press the small red button on the right side of the battery case, and simultaneously pull the handle forward to remove the battery.

  • Page 5: Adjustable Headrest

    1.4 Left & Right Switchable controller Wheelchair some functions Loosen the screws under the armrest with one hand and hold the controller with the other until the controller can be removed forward. 1.1 Open the Armrest Press the red circular button and lift the armrest upwards. 1.2 Wheelchair standing state After installing the anti-tip wheels (installation method is in the fourth point of the Wheelchair Unfolding Steps), the wheelchair can stand up...

  • Page 6: Manual Mode

    Controller Button Layout Switching Motor Modes Manual Mode Turn off the power of the wheelchair controller for manual mode, allowing the wheelchair to be pushed manually.Then, push the red buttons on both motors downward. Electric Mode or electric mode, turn on the electric switch of the control Then, push the red buttons on both motors upward.
  • Page 7 Main structure and composition 1. 360 Joystick Controller with LCD Display Provides 360-degree precise control of direction，5-Speed Adjustable , with real-time battery and speed display. 2. Two 12Ah Detachable Lithium Batteries It is equipped with two 12AH Lithium batteries for longer travel distances and consistent power throughout the day.

  • Page 8: Technical Specifications

    Key Points Technical Specifications Failing to follow these instructions may result in damage to the electric Electric Wheelchair Specification Chart wheelchair or severe injury. Pre-Operation Practice Motor:200W Brushless*2 Armrest Height: 10in 1. Choose a spacious area such as a park and find an assistant to help you practice until you are confident enough to operate the chair on your own.
  • Page 9 As shown-The joystick is not Please contact after-sales Controller Common Fault Description in the middle position and personnel. the alarm is turned on When the controller fails, the displays the fault code, the Warm Reminder triangular warning light flashes, and the buzzer prompts: 1.

  • Page 10: Safety Precautions And Warnings

    adjusting the backrest randomly to ensure posture stability h. At the same time, please do not step on the pedal to get and safety. on and off the car, and do not put your foot on the closed 3. Make sure the user wears the seat belt properly to enhance footrest.

  • Page 11: Maintenance And Warranty

    12. Slow down when descending slopes; braking downhill takes 18) Turn off power immediately if you experience sudden longer. movement, uncontrolled steering, or brake failure. 13. Stabilize the wheelchair before getting on or off a slope. 19) Precaution for Brake Failure or Unintended Movement: Avoid 14.
