- Page 1 10BASE-T1S Media Gateway User Manual CHANGES Date Description Created By Review By 28.12.2024 Initial release 09.02.2024 First draft...
-
Page 2: Table Of Contents
10BASE-T1S Media Gateway – User Manual Contents About ............................... 4 Introduction ............................. 4 Features ............................5 Technical Specification ........................6 Device Description ........................... 7 Overview ..........................7 Block Diagram ........................7 Power ............................. 7 Connectors ..........................8 5.4.1 D-SUB ..........................8 5.4.2... - Page 3 Table 4 Switches ............................9 Table 5 Status LEDs on front panel ......................10 Table 6 Status LEDs on rear panel ......................10 Table 7 10BASE-T1S PLCA configuration description ................15 Table 8 Product Numbers ........................24 List of Figures Figure 1: 10BASE-T1S Media Gateway ....................
-
Page 4: About

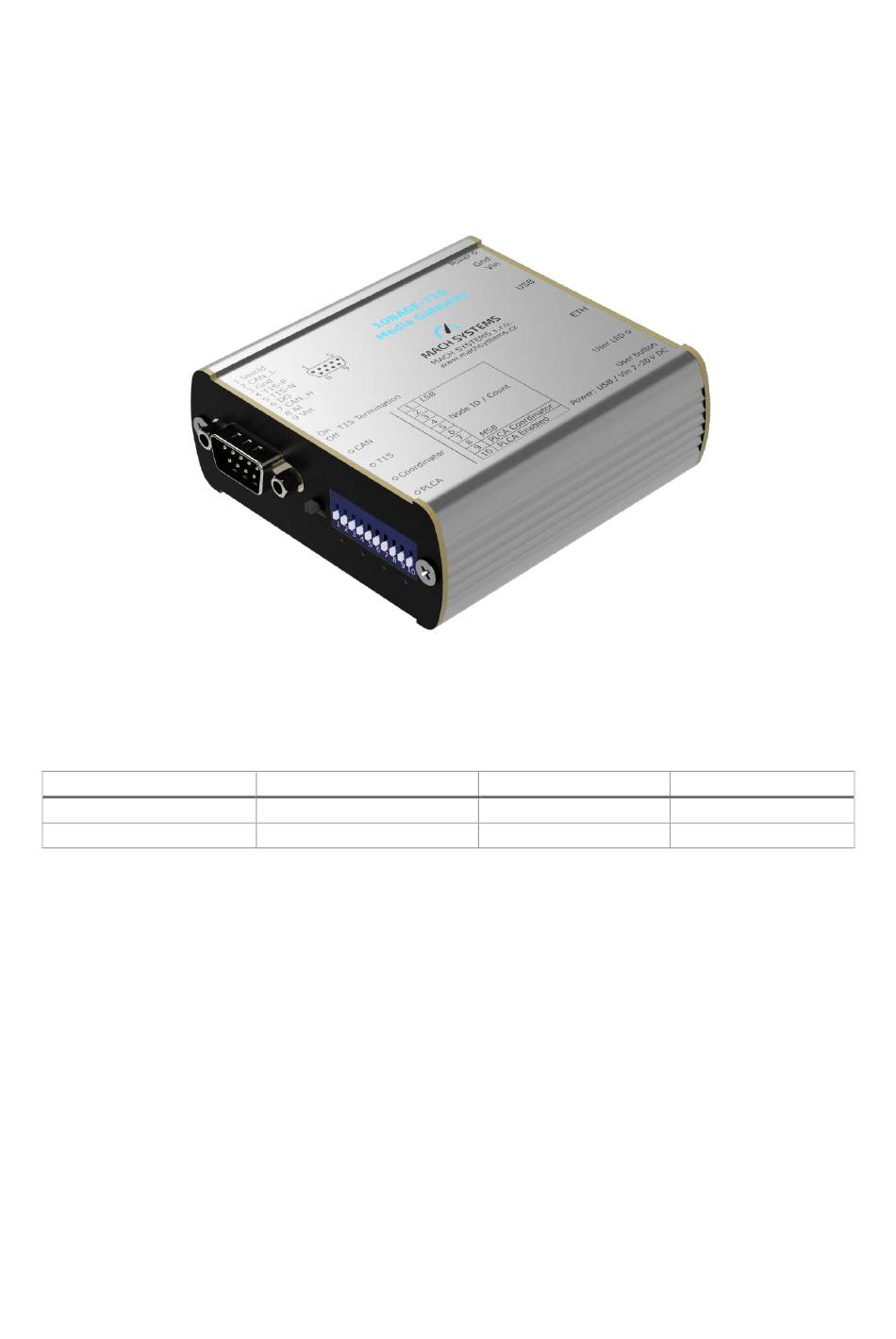

10BASE-T1S to full duplex 10/100BASE-TX, and features DSUB-9M and RJ-45 connectors. The media gateway can be used as a 10BASE-T1S - Ethernet switch (media converter) enabling a bi-directional communication between the 10BASE-T1S port and the standard Ethernet port, or as an Ethernet-CAN(/FD) gateway providing a data bridge between the 10BASE-T1S port (as well as the 100BASE-TX port) and the CAN(/FD) channel. -
Page 5: Features
10BASE-T1S Media Gateway – User Manual Figure 2: Front and rear side 3 Features • Media conversion 10BASE-T1S to 10/100BASE-TX • CAN channel with CAN FD support • Embedded web server for configuration and status information • Configuration: o CSMA / PLCA... -
Page 6: Technical Specification
10BASE-T1S Media Gateway – User Manual 4 Technical Specification General Web interface for configuration and status information Gateway Function Data between 10BASE-T1S network and CAN/CAN FD bus can be forwarded in both directions Firmware Upgradable over web Communication channels Automotive Ethernet 10BASE-T1S (IEEE 802.3cg) -
Page 7: Device Description
Figure 4: Block diagram Power The 10BASE-T1S Media Gateway can be powered over USB, or externally via a 2-pin terminal block or via the DSUB connector. The external power range is 7 - 30 V DC. All grounds are connected. -
Page 8: Connectors
Figure 6 depicts the internal power block. When the external power is connected, there is no power drawn from USB. Figure 6: Power diagram 5.4 Connectors 5.4.1 D-SUB The 9-pin DSUB9M is used for 10BASE-T1S channel, CAN(/FD), I/O and power. Name Description Shield Shielding connected to the... -
Page 9: Usb
10BASE-T1S Media Gateway – User Manual Removable mating connector p/n: 284506-2 Note: The mating connector is included in the scope of delivery. Name Description Power input positive (7 – 30 V DC) Power input negative Front view Table 3 TE power - pin assignment 5.4.3 USB... -
Page 10: Leds
10BASE-T1S Media Gateway – User Manual 5.6 LEDs The 10BASE-T1S Media Gateway contains 8 status LEDs in total. 5.6.1 Front Side 4 LEDs are on the front panel below the DIP switches. LED Name Note CAN Activity / Green on: CAN channel on... -
Page 11: User Button
10BASE-T1S Media Gateway – User Manual 5.7 User Button The push button (a tactile switch) shall be used for firmware update. If the button is held during device’s power-up, the device enters the boot mode. After that, the button can be released and the firmware can be updated –... -
Page 12: Usage
The conversion from 10BASE-T1S to 10/100BASE-TX is done through the internal Ethernet switch. Because the 10BASE-T1S network is half-duplex, access to the physical medium is managed by the CSMA/CD mechanism or the Physical Layer Collision Avoidance (PLCA). The 10BASE-T1S PHY supports multidrop mixing segments up to at least 25m with up to at least 8 PHYs –... -
Page 13: Embedded Web Server
10BASE-T1S Media Gateway – User Manual 6.4 Embedded Web Server A build-in webserver is available on the device enabling to access the device from web browser. This can be used for configuration and control of the device. This chapter describes the web interface in detail. -
Page 14: 10Base-T1S Configuration
10BASE-T1S Media Gateway – User Manual Figure 11: TCP Communication Configuration 6.4.2 10BASE-T1S Configuration Some settings are configurable by the built-in DIP switches, but the web interface can override that. The advanced setting like burst count, maximal burst time and TO timer can be changed only here or by the communication protocol. -
Page 15: Ethernet Diagnostic
Table 7 10BASE-T1S PLCA configuration description 6.4.3 Ethernet Diagnostic The Ethernet diagnostic page is divided into two tables. The first table displays 10BASE-T1S statistics, including signal quality and various error metrics. Error flags indicate that an event has occurred, and they can be reset if triggered. -
Page 16: Can Configuration
10BASE-T1S Media Gateway – User Manual The second table presents the Ethernet switch statistics. The switch inter-connects the 10BASE-T1S port, MCU, and 10/100BASE-TX port. The counters are 32-bit and will roll over when they reach their maximum value. Figure 14 Ethernet switch diagnostic 6.4.4 CAN Configuration... -
Page 17: I/O Read And Write
The message format and the way how to send the CAN message by these protocols are described in the 10BASE-T1S Media Gateway Communication Protocol Specification [1]. If no protocol is selected the CAN messages are used for device configuration. -
Page 18: Firmware Update
10BASE-T1S Media Gateway – User Manual Digital output is a low-side switch (open-drain) and can be set to 0 (shorts the pin to GND) or set to 1 (released). 6.5 Firmware Update The device comes with an embedded web bootloader. -
Page 19: System Bootloader
Device will then reboot to bootloader and user is redirected to its page. Binary file can be loaded. • Transmit a protocol message: Web bootloader can be started using MACH SYSTEMS’s communication protocol with appropriate message ID (0xFE). See Communication Protocol Specification for more information. - Page 20 10BASE-T1S Media Gateway – User Manual 1. Open the STM32CubeProgrammer application (see download link above) 2. Turn the device off 3. Enter the system bootloader as described above 4. In the STM32CubeProgrammer: a. Select the USB interface from drop-down b. Click on the refresh arrows button to see available ports c.
- Page 21 10BASE-T1S Media Gateway – User Manual 5. In order to flash a new firmware, open an .elf file by „Open file“ button and press the „Download“ button. A .bin file can be used also but the Address of 0x8000000 has to be chosen manually.
-
Page 22: Legal Information
CORRECTION OF DEFECTS, AND MACH SYSTEMS s.r.o. HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY OVER AND ABOVE THE REFUNDING OF THE PRICE PAID FOR THIS DEVICE, SINCE MACH SYSTEMS s.r.o. DOES NOT HAVE ANY INFLUENCE ON THE IMPLEMENTATIONS OF THE HIGHER-LEVEL SYSTEM, WHICH MAY BE DEFECTIVE. -
Page 23: Declaration Of Conformity
10BASE-T1S Media Gateway – User Manual 7.3 Declaration of Conformity MACH SYSTEMS s.r.o. Page 23 of 25 www.machsystems.cz info@machsystems.cz... -
Page 24: Patents, Copyrights And Trademarks
CONNECTIVITY is a registered trademark of Tyco International Services GmbH in the United States of America and other countries. Molex is a registered trademark of Molex, LLC in the United States of America and other countries. 8 References [1] “10BASE-T1S Media Gateway Communication Protocol Specification,” [Online]. Available: https://www.machsystems.cz/en/support. [2] “STM32CubeProgrammer Web Site,” [Online]. Available: https://www.st.com/en/development- tools/stm32cubeprog.html. -
Page 25: Mach Systems S.r.o. Www.machsystems.cz
10BASE-T1S Media Gateway – User Manual 10 Contact MACH SYSTEMS s.r.o. www.machsystems.cz info@machsystems.cz Czech Republic Company registration: 29413893 EU VAT number: CZ29413893 MACH SYSTEMS s.r.o. Page 25 of 25 www.machsystems.cz info@machsystems.cz...
