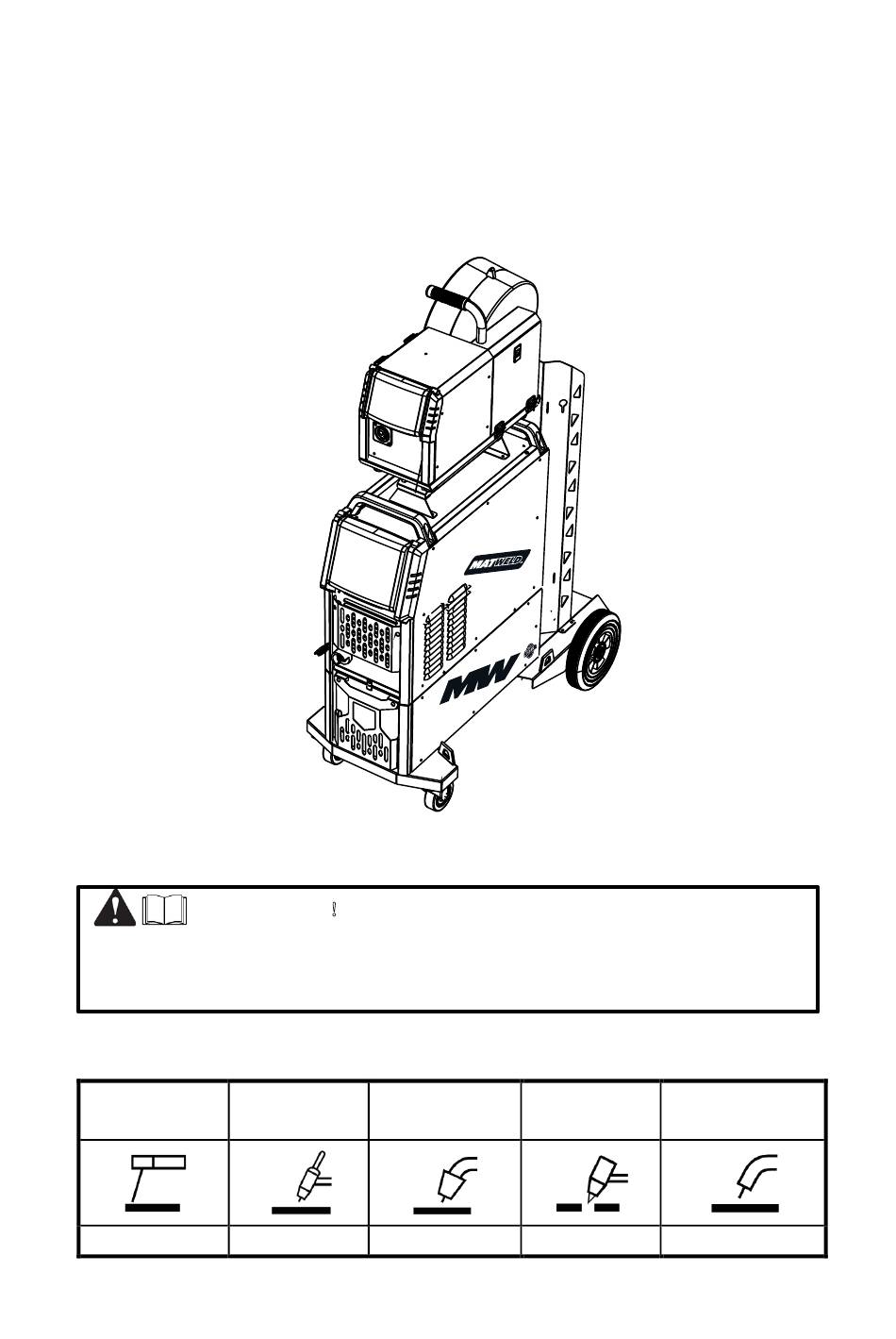

MAT9078(MIG 500F)
OPERATING MANUAL
WARNING！Read this manual carefully to ensure that you
understand the contents of the manual and follow the instructions in actual
use process. If necessary, please keep this manual properly for reference
when needed.
MMA
TIG
MIG/MAG
PLASMA
FLUX
(STICK)
(GTAW)
(GMAW)
CUTTING
CORED
√
√
√
√
Advertisement
Table of Contents
Related Manuals for Matweld MAT9078
Summary of Contents for Matweld MAT9078
- Page 1 MAT9078(MIG 500F) OPERATING MANUAL WARNING！Read this manual carefully to ensure that you understand the contents of the manual and follow the instructions in actual use process. If necessary, please keep this manual properly for reference when needed. MIG/MAG PLASMA FLUX...
-
Page 2: Table Of Contents
CONTENTS 1. Symbol ......................... 1 1.1 Normal symbol ....................1 1.2 MMA symbol ....................1 1.3 TIG symbol ...................... 2 1.4 MIG/MAG/FLUX CORED symbol ..............2 2. Safety ........................3 2.1 Before welding work ..................3 2.2 During welding work ..................3 2.3 After welding work ................... -
Page 3: Symbol
1. Symbol 1.1 Normal symbol Symbol Meaning Warning! Caution! Read the instruction manual Please wear glasses, masks, and ear protectors Please wear gloves Suitable for welding in environments with a high risk of electric shock Gas supply Protective earth (ground) Temperature indication Output current Input voltage... -
Page 4: Tig Symbol
1.3 TIG symbol Symbol Meaning TIG welding LIFT TIG 1.4 MIG/MAG/FLUX CORED symbol Symbol Meaning MIG/MAG welding. Flux cored self-shielded arc welding. Inductance regulation. Wire burn back control. Wire feed drive. MIG/MAG spot welding Page 2 of... -
Page 5: Safety
2. Safety Warning! Before starting welding, please carefully read the safety instructions, understand the hazards generated during welding, and carry out corresponding inspections and protections. Some hazards may be fatal! 2.1 Before welding work 2.1.1 Environment check The machine should work in low dust environments. Large amounts of dust may enter the machine, and if there are conductive substances in the dust, it may cause damage to the machine and even endanger personal safety. - Page 6 Please wear a mask during welding work. During welding, toxic gases or suspended particles may be generated. Although you are in a well ventilated environment and inhale only a small amount of harmful substances, long-term inhalation still poses great harm. May cause you to fall ill. 2.2.2 Noise hazards Wear ear protectors during the welding process.
-
Page 7: After Welding Work
2.3 After welding work 2.3.1 High temperature attention The workpiece and welding torch that have just been welded are in a high temperature state, and must not be touched directly, which will burn the skin. The welding torch or welding rod that has just been welded has a high temperature and should be disposed of properly, and placed on flammable objects or items with a low melting point, which may cause property loss and personal safety hazards. -
Page 8: Install
Install 3.1 Content Before starting welding or cutting work, the first step is to figure out which tools we need to use and how to make the correct connection. If the polarity is wrongly connected, it may easily damage welding or cutting tools (especially welding torches and cutting torches), and secondly, it may lead to poor welding and cutting effects. -
Page 9: Installation Steps
MIG/MAG FLUX CORED 3.3 Installation steps 3.3.1 Recommended installation procedure Make sure the machine is turned off. Check whether the power cable is good and the input voltage is correct. Access input power. If necessary, select the appropriate gas and connect the gas. If it is MIG/MAG/FLUX CORED, the wire feeder should be properly connected. - Page 10 Model Material Steel Don`t need gas DC TIG:Steel, Stainless steel Pure argon AC TIG: Aluminum 20% CO +80% argon or Pure CO Steel 25% CO +75% argon 10% CO +90% argon MIG/MAG 2% CO +98% argon or tri-mix gas Stainless steel 2% O +98% argon Aluminum...
-
Page 11: Operation
Operation 4.1 Specification Model MAT9078 Input voltage 380V 3ph MIG: 37A Input current MMA: 38A LIFT TIG: 31A MIG: 83V No-load voltage MMA: 80V LIFT TIG: 80V MIG: 30A/15.5V to 500A/39V Output voltage and current MMA: 20A/20.8V to 500A/40V LIFT TIG: 20A/10.8V to 500A/30V Duty cycle 100% @ 40℃... -
Page 12: Panel Introduction
4.2 Panel introduction 4.2.1 Power source Instruction Instruction Show the value of inductance in MIG Inching Select inductance adjustment Check gas in MIG function in MIG Lock the parameters setting on the Load job number of data setting panel Select MIG manual or MIG syn when you choose MIG mode by mode Save job number of data setting button... - Page 13 1. Adjust the value of voltage, trim and spot time in MIG 2. Adjust the value of arc force and Choose diameter of wire in MIG syn hot start in MMA 3. Turn on/off VRD function in MMA 4. Select job number 1.
-
Page 14: Functional Detail
1. Select start current adjustment or Lock the parameters setting on crater current adjustment for S4T in MIG the panel 2. Select burn back function in MIG Select 2T/4T/S4T/SPOT function Load job number of data setting in MIG 1. Adjust the value of current in MMA, GOUGING &... - Page 15 After the end of the welding, do not immediately remove the torch, the torch continues to transport a section of gas, which helps to reduce the temperature of the weldment surface, but also to avoid the high-temperature workpiece and air chemical reaction. SYN—just for MIG/MAG SYN means synergy.
-
Page 16: Welding Parameter
Spot MIG/MAG refers to discontinuous welding. The welding will stop automatically after working for a period of time. Spot MIG/MAG also exists in continuous mode, but the working time and interval time need to be set. 4.4 Welding parameter The relationship between plate thickness, electrode diameter and current. Plate thickness/mm Electrode diameter/mm Current/A... -
Page 17: Welding Procedure
200~300 2.4~4.5 300~400 3.0~6.0 400~500 4.5~8.0 4.5 Welding procedure Specify the material to be welded, the thickness, and the welding mode to be used. Refer to the third chapter, connect the power line, gas, wire or electrode and welding/cutting torch, and turn on. Select the appropriate mode on the screen. -
Page 18: Trouble Shooting
Trouble shooting 5.1 Fault code When the machine fails, you can understand the fault type through the fault code on the screen. Fault Description E01/F01 overheating E02/F02 The input voltage is over or under voltage E08/F08 Over current E09/F09 The output is short-circuited or the voltage feedback line is abnormal 5.2 Common troubles and solutions Mode Trouble... - Page 19 The workpiece is welded Reduce current. through Increase the current; Arcing difficulty Increase HOT START; Dried electrode. Increase the current; Welding rod adhesion Increase ARC FORCE. Shorten the distance between the electrode and Welding arc break the workpiece, do not pull too high. Accelerate the speed of welding;...
-
Page 20: Maintenance
Maintenance WARNING ： Non-professionals should not open the machine, it may be dangerous. Before any maintenance operation, please disconnect the power first. 6.1 Exploded Views Part Name Part Name All details shown in P2 Wheel All details shown in P3 Drawer Feeding Set Support Foot Rear Wheel Support... - Page 21 Part Name Part Name Inductance Top Cover Hall Sensor Rear Cover Angle Iron A Transformer Left Cover Transformer Support Decorative Strip B Angle Iron B Front Cover Angle Iron C Front Decorative Strip B Angle Iron D Quick Connector Bridge Decorative Strip C Temperature Protector Panel...
- Page 22 Power Cable Absorb PCB Air Switch Bracket Rectifier Tube Switch Fan Bracket Aviation Plug With Cable A Top Handle Main Transformer Bottom Handle Beam Inductance Part Name Part Name Left Door For Feeding Set Angle Iron G Cable Sheath Panel Shield Rubber Sleeve Lock Wire Axis Bracket...
-
Page 23: Maintenance Guide
Transparent Cover B Snail Shell Plastic Decorative Strip D Aviation Plug With Cable B Wire Feeder Set Display PCB Quick Connector Top Cover For Feeding Set Wire Feeder Insulation Knob Rear Cover For Feeding Set Decorative Strip D Wire Feeder Front Cover For Feeding Set Air Fitting Welding Gun Joint... -
Page 24: Accessory
Accessory Accessory Specification Quantity Power cable Electrode holder set Earth clamp set MIG torch Regulator Gas hose Controlling cable Page 22 of...
