Owner's Manual

VX-120 & VX-200

Electric Motors

5.22.2025

VX120/200-M-REV2

Table of Contents

Need help?

Do you have a question about the VX-120 and is the answer not in the manual?

Questions and answers

Summary of Contents for VIPowER VX-120

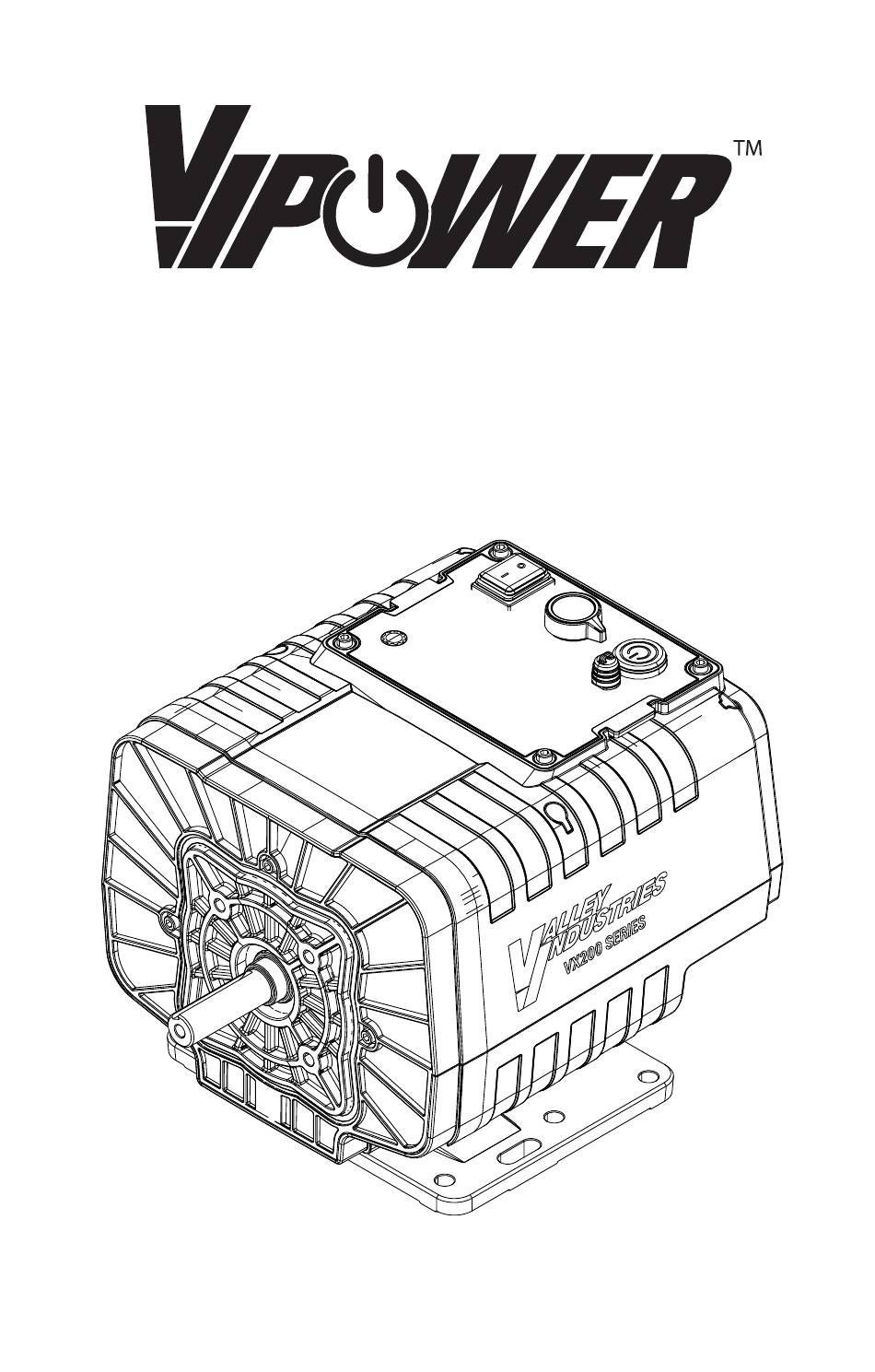

Page 1 Owner’s Manual VX-120 & VX-200 Electric Motors 5.22.2025 VX120/200-M-REV2...
Page 2: Table Of Contents
Table of Contents Introduction & Safety Messages ....3 Important Safety Information ..... 4 Motor Specifications &...
Page 3: Introduction & Safety Messages
Introduction Thank you for purchasing a VIPower™ electric motor. We want to help you to get the best results from your new electric motor and to operate it safely. This manual contains information on how to do that; please read it carefully before operating.
Page 4: Important Safety Information
• Always perform a pre-operation inspection before each operation and correct any problems. • Use only VIPower™ 56V DC battery packs, battery charger and power cables to power on your electric motor. • Do not place objects on the top of electric motor even if it is turned off.
Page 5: Motor Specifications & Components
Motor Specifications General Model # VX-120 VX-200 Length, Width, Height 13.1” x 9.86” x 9.3” 13.1” x 9.86” x 9.3” 333mm × 250.5mm × 236mm 333mm × 250.5mm × 236mm Weight (lbs) 24.7 31.7 Cooling System Forced Air Forced Air Continuous Rated Power 3.4HP (2.5kW)
Page 6 Machine Component ID Description Function Secure power unit to suitable base using assortment of mounting Mounting Base holes. Power Connection 56V DC power cable inlet connection. Accessory Input for accessory-related to motor control. Communication Port Fresh Air-Intake Cooling air enters power unit in this area. Do not block this area. Drive Shaft Attach implements to the drive shaft.
Page 7: Unpacking
Unpacking Here is what’s included with your VIPower™ electric motor: VX-120 or VX-200 Electric Motor Safety Key Drive Shaft Key The safety key and drive shaft key are pre-installed on the electric motor. If the keys aren’t on the electric motor, check to see if they...
Page 8 Installation to Surface & Pump Here are the proper installation steps for your VIPower™ electric motor to a surface and pump. 1. Installing to Surface With four 5-16” bolts, mount electric motor to surface of equipment. NOT INCLUDED 5/16” bolts not included. Recommend 5/16”...
Page 9: Installation & Disconnecting
Disconnecting Battery Pack Here are the proper steps for disconnecting power cable connector between your VIPower™ electric motor and battery pack. 1. Disconnecting Power Cable Connector From Motor Turn the winged connector plug clockwise by a quarter turn and then pull out from motor port.
Page 10: Control Panel Display
Control Panel Display Here is an overview of the VIPower™ electric motor control panel display. Review and understand before operating. 1. Safety Key (Master On/Off) • Can only be inserted for the operation of electric motor. • When removed, electric motor will immediately stop running and battery pack shuts down.
Page 11 Control Panel Display (continued) 3. Speed Control Knob • Control speed for the electric motor (600-3600 RPMs). • When the speed control knob has been rotated to the position, it will indicate that the speed is at a minimum 600 RPMs. •...
Page 12 Control Panel Display (continued) 7. Status Indicator Light • Used to indicate the operating status of the electric motor. • Red = Electric motor stops running when a fault occurs. • Yellow = Battery pack is normal, but motor isn’t running. •...
Page 13: Pre-Operation
Pre-Operation Before operating your VIPower™ electric motor, it is very important to take a few moments before you operate the electric motor to check its condition. Be sure to take care of any problem you find before operating. DANGER Improperly maintaining this electric motor, or failure to correct a problem before operation, can cause a malfunction which you can be seriously hurt or killed.
Page 14: Operation
Operation 1. Starting the Electric Motor 1. Make sure the SAFETY KEY is inserted in control panel. 2. Make sure the START/STOP switch is in the STOP ( O ) position. 3. Press the POWER button. a. POWER button will illuminate green when powered on. 4.
Page 15: Maintenance & Handling
Maintenance & Handling Transporting • Make sure electric motor is turned off. • Make sure electric motor is secure. Cleaning • After use, wipe down with a moist cloth. • DO NOT use water from a garden hose or a pressure washer to spray down electric motor.
Page 16: Troubleshooting
Troubleshooting Troubleshooting is required when an error code is displayed on the digital control center screen. To troubleshoot an error code, please contact our support team at 1-800-864-1649. Error Problem Solution Code # There is one or mulitple short circuit on the MOS Contact Customer Support bridge BLDC drive MOS U phase up bridge open circuit or U...
Page 17 Troubleshooting (Continued) Error Problem Solution Code # Analog to digital converter timeout Contact Customer Support BLDC phase forced commutation timeout Contact Customer Support BLDC u phase or v phase short circuit Contact Customer Support BLDC u phase or w phase short circuit Contact Customer Support BLDC v phase or w phase short circuit Contact Customer Support...
Page 18: Additional System Components
Additional System Components (Sold Separately) 56V DC Battery Pack 56V DC Battery Charger Part# 33-103428 Part# 33-103430 Battery Rack (Holds 1 Battery) Power Cables (M x M) Part# 33-103427 (10”)* Part# 34-100024 33-103427-3 (3ft) 33-103427-6 (6ft) 33-103427-9 (9ft) 33-103427-12 (12ft) Remote Mount Panel Kit 33-103427-15 (15ft) *Used only for connecting...
Page 19: Exploded View Diagram
Exploded View Diagram Name Description VX-120/VX-200 Motor 33-103435 Safety Key, Magnetic, VX Motors 33-103436 Weatherproof Plug, Switch Signal 33-103437 Weatherproof Plug, Control Signal 33-200228 Keystock, 3/16” x 3/16” x 1.5”, Undersized...
Page 20: Manufacturer Warranty
Please refer to the most current warranty terms available at the time of purchase. To activate your 3-year warranty and streamline any future support, please scan the QR code below or visit: www.valleyind.com/vipower-warranty-registration. Please have your purchase receipt handy during registration.

This manual is also suitable for:

Vx-200
