Summary of Contents for Chainway MC51

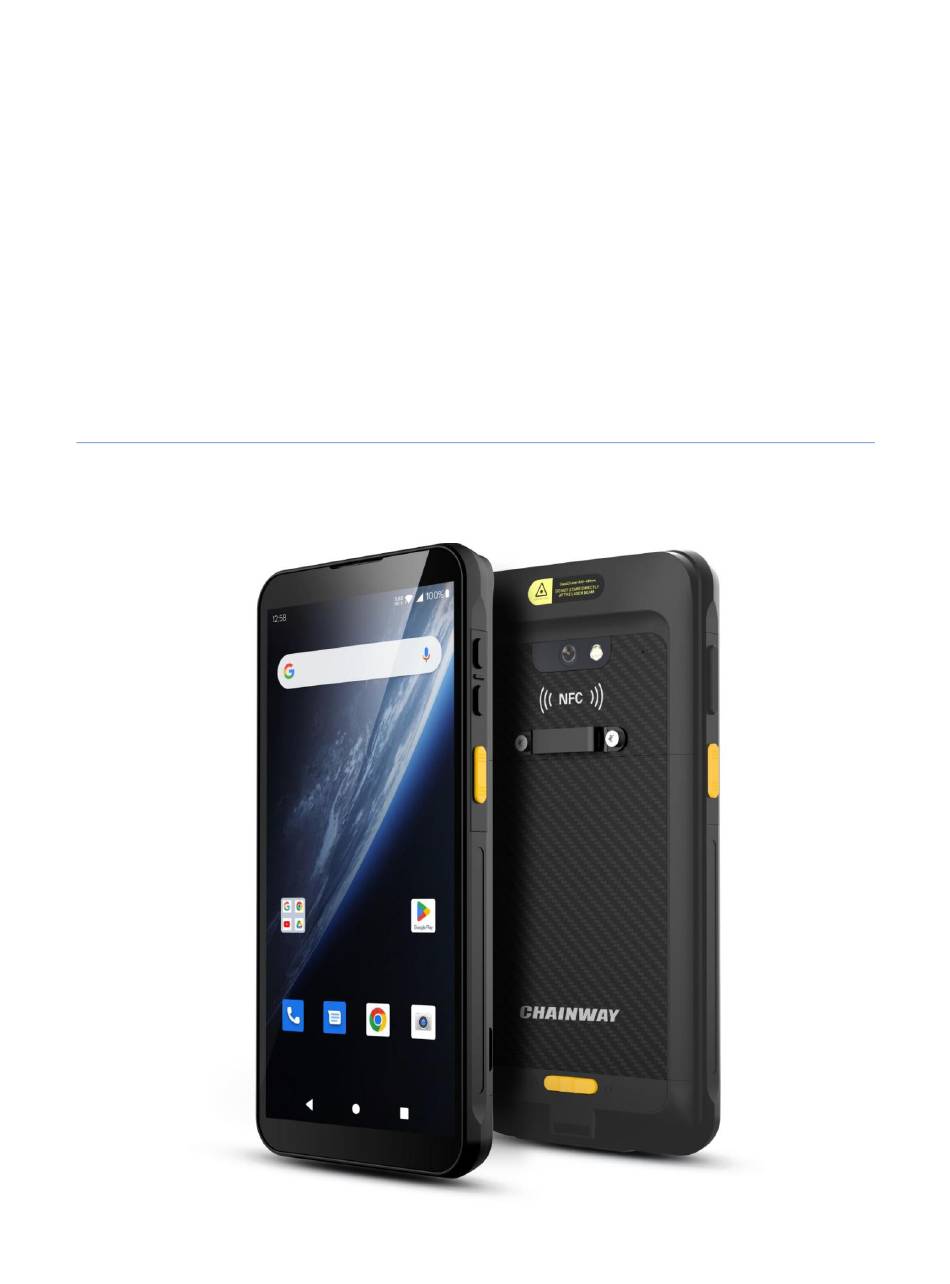

- Page 1 ShenZhen Chainway Information Technology Co., Ltd Mobile Data Terminal MC51 User Manual...
-
Page 2: Table Of Contents
Content Content ....................1 Statement ....................3 Chapter 1 Product intro ................. 5 Intro ..................5 Precaution before using battery ..........6 Notes ..................7 Chapter 2 Installation instructions ............8 2.1 Appearance ................. 8 2.2 Install Micro SD and SIM cards ..........9 2.3 Battery charge ................ - Page 3 6.5 Sensor ..................23 6.6 Keyboard ................... 24 6.8 Network..................25 6.8 Keyboard emulator ..............26 Chapter 7 Device characteristic ............28...
-
Page 4: Statement
(licensed program). Except as noted below, such license may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent of Chainway. No right to copy a licensed program in whole or in part is granted, except as permitted under copyright law. - Page 5 Chainway products.
-
Page 6: Chapter 1 Product Intro
HD display delivers crystal-clear visibility for every task, while advanced 5G and Wi-Fi 6E enable fast, reliable data transmission. Built for long-term stability, the MC51 comes with over five years of guaranteed device supply and technical support, making it the... -
Page 7: Precaution Before Using Battery
1.2 Precaution before using battery Do not leave battery unused for long time, no matter it is in device or inventory. If battery has been used for 6 months already, it should be check for charging function or it should be disposed correctly. -
Page 8: Notes
1.3 Notes Note: Using the incorrect type battery has danger of explosion. Please dispose the used battery according to instructions. Note: Due to the used enclosure material, the product shall only be connected to a USB Interface of version 2.0 or higher. The connection to so called power USB is prohibited. -
Page 9: Chapter 2 Installation Instructions
Chapter 2 Installation instructions 2.1 Appearance Standard version: UHF versions: (Optional ones):... -
Page 10: Install Micro Sd And Sim Cards
2.2 Install Micro SD and SIM cards The cards sockets are showing as follows:... -
Page 12: Battery Charge
2.3 Battery charge By using USB Type-C contact, the original adaptor should be used for charging the device. Make sure not to use other adaptors to charge the device. -
Page 13: Buttons And Function Area Display
2.4 Buttons and function area display The device is divided into five side buttons on the button. There is a two-dimensional scanning head on the top of the body, a high- definition camera and a flash light on the rear of the body, and an NFC recognition area is below the camera. -
Page 14: Chapter 3 Call Function
Chapter 3 Call function 3.1 Calling numbers 1. Click icon 2. Click number key to input phone numbers. 3. Click icon to call. 4. Click icon to end call. 3.2 Contacts 1. Click contacts to open contacts list. 2. Click icon to add new contacts. -
Page 15: Chapter 4 Barcode Reader-Writer
Chapter 4 Barcode reader-writer 1. In App Center, to open 2D barcode scan test. 2. Press “SCAN” button or click scan key to start scanning, the parameter “Auto interval” can be adjusted. Caution: Please scan codes in correct way otherwise the scanning will be failed. - Page 16 Max. radiant power: 0.6mW Wave length: 655nM IEC 60825-1 (Ed.2.0). 21CFR 1040.10 and 1040.11 standard.
-
Page 17: Chapter 5 Rfid Reader
Chapter 5 RFID reader 5.1 NFC Click App Center, open “NFC” to read and write tag information. -
Page 18: Uhf
5.2 UHF (Optional) Click App Center, open “UHF” to read and write tag information. -
Page 19: Chapter 6 Other Functions
Chapter 6 Other functions 6.1 PING tool 1. Open “PING” in App Center. 2. Setup PING parameter and select external/internal address. -
Page 21: Bluetooth
6.2 Bluetooth 1. Open “BT Printer” in App Center. 2. In the list of detected devices, click the device that you want to pair. 3. Select printer and click “Print” to start printing contents. -
Page 22: Gps
6.3 GPS 1. Click “GPS” in App Center to open GPS test. 2. Setup GPS parameters to access GPS information. -
Page 23: Volume Setup
6.4 Volume setup 1. Click “Volume” in App Center. 2. Setup volume by requirements. -
Page 24: Sensor
6.5 Sensor 1. Click “Sensor” in App Center. 2. Setup the sensor by requirements. -
Page 25: Keyboard
6.6 Keyboard 1. Click “Keyboard” in App Center. 2. Setup and test the main value of the device. -
Page 26: Network
6.8 Network 1. Click “Network” in App Center. 2. Test WIFI/Mobile signal by requirements. -
Page 27: Keyboard Emulator
6.8 Keyboard emulator The keyboard emulator can be used in multiple operating background and output formats directly. And it includes Prefix/Suffix/Enter/TAB. Please check Keyboard emulator manual for more details. Note: For each model, keycode of side button would be different, user needs to use keyboard in appcenter to check keycode and bind in Barcode2D. -
Page 29: Chapter 7 Device Characteristic
Chapter 7 Device characteristic Physical characteristics Size 161.0 x 77.8 x 15.5mm / 6.34 x 3.06 x 0.61in. Weight 297g / 10.48oz. (device with battery) Keypad Power key, 2 scan keys, volume (+/-) keys Display 6-inch high definition display (18:9), 1440 x 720 Touch panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported... - Page 30 User environment Operating -20℃ to 50℃ temp. Storage Temp. 40℃ to 70℃ Humidity 5%RH - 95%RH non condensing Sealing IP65, IEC sealing standard Drop Multiple 1.5m / 4.92ft. drops (at least 28 times) to specification the concrete across the operating temperature range Tumble 1000 x 0.5m / 1.64ft.
- Page 31 Bluetooth Bluetooth 5.1 Data collection Barcode Zebra: SE4710; Honeywell: N6603 scanning Camera Rear: 16MP Autofocus with flash Front: 5MP RFID NFC 13.56Mhz Developing Environment Chainway software develop kit Language Java Develop Eclipse/Android Studio...
