GKOLED LED POST TOP LIGHT Installation Manual

PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
- To prevent personal injury or product damage only licensed electricians should install.
- To avoid electric shock or component damage disconnect power before attempting installation or servicing.
- This product must be installed in accordance with the national electric code (NEC) and all applicable federal, state and local electric codes and safety standards.
- Disconnect product and allow cooling prior to servicing.
- Any alteration or modification of this product is expressly forbidden as it may cause serious personal injury, death, property damage and/or product malfunction.
- To prevent product malfunction and/or electrical shock this product must be properly grounded.
- Suitable for operation in ambient temperatures ranging from -40°c to 40°c.
- This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product
and the hazards involved.
- This product is not available for several special environments, such as places with corrosive gas liquids or high pressure water vapor.

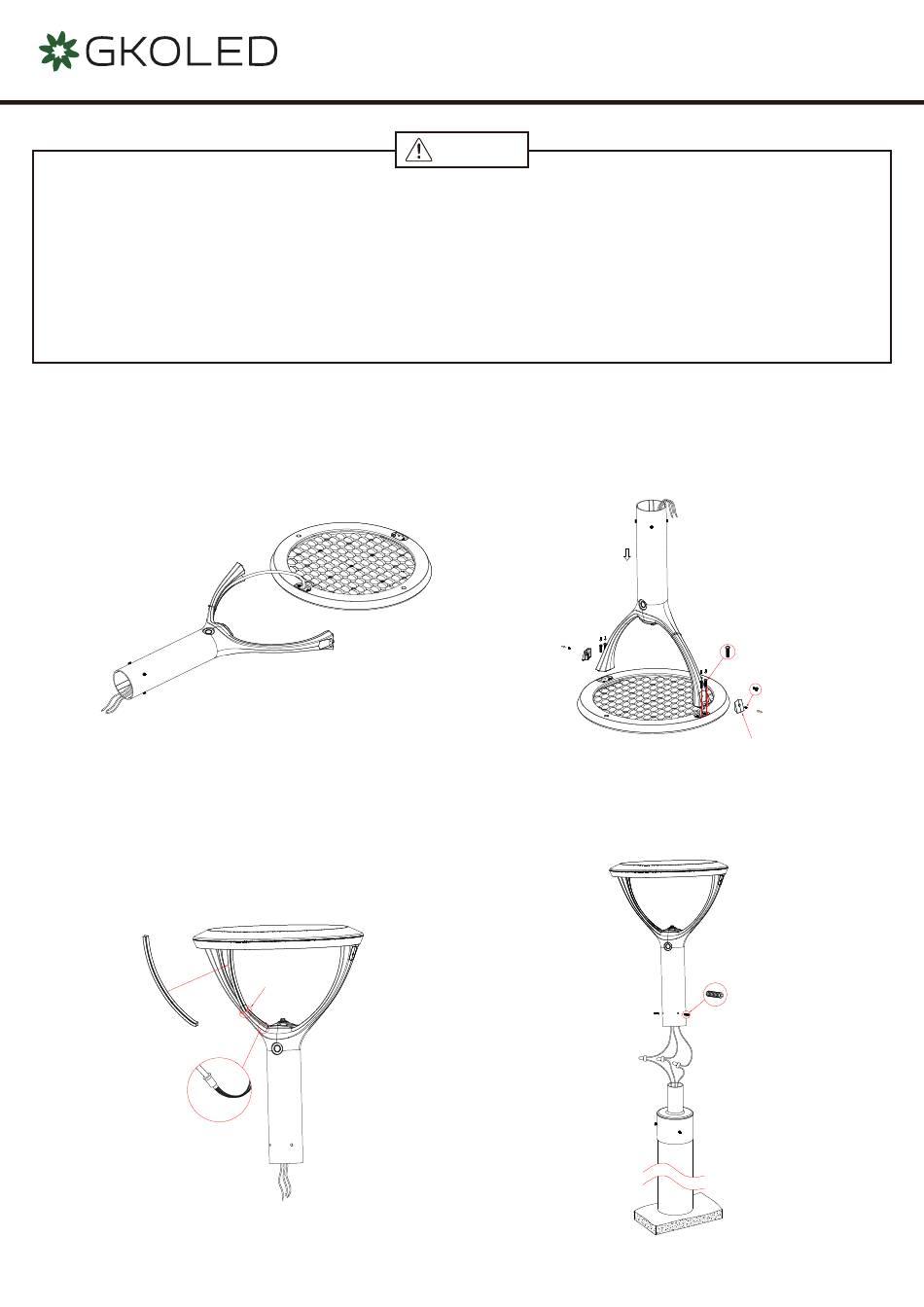

Installation Guide
Step 1: Take out the lamp body together with the support arm from the
packaging box at the same time. (Note: The lamp body and the
support arm are connected by a cable. Pay attention to protecting
the cable from being pulled).
Step 3: Use scissors to cut the anti-pull cable tie, take out the silicone strip
of the wire slot, tidy up the cables and rubber plugs. Pay attention
to the completely covering the groove of the support arm with the
silicone strip of the wire slot and make sure that the power cord is
not exposed. Reassemble the silicone strip of the wire slot.
Wire Trough
Silicone Strip
Cable wire plug
LED POST TOP LIGHT
®
Anti-pull tie
WARNING
Step 2: Assemble the support arm with the lamp body and screw with 4
pcs of PM5-20 screws; assemble the side cover and tighten the
2 pcs PM3*8 screws. (Tool: Phillips screwdriver).
Step 4: Connect the mains power supply, assemble the lamp body, and
tighten 4 pcs of M8*16 set screws to complete the installation.
Installation Guide
Screw PM5*20
Screw PM3*8
Side Cover
Screw M8*16
