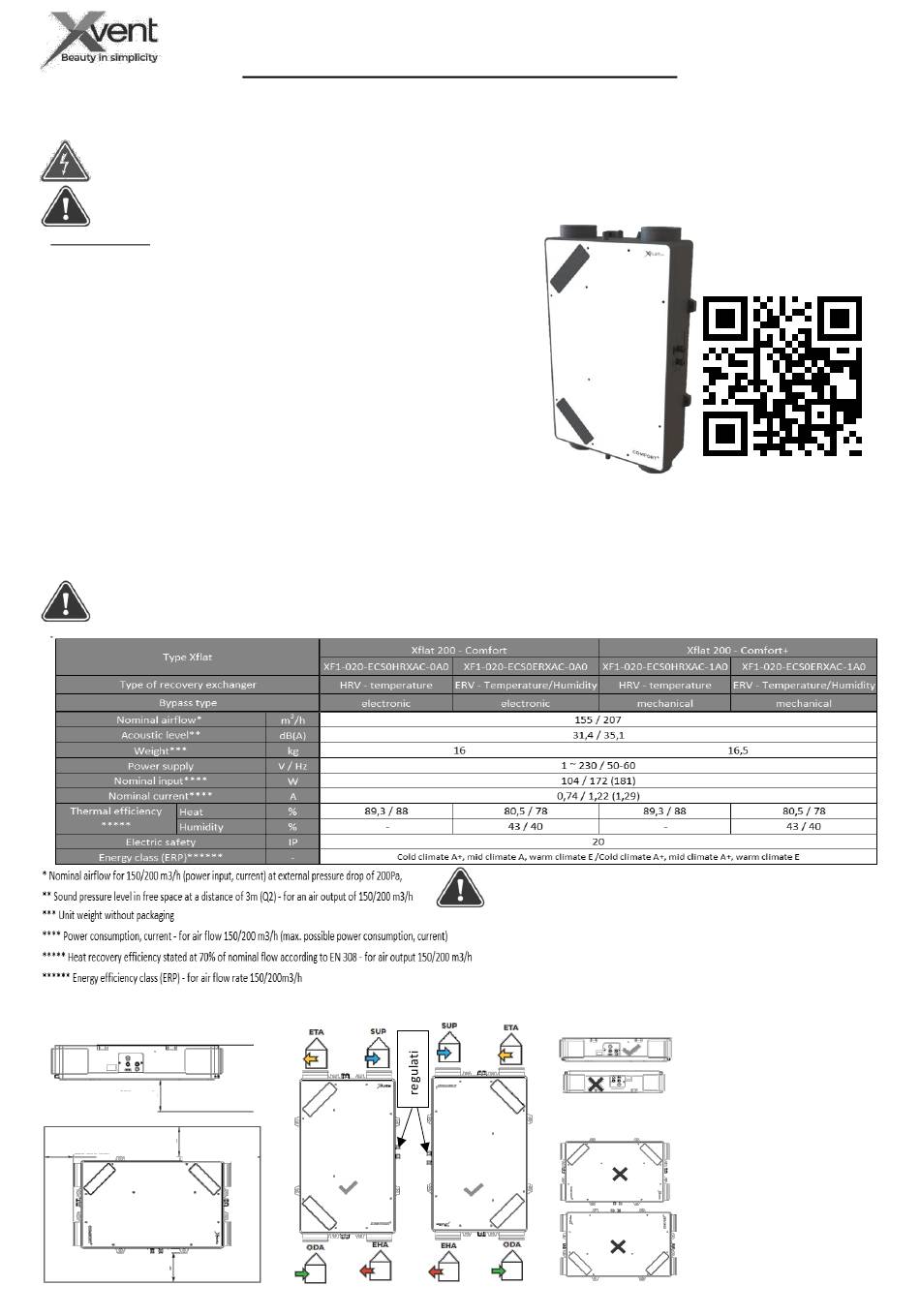

Quick Instructions guide you through quick installation of the product, but in no way replace the complete full manual. The complete operating
instructions are available in the documents on our website www.xvent.cz or can be downloaded via QR code.
Check that there are no electrical or other wiring (e.g.: gas, water, etc.) at the installation point of the unit on the wall or ceiling
indoors that could be disturbed during installation. Make sure that the mains power supply to which you want to connect the
unit meets the unit's power requirements (rating plate).
Make sure that the installation of the unit does not compromise the statics of the building and meets all legislative safety
Before starting the installation, check the possibility of connecting to the sewer system for draining condensate from the unit.
requirements.
1) Using the unit
- The Xflat-200 unit is an air-conditioning device using ventilation technology with
heat recovery (counterflow heat recovery exchanger) and humidity (enthalpy
exchanger) with the possibility of automatic control using AQS air quality sensors
(accessory) or permanent ventilation – manual mode. The unit has an intermittent
ventilation mode - BOOOST with use, for example: in the toilet, in the bathroom.
The unit control also allows remote control ON/OFF using an external EXT1
contact, control via a superior BMS system (Modbus RTU protocol) or even control
via a web application (Wifi module). The Xflat unit also allows the function of fan
distribution for use, for example: in buildings with a furnace - fireplaces. The air
output, BOOST mode run time and fan distribution are separately adjustable in the
customer menu. The design of the unit allows, after removing the lid, to rotate any
neck by 90° - the Multiflex system.
- The unit can be used in areas with a maximum requirement for a nominal flow rate of approx. 200 m3/h (depending on the type) at a
maximum disposition pressure of 200Pa.
- The unit is only intended for horizontal or vertical wall and ceiling installation to ensure fresh air supply and exhaust air extraction. The
unit allows switching between the right (factory setting) and left versions in the EXT4 contact regulation. The unit is equipped with
constant flow technology (regardless of external pressure loss). The unit has swivel corners. The unit is designed for indoor covered and
dry areas with a room temperature from +5 °C to +30 °C and a maximum relative humidity of 70%.
The supply temperature of the fresh air from the outside can be in the range from -20 °C to +40 °C (applies to the preheated
version). If the supply air temperature is below -20 °C, the unit may automatically shut down to protect it from possible damage.
2) Technical parameters
- Neither the manufacturer nor the supplier is liable for damage caused by improper use of the units. The risk is borne by the user.
3) Installing the Xflat-200 unit
- Minimal installation distances
200 mm
200 mm
200 mm
200 mm
Verze 001-JUN (28.8.2024)
QUICK INSTRUCTIONS FOR USE AND
Xflat heat recovery units – 200; COMFORT, COMFORT+ control
INSTALLATION
END OF
MARK1
Installation Positions – VERTICAL ON
THE WALL
Only for
the right
version
Prohibited use of Xflat-200 drive
- The unit must not be used to extract burning, glowing substances,
flammable or explosive gases, aggressive media, liquids.
- The unit must not be installed just below the electric. socket, ele.
a box, flammable materials, for environments with an increased
occurrence or risk of explosion, flammable substances, with
increased dustiness and for environments with higher humidity,
e.g.: bathrooms, swimming pools, saunas.
HORIZONTAL TO THE
HORIZONTAL WALL
For left
MOUNT
version
only
Page 1 z 6
Poděbradská 289 53009
Pardubice-Trnová
To read the QR code, use a
smart device (mobile
phone, tablet, etc.) that is
equipped with this
technology.
The heat recovery unit must be
installed and put into operation in
CEILING
accordance with the general and
locally applicable safety
regulations, by a person with
appropriate education, experience
and knowledge of the relevant
regulations, standards and
possible risks and possible hazards,
or by an appropriately trained
service technician. Failure to
follow the installation procedure
may result in damage to the unit,
malfunction, possible harm to the
user's health and property.
