Summary of Contents for Acustek GEM-ATOM

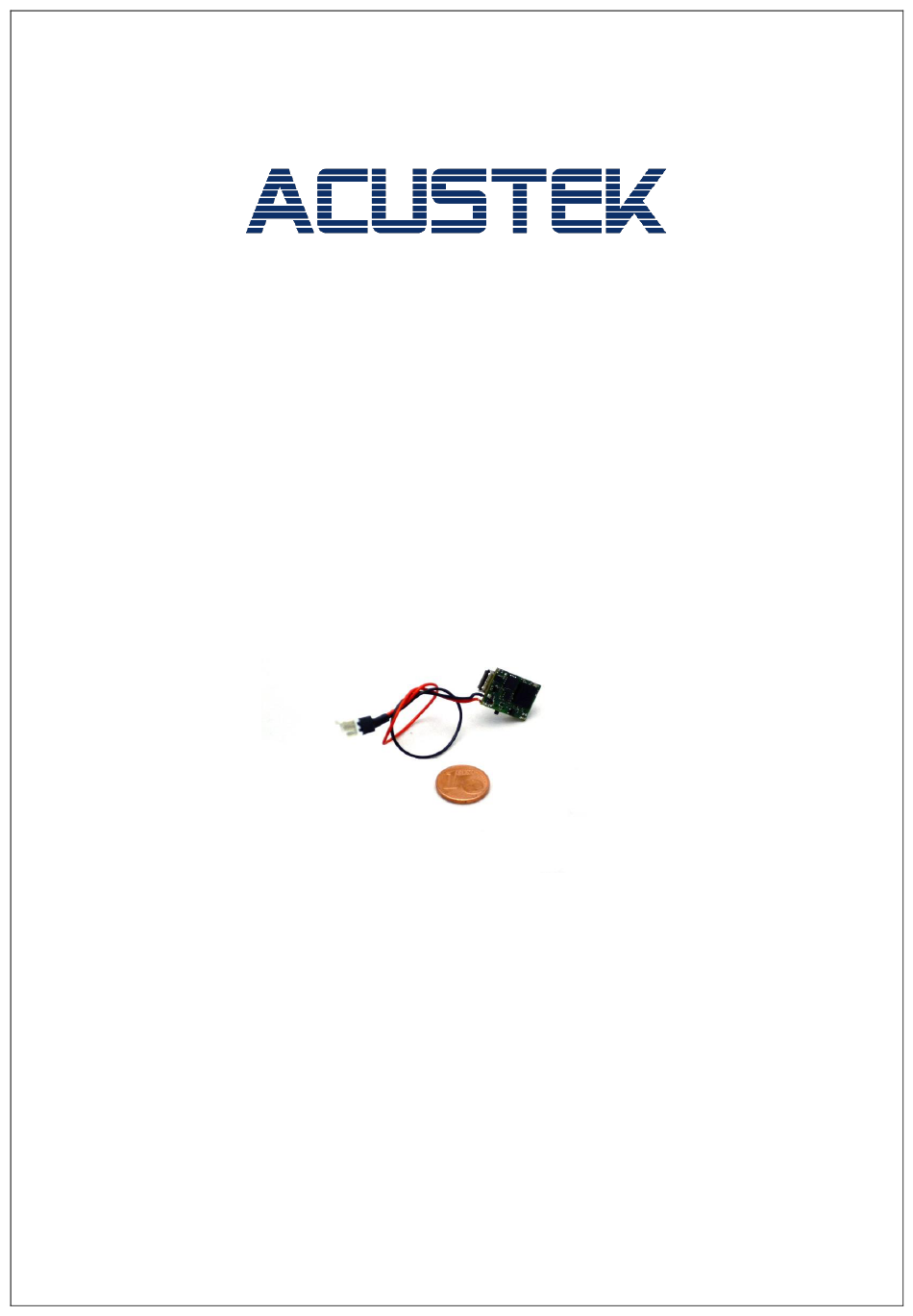

- Page 1 GEM-ATOM SMALLEST PRO LONG LIFE AUDIO RECORDER Operator Manual...
-
Page 2: Table Of Contents
DIGITAL SIGNATURE ..............19 SAVING SETTINGS ..............21 EXPORT OF AUDIO FILES ............21 FREQUENTLY ASKED QUESTIONS ........22 ACUSTEK LIMITED REPAIR AND WARRANTY POLICY ..23 SUPPORT AND CONDITIONS OF SALE ........25 Ver 2.00 GEM-ATOM Operator Manual Rev 2... -
Page 3: General Description
The GEM-ATOM recorder is equipped with a very high sensitive and wide dynamic range microphone capable of recording conversations at long distance of up to 15 meters. -
Page 4: Specifications
Scheduled Recording selectable 7 day/time period or calendar Operating mode select slide switch Exporting format WAV format by using included software Voice activated recording (VOX) External Microphone Support Digital Signature Ver 2.00 GEM-ATOM Operator Manual Rev 2 2017 Page | 4... -
Page 5: Device Body And Controls
Important! Please, note the correct position of MicroSD card as shown on the picture. Do not try to insert the card any other way as it may damage the socket or make the card stuck inside the socket. Ver 2.00 GEM-ATOM Operator Manual Rev 2 2017 Page | 5... -
Page 6: Battery Life
2.3mA 22kHz 2.7mA 2.1mA 2.6mA 44kHz 4.6mA 3.1mA Remarks: for enhanced audio recording the power consumption is increased by 10-15%. Power consumption in stand-by voice activation mode is 1,0mA. Ver 2.00 GEM-ATOM Operator Manual Rev 2 2017 Page | 6... -
Page 7: Operating Instructions
Software. Note: The GEM-ATOM micro SD card contain specific data and should NOT be used in any other devices, including smartphones, digital cameras, etc. -
Page 8: Preparing A New Micro Sd Card
Do not remove or insert the card, when the recording is still in progress. The GEM-ATOM file can be accessed by inserting the SD card onto the host PC (faster for loading the records) or by connecting via USB cable. - Page 9 “Select image file”. - The software will let you select the location. Make sure you select the USB Drive that the GEM-ATOM is connected to. (as shown in the picture below) - Once you select “rcimage” and then “Open” the Record Manager will load the recordings (if any) or showing the Battery Level, Serial Number, Firmware Version and so on.
-
Page 10: Supported Memory Cards
The cards from other manufactures may have higher power consumption thus giving shorter recording times. IMPORTANT: The GEM-ATOM supports up to 128GB SD card and we highly recommend following the below instruction: For SD cards from 64GB or 128GB is... -
Page 11: Start And Stop Of The Recording
Thus for 8GB = 2 files, 16GB = 4 files, 32GB = 8 files and so on. These files will be names differently: rcimage.raw, rcimage.ra1, rcimage.ra2... etc. Ver 2.00 GEM-ATOM Operator Manual Rev 2 2017 Page | 11... -
Page 12: Configuring The Recorder
uLaw - μ-law algorithm (best compression for evidence use); ADPCM - 4-bit lossy compression; Important! Do not remove the microSD card during recording or while saving the settings. Doing so may damage the image file. Ver 2.00 GEM-ATOM Operator Manual Rev 2 2017 Page | 12... -
Page 13: Voice-Activated Settings
MIN - response to quiet sounds, high sensitivity. Note: Even if you set a low threshold activation level, the recorder may not turn on the recording in response to very quiet sounds. Ver 2.00 GEM-ATOM Operator Manual Rev 2 2017 Page | 13... - Page 14 When AGC function is disabled, this selected volume is fixed: MAX - maximum sensitivity, i.e. recording from a distance; MIN - the minimum sensitivity, recording from a short distance. Ver 2.00 GEM-ATOM Operator Manual Rev 2 2017 Page | 14...
-
Page 15: Scheduled Recording
(see above left picture) and the Start and Stop time, the settings are saved on the internal SD card and the GEM-ATOM will record accordingly. Once sure about the record settings, click on “Add event”, the event line will be listed in the below box (see above right picture). - Page 16 The recorder will turn on the recording at the defined time. Leave the recorder OFF. IMPORTANT: in order to save and therefore activate the configurations, you must click on “OK”. Ver 2.00 GEM-ATOM Operator Manual Rev 2 2017 Page | 16...
-
Page 17: Other Settings
Password protected access: Access to the recordings and settings will only be possible upon entering a password. If the password is lost, access to the recordings will not be possible, memory and settings will need to be formatted. Ver 2.00 GEM-ATOM Operator Manual Rev 2 2017 Page | 17... -
Page 18: Password Protection And Encryption Of Files
PASSWORD PROTECTION AND ENCRYPTION OF FILES For GEM-ATOM (as also per all our audio and video surveillance devices), we have several levels of security features which can be enabled/disabled at user discretion. When the recorder is password protected, all the records are encrypted by 128-bit AES encryption and can’t be open... -
Page 19: Digital Signature
The Digital Signature is now a feature automatically available in every audio and video recorders developed and manufactured by Acustek. The GEM-ATOM has it’s own SHA-256 hardware calculation during the recording, which at the same time, makes Digital Signature in the SD card so that if there is some technical issue with battery interruption a background algorithm will prevent the failing of the Digital Signature. - Page 20 The GEM-ATOM also create a *.sig file for each record, where is saved the Digital Signature of the file. The .sig file is a text file where the user can copy/paste the text and verify the signature by using any other 3 party tools for calculating SHA-256 signature.
-
Page 21: Saving Settings
„Select directory for export". Long recordings should be split into several files. Use this option in menu "Records->Maximum size of exported file" to specify maximum size of each exported WAV file. Ver 2.00 GEM-ATOM Operator Manual Rev 2 2017 Page | 21... -
Page 22: Frequently Asked Questions
Q: Recorded sound is distorted in very loud sequences. A: Enable AGC function in recorder's settings to prevent microphone overloading by loud sounds. Ver 2.00 GEM-ATOM Operator Manual Rev 2 2017 Page | 22... -
Page 23: Acustek Limited Repair And Warranty Policy
+353 -1- 4433054 or email at info@acustek.com to obtain an RMA number. Returns will be authorized in accordance with the following policy: If it is deemed that the part should be returned, an Acustek representative will send you an RMA form. Completely fill out the RMA form, and place the form in the box with the item(s) being returned. - Page 24 RMA number, which must be clearly marked on the outside of the package. By choosing to request an RMA number from Acustek, it is implied that the customer has agreed to the terms of the Acustek RMA Policy.
-
Page 25: Support And Conditions Of Sale
Acustek manufacturing facility. SUPPORT AND CONDITIONS OF SALE If you have not purchased the GEM-ATOM audio recorder directly from ACUSTEK, please contact your local representative in the first instance. This product is guaranteed from manufacturing faults for 12 months from the date of purchase. - Page 26 ACUSTEK LTD Swords Co Dublin IRELAND Ver 2.00 GEM-ATOM Operator Manual Rev 2 2017 Page | 26...
